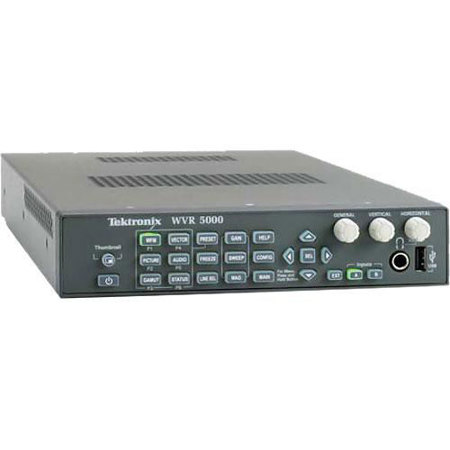

Tektronix WVR5000 HD/SD-SDI Multi-Standard Multi-Format Compact Video Waveform Rasterizer, Passive Loopthrough Inputs

1/2 Rack x 1RU x 8"

HD, SD

Embedded, AES/EBU

Waveform & Vector, Audio Bars

Basic HD & SD Monitoring

2, only one active at a time, The inputs auto detect between HD and SD signals

Passive loop through BNC, 75 Ohms compensated

800 mVp-p, +/-10%

>=25 dB from 1 MHz to 270 MHz, power on=15 dB from 1 MHz to 270 MHz, power off15 dB from 1 MHz to 1.5 GHz, power on or off(Typical values)

For HD, equivalent to 10 m of type 8281 cable

>50 dB to 300 MHz

Typically for SD, to 250 m of type 8281 cable; for HD to 100 m of type 8281 cable

Signal Format (DVI-I Output) - 1024x768, 59.94 Hz vertical rate

NTSC and PAL and tri-level sync

Passive loop through BNC, 75 Ohms compensated

20k Ohms, nominal

>40 dB to 6 MHz35 dB to 30 MHz

+/-50 ppm

At 1x gain, +/-0.5% of 700 mV full scale; at 5x gain,+/-0.2% of 700 mV full scal

1x, 5x, variable range 0.25x to >7.5x

Luminance (Y) channel +/-0.5% to 5.75 MHz Color, Difference channels (Pb, Pr) +/-0.5% to 2.75 MHz

Luminance (Y) channel +/-0.5% to 30 MHz ,Difference channels (Pb, Pr) +/-0.5% to 15 MHz

+/-0.1%

+/-0.1%

0.056 dB steps at 30 dB scale from full scale to -20 dBFS, 0.20 dB steps at 70 dB scale for signals above -20 dBFS

True peak, PPM type 1, PPM type 2, BBC PPM

Mute, clip, user-programmable silence, over

-0.5 dB (for analog), 0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to -40 dBFS sine wave, Peak Ballistic mode

1 set of 2 channels, 32 kHz, 44.1 kHz, 48 kHz, 96 kHz,192 kHz, 24 bit
BNC, 75 Ohms terminated, unbalanced, 0.2 V to 2 Vp-p
Return Loss: >30 dB relative to 75 Ohms from 0.1 to 6 MHz

12 V DC In
Power adapter accepts 100 to 240 V AC +/-10% 50/60 Hz

12 to 15 V DC nominal
10.75 to 18 V DC min-max operating

XLR 4-pin male connector
Pin 1 = V( )
Pin 4 = V(+)
Pin 2, 3: NC

22W typical, 30W max

6 amps at 12 V

4 amp internal self-resetting fuse

Reverse- and over-voltage protected to +/-30 V DC
The unit may power itself down in the presence of high transient voltages. This prevents damage to the unit and is not a failure

1.7 x 8.1 x 18.0" / 43.18 x 205.74 x 457.20mm

1.7kg / 3.75lbs
