Tektronix WVR5200 Multi-Standard Multi-Format Waveform Rasterizer
See all Tektronix items

Tektronix WVR5200 Multi-Standard Multi-Format Compact Waveform Rasterizer

SKU: TKWVR5200

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

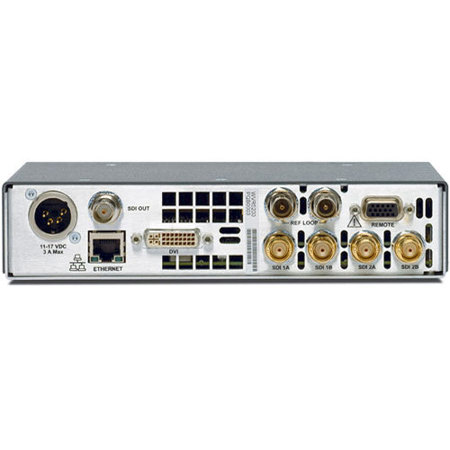

Tektronix WVR5200 Specifications

  • Form Factor

    1/2 Rack x 1RU x 8"

  • Video Formats

    3G, HD, SD

  • Audio Formats

    Embedded

  • Measurements

    Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

  • Special Functions

    Basic HD & SD Monitoring

  • Serial Digital Video: Inputs

    4 inputs Auto-detection between 3G, Dual Link, HD and SD signals (Option 3G required for 3G formats)

  • Serial Digital Video: Input Type

    BNC, internally terminated 75 Ohms

  • Serial Digital Video: Input Level

    800 mVp-p, +/-10%

  • Serial Digital Video: Input Equalization

    270 Mb/s: Up to 215 m of type 1694A cable
    1.5 Gb/s: Up to 200 m of type 1694A cable
    3 Gb/s: Up to 130 m of type 1694A cable

  • Serial Digital Video: Output

    SDI Switched Output. Selectable, active input, or test signal

  • Serial Digital Video: Return Loss

    >15 dB from 1 MHz to 1.5 GHz, power on or off10 dB from 1.5 GHz to 3 GHz, power on or off

  • Serial Digital Video: Monitor Output

    Signal Format (DVI-I Output) - 1024x768, 60 Hz vertical rate

  • External Reference: Sync Formats

    NTSC and PAL and tri-level sync

  • External Reference: Input Type

    Passive loop through BNC, 75 Ohms compensated

  • External Reference: DC Input Impedance

    20 k Ohms, nominal

  • External Reference: Return Loss

    >40 dB to 6 MHz35 dB to 30 MHz

  • External Reference: Lock Range

    +/-50 ppm

  • Vertical Measurement Accuracy

    At 1x gain, +/-0.5% of 700 mV full scale; at 5x gain, +/-0.2% of 700 mV full scale

  • Gain

    1x, 5x, variable range 0.25x to >7.5x

  • Frequency Response: SD

    Luminance (Y) channel +/-0.5% to 5.75 MHz Color, Difference channels (Pb, Pr) +/-0.5% to 2.75 MHz

  • Frequency Response: HD

    Luminance (Y) channel +/-0.5% to 30 MHz ,Difference channels (Pb, Pr) +/-0.5% to 15 MHz

  • Sweep Timing Accuracy

    +/-0.1%

  • Sweep Linearity

    +/-0.1%

  • Level meter resolution

    0.056 dB steps at 30 dB scale from full scale to -20 dBFS, 0.20 dB steps at 70 dB scale for signals above -20 dBFS

  • Meter ballistics

    True peak, PPM type 1, PPM type 2, BBC PPM, Loudness

  • Defined/programmable level detection

    Mute, clip, user-programmable silence, over

  • Level Meter Accuracy

    -0.5 dB (for analog), 0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to -40 dBFS sine wave, Peak Ballistic mode

  • Power

    12 V DC In
    Power adapter accepts 100 to 240 V AC +/-10% 50/60 Hz

  • Voltage range

    12 to 15 V DC nominal
    10.75 to 18 V DC min-max operating

  • Supply Connection

    XLR 4-pin male connector
    Pin 1 = V( )
    Pin 4 = V(+)
    Pin 2, 3: NC

  • Power Consumption

    27 W typical, 35 W max

  • Surge

    10 A at 12 V

  • Fuse Rating

    4 A, internal self-resetting fuse

  • Transient, Over&Reverse Volt Protection

    Reverse- and over-voltage protected to +/-30 V DC
    The unit may power itself down in the presence of high transient voltages. This prevents damage to the unit and is not a fault

  • Dimensions (H x W x D)

    43 x 213 x 140mm / 1.69 x 8.39 x 5.51"

  • Weight

    0.8kg / 1.76lbs

About Tektronix WVR5200

• 1RU height, Half-rack Width, Short-depth (5.5 in. or 14 cm) Instrument, Ideal for Space-constrained Environments
• 4-pin XLR DC Power Input with AC Power Adapter for both AC/DC Operation
• Tektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance Monitoring
• New Tektronix-patented Spearhead Display and Luma Qualified Vector (LQV) Display Facilitate Precise Color Adjustment for Post Production Applications (Option PROD)
• Stereoscopic 3D Video Displays for Camera Alignment and Production/Post-production Applications (Option S3D)
• Simple 3G/HD/SD Color Bar and Pathological Signal Generator (Option GEN) for Troubleshooting Signal Paths and Equipment (Note: Option 3G is required for 3G-SDI test signal generation)

Four SDI Inputs with Multiformat, Multistandard Support
• WVR5200 comes standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
• Multiple Input Mode allows monitoring of up to four SDI inputs simultaneously for multiple camera monitoring applications (Option CAM)
• Two-channel Simultaneous Monitoring (Option CAM)
• Upgradeable to include 3G-SDI (Level A and Level B) format support with the purchase of an upgrade key (Option 3G)
• 16-channel embedded AES/EBU audio simultaneous monitoring support with Multichannel Surround Sound display and flexible Lissajous display (Option AUD)
• Audio Loudness monitoring to ITU-R BS.1770-3/1771, EBU R 128 and ATSC A/85 recommendations (Option AUD and LOUD required)

Comprehensive Data Monitoring (Option DATA) helps to Quickly Resolve Difficult Content Quality and Reliability Issues
• Simultaneous CEA708/608 Closed Caption monitoring; Teletext and OP47 subtitle monitoring
• Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC and ANC TC
• ARIB STD-B35/B37/B39, TR-B22 and TR-B23 support
• ANC Data Inspector and SDI Data Analysis display helps troubleshoot ANC data and SDI data problems

Variety of Monitoring Displays
• Tektronix-patented Timing and Lightning displays makes facility and interchannel timing easy
• Waveform display of external reference (Black Burst or Tri-Level Sync)
• Black Picture and Tektronix-patented Frozen Picture Detection
• Extensive alarms, status reporting and error logging for 10,000 events simplifies error correction tasks
• Voltage and Timing Cursor for precise measurement
• User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks

Unmatched Display Versatility
• Flexible Quad Tile Display tailored to various applications needs to increase productivity
• TandemVu Display for efficient camera adjustments of luma and chroma
• Full Screen mode that maximizes display size for precise adjustments

Unmatched Usability
• 32 instrument presets for quick recall of commonly used configurations tailored to colorists, editors or operators
• Front-panel USB port enables easy transfer of presets, screenshots and error log
• Front-panel headphone port for easy monitoring of audio channels
• Intuitive menu structure and context-sensitive help
• SNMP and Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and control
• DVI-I external display output for easy connection to digital or analog XGA display
• Super lightweight and low power consumption design for mobile truck (OB van) applications

Applications
• Camera Monitoring (Camera Shading) in Mobile Trucks (OB Vans) and Production Studio Control Rooms
• Color Correction and Manipulation
• Content Editing and Special Effects
• Content Quality Control (QC) in Production and Post Production
• Field Production Setup and Troubleshooting
• Compliance Checking in Distribution and Broadcast

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Tektronix WVR5200 Multi-Standard Multi-Format Compact Waveform Rasterizer
  • Tektronix Lifetime Limited Warranty
