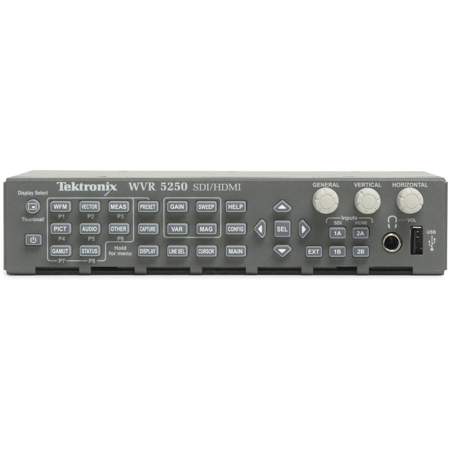

Tektronix WVR5250 SDI/HDMI Multiformat Waveform Rasterizer, 2 SDI and 2 HDMI Inputs

1/2 Rack x 1RU x 8"

3G, HD, SD HDMI

Embedded

Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut

Basic HD & SD Monitoring

2 inputs Auto-detection between 3G, Dual Link, HD and SD signals(Option 3G required for 3G formats)

BNC, internally terminated 75 Ohms

800 mVp-p, +/-10%

270 Mb/s: Up to 215 m of type 1694A cable
1.5 Gb/s: Up to 200 m of type 1694A cable
3 Gb/s: Up to 130 m of type 1694A cable

SDI Switched Output. Selectable, active input, or test signal

>15 dB from 1 MHz to 1.5 GHz, power on or off10 dB from 1.5 GHz to 3 GHz, power on or off

Signal Format (DVI-I Output) - 1024x768, 60 Hz vertical rate Picture display will be disabled while monitoring the HDCP encrypted video signal through an HDMI input

NTSC and PAL and tri-level sync

Passive loop through BNC, 75 Ohms compensated

20 k Ohms, nominal

>40 dB to 6 MHz35 dB to 30 MHz

+/-50 ppm

2 inputs Auto-format-detection

HDMI switched output with HDCP

Type A receptacle

HDMI output is encrypted while receiving the HDCP encrypted content on a selected input. The picture display and the thumb nail display on the DVI output will be disabled while receiving the HDCP encrypted content on a selected input.

At 1x gain, +/-0.5% of 700 mV full scale; at 5x gain, +/-0.2% of 700 mV full scale

1x, 5x, variable range 0.25x to >7.5x

Luminance (Y) channel +/-0.5% to 5.75 MHz Color, Difference channels (Pb, Pr) +/-0.5% to 2.75 MHz

Luminance (Y) channel +/-0.5% to 30 MHz ,Difference channels (Pb, Pr) +/-0.5% to 15 MHz

+/-0.1%

+/-0.1%

0.056 dB steps at 30 dB scale from full scale to -20 dBFS, 0.20 dB steps at 70 dB scale for signals above -20 dBFS

True peak, PPM type 1, PPM type 2, BBC PPM, Loudness

-0.5 dB (for analog), 0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to -40 dBFS sine wave, Peak Ballistic mode

12 V DC In
Power adapter accepts 100 to 240 V AC +/-10% 50/60 Hz

12 to 15 V DC nominal
10.75 to 18 V DC min-max operating

XLR 4-pin male connector
Pin 1 = V( )
Pin 4 = V(+)
Pin 2, 3: NC

27 W typical, 35 W max

10 A at 12 V

4 A, internal self-resetting fuse

Reverse- and over-voltage protected to +/-30 V DC
The unit may power itself down in the presence of high transient voltages. This prevents damage to the unit and is not a fault

43 x 213 x 140mm / 1.69 x 8.39 x 5.51"

0.8kg / 1.76lbs
