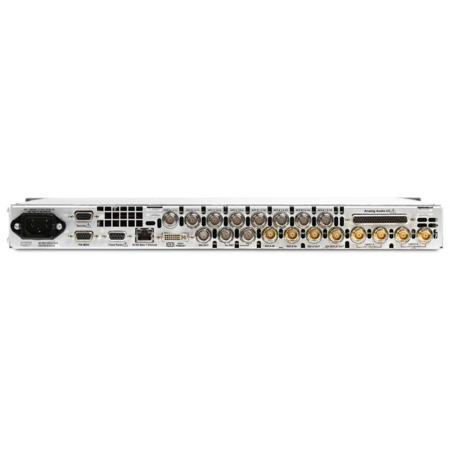

Tektronix WVR7200 Multiformat and Multistandard Waveform Rasterizer, 2 SDI Inputs - Bundle With Tektronix Analog & Digital AES/EBU Embedded Internal Option for WVR7200 Monitor

This video/audio/data monitor and analyzer all-in-one platform provides flexible options and field installable upgrades to monitor a diverse variety of video and audio formats. Support for video formats includes 3G-SDI, Dual Link, HD-SDI and composite analog. Support for audio formats includes Dolby E, Dolby Digital Plus, Dolby Digital, AES/EBU, embedded audio and analog audio.

• Stereoscopic 3D video displays for camera alignment and production/post-production applications (Option S3D)
• Black picture and Tektronix-patented frozen picture detection
• In-depth digital data analysis helps quickly resolve difficult content quality and reliability issues (Option DAT)
• Standard and user-definable Safe Area Graticules facilitate editing and format conversion tasks, reducing the need for rework
• Active Format Description (AFD) detection, decode and automatically adjusted graticule in Picture display enable easy identification of aspect-ratio related issues

Multiformat, multistandard video monitoring
• Standard auto-detection of HD/SD-SDI and multiple Dual Link video formats
• Composite analog (PAL/NTSC) video support (Option CPS)
• Simultaneous monitoring (Option SIM) allows monitoring of 2 HD/SD-SDI inputs or 1 HD/SD-SDI input and 1 CPS input. Option 3G is required for 3G-SDI format support
• Multiple Input Mode allows monitoring of 2 to 4 SDI inputs simultaneously (4-input mode requires Option 2SDI)
• Upgradeable to 3G-SDI (Level A and Level B) format support (Option 3G)

Comprehensive audio monitoring (Option AD or DPE)
• Up to 16-channel audio monitoring for embedded audio
• Multichannel Surround Sound display and flexible Lissajous display with audio level readouts
• Audio Loudness monitoring to ITU-R BS.1770-3 with audio trigger start/stop functions via GPI (Option AD or DPE)
• Support for analog, digital and embedded audio (Option AD)
• Dolby Digital (AC-3), Dolby Digital Plus and Dolby E (Option DPE)
• Comprehensive Dolby metadata decode and display (Option DPE)
• Dolby E Guard Band meter with user-defined limits (Option DPE)

Unmatched display versatility
• FlexVu, the most flexible four-tile display, suited for various application needs to increase productivity
• Tektronix-patented Diamond and Arrowhead displays for gamut monitoring
• Tektronix-patented Timing and Lightning displays
• New Tektronix-patented Spearhead display and Luma Qualified Vector (LQV) display facilitate precise color adjustment for post-production applications (Option PROD)

Advanced ANC data monitoring
• CEA708/608 Closed Caption monitoring; Teletext (WST), SMPTE2031, OP47 and ARIB B.37 subtitle monitoring
• Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC and ANC TC ARIB STD-B35/B37/B39, TR-B22 and TR-B23 support

Superior physical layer signal measurement
• High-performance real-time eye pattern display, jitter measurements and patented cable length measurement (Option PHY3)
• Most comprehensive eye pattern measurements including eye amplitude, rise/fall time and overshoot/undershoot measurements as well as Tektronix jitter waveform display (Option PHY3)

Unmatched usability
• CaptureVu advanced video frame data capture simplifies troubleshooting and equipment setup
• 32 instrument presets for quick recall of commonly used configurations tailored to engineers or operators
• Front-panel USB port enables easy transfer of presets, captured video frame data, screenshots and error log
• Front-panel headphone port enables quick verification of selected audio pair
• Intuitive menu structure and context-sensitive help
• Extensive alarms, status reporting and error logging
• SNMP and Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and control

Applications
• Monitoring and compliance checking in content distribution and broadcast transmission
• Quality control in content production and post-production
• Equipment/system qualification and troubleshooting for installation and maintenance of content creation and distribution facilities
• Post-production edit suite and color correction monitoring
