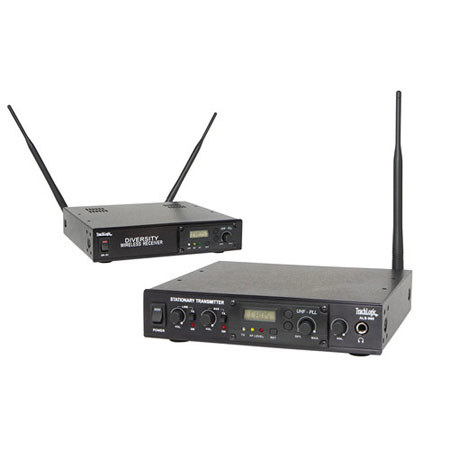

TeachLogic AR-960 AirLink Router System, Includes ALS-960 Transmitter, DR-701 Receiver
SKU: TLAR960
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About TeachLogic AR-960
The TeachLogic AR-960 AirLink Router System is a wireless audio router that transmits audio via an RF signal to a receiver. The system is comprised of a transmitter base station that transmits to a diversity receiver. The system operates in the UHF range (640-664 MHz). The system has 96 selectable preset channels. Transmitter RF output is 40 mW.
The input to the ALS-960 transmitter is line level audio. Two line level audio signals can be input and mixed in the transmitter for a composite signal transmission. The output level of each input can be adjusted and turned "on/off". The output of the unbalanced line input can be monitored with a headset.
The DR-701 receiver is a diversity receiver, meaning the signal will be received by either of two receivers; whichever has the best reception. Each receiver has a half-wave antenna for extra sensitive reception. The output of the receiver is either a balanced (XLR) or unbalanced (RCA) and is adjustable from 0-700 mV.
TeachLogic AR-960 Features
- ALS-960: Half-wave antenna for extended transmission distance
- ALS-960: Inputs mixable for composite output
- ALS-960: LCD for channel number or frequency display
- ALS-960: Master gain control for composite output
- ALS-960: Headphone output
- DR-701: Diversity receiver for more reliable reception
- DR-701: Two half-wave antennas for enhanced reception
- DR-701: LCD for channel number or frequency display
- VDR-701: Volume / Gain control
- Digital Delay Time: Variable from 20-500 ms
- Digital Delay Time: Steps in 0.1 ms increments
- Digital Delay Time: LCD for delay time display
- Digital Delay Time: Set switch to lock setting
- Digital Delay Time: Convenient install, plug-in edge connector
