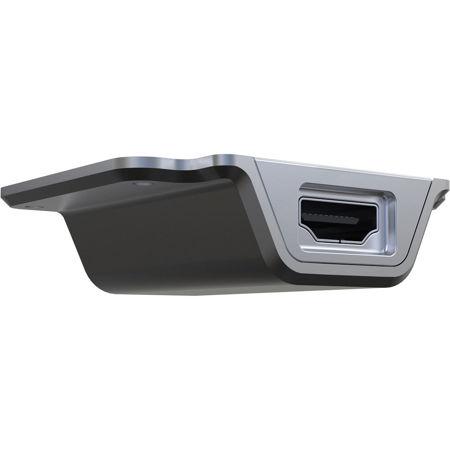

TechLogix TL-CPT-HD01 Under-Table HDMI Connection Point
See all TechLogix items

TechLogix TL-CPT-HD01 Under-Table HDMI Connection Point

SKU: TLCPTHD01

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TechLogix TL-CPT-HD01 Specifications

  • Input

    1x HDMI In

  • Input Signal Type

    HDMI 2.0

  • Input Resolution Support

    VESA: 800x600 at 60Hz, 1024x768 at 60Hz, 1280x768 at 60Hz, 1280x800 at 60Hz, 1280x960 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1366x768 at 60Hz, 1440x900 at 60Hz, 1600x900 at 60Hz, 1600x1200 at 60Hz, 1680x1050 at 60Hz, 1920x1200 at 60Hz

    SMPTE: 720x480 at 60Hz, 720x576 at 60Hz, 1280x720 at 60Hz, 1920x1080 at 60Hz, 3840x2160 at 60Hz, 4096x2160 at 60Hz

  • Input Video Level

    0.5-1.0 V p-p

  • Maximum Pixel Clock

    600MHz

  • Output Signal Type

    HDMI 2.0

  • Output

    1x HDMI Out

  • Output Resolution Support

    VESA: 800x600 at 60Hz, 1024x768 at 60Hz, 1280x768 at 60Hz, 1280x800 at 60Hz, 1280x960 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1366x768 at 60Hz, 1440x900 at 60Hz, 1600x900 at 60Hz, 1600x1200 at 60Hz, 1680x1050 at 60Hz, 1920x1200 at 60Hz

    SMPTE: 720x480 at 60Hz, 720x576 at 60Hz, 1280x720 at 60Hz, 1920x1080 at 60Hz, 3840x2160 at 60Hz, 4096x2160 at 60Hz

  • Video Impedance

    100Ohms

  • Audio Input

    Stereo, Dolby digital, Dolby trueHD, DTS digital, DTS master Dolby Atmos, DTS-X

  • Audio Output

    Stereo, Dolby digital, Dolby trueHD, DTS digital, DTS master Dolby Atmos, DTS-X

  • Operating Temperature

    0 to 45 deg. C (32 to 113 deg. F)

  • Storage Temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Humidity

    10% to 90%, non-condensing

  • ESD Protection

    Human-body Model: +/-8kV (Air-gap discharge) and +/-4kV (Contact discharge)

  • Surge Protection

    Voltage: +/-1kV (Ten times respectively for the positive and negative voltage)

  • Electrical Fast Transient/Burst

    Data communication cord: 1kV
    Power cord: 2kV

  • Certification

    CE, FCC, RoHS

  • Dimensions (WxHxD)

    60 x 16.59 x 54mm (2.36 x 0.65 x 2.13")

  • Weight

    0.06kg (0.13 lbs)

  • UPC Code

    816927020294

About TechLogix TL-CPT-HD01

Tired of cables scattered across your conference room table How about untangling knots when all you want to do is connect your laptop Meet the TL-CPT-HD01. This compact device provides a clean, low-profile connection point for tables, podiums, desks, racks and credenzas. Simply mount it to the underside of a flat surface and connect one end to your destination device using an HDMI cable. Your classroom or meeting room is now ready for plug-and-play connectivity.

The TL-CPT-HD01 4K HDMI Table-plug Repeater is used to solve the problem of a messy conference table. By its compact size it can be easily installed under the table with four screws. It can be widely used in any applications which want to organize HDMI cable connection points.

TechLogix TL-CPT-HD01 Features

  • Mounts under tables, podiums or other surfaces
  • Ideal connection point for devices
  • Female HDMI input
  • Female HDMI output
  • Pass-through signal design
  • 4K at 30 compliant
  • HDCP 2.2 compliant
  • Hot-plug compliant
  • HDMI 2.0 compliant
  • Powered through the HDMI connection
  • Solution for messy cable desktop
  • Supports plug and play
  • Compact size for hidden installation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TechLogix TL-CPT-HD01 Under-Table HDMI Connection Point
  • User Manual
  • TechLogix 3 Year Limited Warranty
