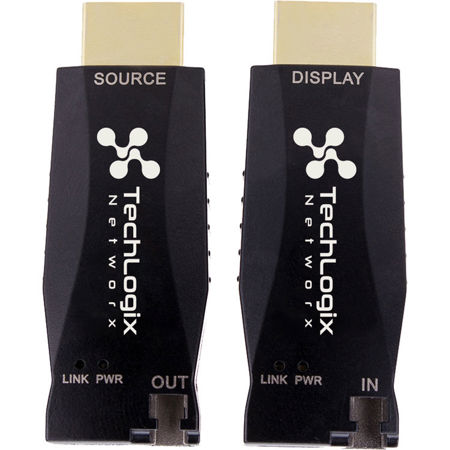

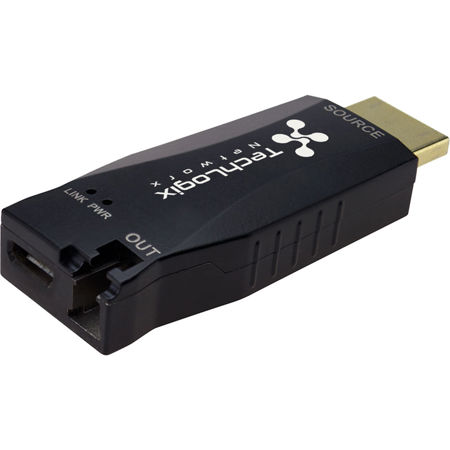

TechLogix TL-FO-HD 1000' HDMI Over Fiber Optic Cable Extender

TechLogix TL-FO-HD 1000' HDMI Over Fiber Optic Cable Extender, Up to 4K at 30Hz Resolution

SKU: TLFOHD
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TechLogix TL-FO-HD Specifications

  • Transmitter: Input

    1x HDMI

  • Transmitter: Input Connector

    19-pin Type A male HDMI

  • Transmitter: Input Signal

    HDMI 1.4

  • Transmitter: Output

    1x Optical Fiber

  • Transmitter: Output Connector

    LC connector

  • Transmitter: Output Signal

    Optical Fiber

  • Receiver: Input

    1x Optical Fiber

  • Receiver: Input Connector

    LC connector

  • Receiver: Input Signal

    Optical Fiber

  • Receiver: Output

    1x HDMI

  • Receiver: Output Connector

    19-pin Type A male HDMI

  • Receiver: Output Signal

    HDMI 1.4

  • Resolution

    4K (max)

  • Transmission Distance

    <=400m (1300') via single-mode fiber
    <=300m (1000') via multi-mode fiber

  • Operating Temperature (Environment)

    0 to 50 deg. C (32 to 122 deg. F)

  • Operating Humidity (Chassis)

    10% - 90%

  • Storage Temperature (Environment)

    -10 to 50 deg. C (14 to 122 deg. F)

  • Storage Humidity (Environment)

    10% - 90%

  • Power Supply

    Input: AC 100-240V, 50/60Hz; Output: DC 5V 1A

  • ESD Protection

    8kV

  • Regulatory

    CE, FCC

  • Power Consumption

    2.5W (Transmitter), 2.3W (Receiver)

  • Maximum Video Compatibility

    400m: 4kx2K at 30Hz 4:4:4 8bit; 1080p at 60Hz 4:4:4 16bit

  • Video Compliance

    HDMI 1.4, HDCP 1.4, CEC pass through

  • Embedded Audio

    Up to PCM 8 channel, Dolby Digital TrueHD and DTS-HD Master Audio

  • Input DDC Signal

    5.0 Volts p-p (TTL)

  • Input Video Signal

    0.5-1.0 Volts p-p

  • Cable

    Single-mode fiber/Multi-mode fiber

  • Enclosure

    Painted aluminum

  • Indicators

    Power, Link

  • Dimensions (WxHxD)

    Transmitter and Receiver: 60 x 10 x 22mm (2.36 x 0.39 x 0.87")

  • Weight

    Transmitter and Receiver: 26g (0.92 oz)

  • UPC Code

    816927020386

About TechLogix TL-FO-HD

HDMI cables are great for transmitting audio and video signals short distances, but larger buildings and larger rooms often need electronics inline to ensure signal performance. Simply pulling a long HDMI cable or connecting multiple HDMI cables together can cause signal drop out, interference, pixelization and a host of other signal and performance problems.

The TL-FO-HD replaces a traditional HDMI cable with active electronics designed specifically for sending audio and video signals up to 1,000 feet. Simply connect the TL-FO-HD transmitter to your source device (often a switcher, matrix, DVD player or cable box), connect the TL-FO-HD receiver to your destination device (often a display or projector), connect the two units with a fiber optic patch cord (sold separately) and connect the power supplies. Unlike boosters or twisted pair extenders, the TL-FO-HD uses fiber optic technology that is immune to outside electrical interference and will better future-proof your facility.

The TL-FO-HD is a mini 4K HDMI optical fiber extender, including a transmitter and a receiver. It supports HDMI1.4 & HDCP1.4, extends 4K HDMI video up to 400m via single optical fiber cable, with EDID/HDCP/CEC pass through. The TL-FO-HD provides a perfect solution for 4K HDMI video transmission.

TechLogix TL-FO-HD Features

  • Transmit HDMI audio & video over a fiber optic patch cable
  • Extend 1080p HD up to 1300' (400m)
  • Extend 4K at 30 HD up to 1000' (300m)
  • LC connectors on both the transmitter and receiver
  • Male HDMI connectors for direct connection to devices
  • Single or multimode fiber compatible
  • Powered via USB or standard AC
  • Single fiber cable transmission
  • Immune to RF and EM interference
  • Compliant with HDCP 1.4
  • Supports 4K HDMI video
  • Compliant with single-mode or multi-mode optical fiber
  • EDID/HDCP/CEC pass through

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TechLogix Transmitter
  • Receiver
  • 2x Power Adapter
  • 0.5m Optical Fiber Cable (Single-Mode)
  • User Manual
  • TechLogix 3 Year Limited Warranty
