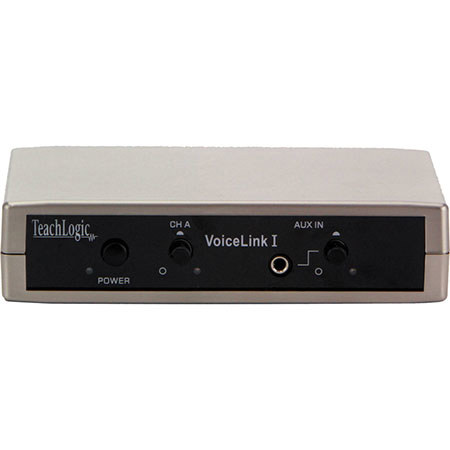

TeachLogic IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply
See all TeachLogic items

TeachLogic IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply, 50Hz-13kHz Frequency Response

SKU: TLIR100

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TeachLogic IR-100 Specifications

  • Receiver Input

    Infrared FM

  • Modulation

    FM wide-band

  • Reception Frequencies

    Channel A: 2.08 MHz

  • Infrared Wavelength

    850 nm

  • Tone Signal

    Channel A: 32.768 kHz

  • De-Emphasis

    50 us

  • Frequency Response

    50 Hz-13 kHz +/-3 dB

  • S/N Ratio

    >65 dB

  • THD

    <1% at 1 kHz

  • Nominal Deviation

    +/-10 kHz

  • Maximum Deviation

    +/-25 kHz

  • Input

    External Sensor: 2x RCA
    Auxiliary: 3.5mm with gain control (front panel)

  • Line Output

    1 V balanced line level
    3-pin Phoenix connector
    Unbalanced line level
    RCA

  • Power Supply

    12 VDC / 0.6 A / 7.2 W

  • Enclosure

    ABS

  • Dimensions (W x H x D)

    5 x 1 x 4.5" / 12.7 x 2.54 x 11.43cm

  • Weight

    9.1oz / 257.98g

About TeachLogic IR-100

The TeachLogic IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply will expand your multi-media sound system to include voice reinforcement via an infrared wireless microphone. The VoiceLink I is a preamp-only receiver and is designed to be plugged into an existing power amplifier or the input of a multi-media sound system. With a VoiceLink I infrared wireless microphone system, the teacher's voice will be clearly heard throughout the room with ease. And the auxiliary input on the front panel allows the input of an iPod, computer or DVD to supplement the instructional program.

TeachLogic IR-100 Features

  • One infrared receiver channel
  • One line level auxiliary input
  • Excellent for recording with an active board for internet podcasts
  • Extremely easy to interface with most video projectors
  • Two sensor inputs
  • Mounting brackets
  • Wall mount sensor with 30' (9.14m) cable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • One infrared receiver channel
  • One line level auxiliary input
  • Two sensor inputs
  • Mounting brackets
  • Wall mount sensor

What's in the box:

  • TeachLogic IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply
  • Mounting Brackets
  • TeachLogic 5 Year Limited Warranty
