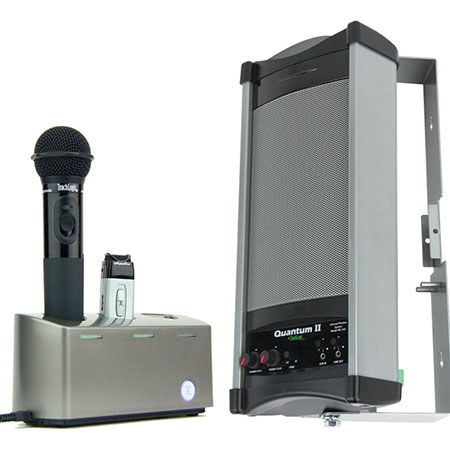

TeachLogic IRQ-3650 Quantum II Infrared Wireless Microphone System, Includes IRC-360 Speaker, AC-35 Power Supply, IRT-55 Transmitter, IRH-35 Mic, BRC-55 Charger

The TeachLogic IRQ-3650 Quantum II Infrared Wireless Microphone System is the nucleus of the classroom sound field system which provides optimum voice reinforcement. The addition of a Quantum II sound system will transform your classroom into a totally hands free, voice re-enforcement system, resulting in reduced voice fatigue, enhanced student listening and improved student learning. The wireless function permits 360deg. connectivity throughout the classroom regardless of body position or orientation.

The system is comprised of an infrared detecting sensor. The sensor collects the IR wireless signal from the microphone/transmitter and sends a composite signal to the mixer/amplifier. The receiver transforms the composite signal into an analog audio signal which is fed to the Quantum II mixer. An additional audio sources, such as; computer, DVD, VCR or Projector can be plugged in to the Quantum II. The AUX IN level controls the individual audio input. The audio will then be fed to the speaker in the column for voice reinforcement throughout the room. On the front panel of the Quantum II, there is a 3.5mm output jacks for interface with an assistive listening system (ALS) or lesson capture (LINE OUT). The microphone / transmitter can be one or two Sapphire Pendants or Handhelds. The rechargeable batteries will provide 6 - 8 hours of service per charge. The drop-in charger will recharge the batteries overnight, ready for another day's use.

IRT-55 Sapphire Transmitter
The Sapphire's vocal clarity is unsurpassed. Its high level output is achieved by the unidirectional (Cardioid) microphone and a unique free air suspension system. With a built-in breath filter, the Sapphire can function as a pass around hand mic. The strategic alignment of the emitting diodes assures reliable connectivity throughout the room without static or drop out. With a tap on the power button, the microphone is muted for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod through the Sapphire. A three position slide switch provides selection of low, medium or high microphone sensitivity

IRH-35 Handheld Microphone
The IRH- 35 Handheld Microphone Transmitter is most applicable for student use or direct presentation. It has an "on/off" switch and a battery level indicator LED; Green=useable charge, Red=low battery. The transmitter has 10 emitting diodes: 8 around the bottom of the handle and 2 toward the top of the handle. The metal housing provides low handling noise and insures durable longevity.

BRC-55 Drop-In Battery Charger
This stylish desktop drop-in charging station makes it convenient and easy to recharge both Sapphire Pendant and Handheld Microphones. Charge one IRH-35 handheld transmitter and up to two IRT-60 Sapphire transmitters simultaneously. Charging indicator lights illuminate Red when charging and Green when fully charged. The "TL" logo illuminates Blue when plugged in.
