TeachLogic VoiceLink I Sapphire Transmitter/Microphone System
See all TeachLogic items

TeachLogic VoiceLink I Sapphire Transmitter/Microphone System, Includes IR-100 Wireless Receiver, IRT-55 Transmitter, BRC-15 Battery Charger, ICS-55 Sensor

SKU: TLIRV1150
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TeachLogic VoiceLink I Sapphire Transmitter/Microphone System Specifications

  • Receiver Input

    Infrared FM

  • Modulation

    FM Wide-band

  • Reception Frequencies

    Ch. A: 2.08 MHz

  • Infrared Wavelength

    850 nm

  • Tone Signal

    Ch. A: 32.768 KHz

  • De-emphasis

    50 us

  • Frequency Response

    50 Hz, -13KHz, +/- 3dB

  • S/N Ratio

    65 dB

  • THD

    1% at 1KHz

  • Nominal Deviation

    +/- 10 KHz

  • Maximum Deviation

    +/- 25 KHz

  • External Sensor Input

    Two, RCA

  • Aux Input

    3.5mm with Gain Control, Front Panel

  • Line output

    Balanced Line Level, Three Pin Phoenix connector Unbalanced Line Level, RCA

  • Power Supply

    12VDC / 0.6A / 7.2W

  • Enclosure

    ABS

  • Dimensions (W x H x D)

    5 x 1 x 4.5" / 231.14mm

  • Weight

    9.1oz / 257.98g

About TeachLogic VoiceLink I Sapphire Transmitter/Microphone System

The TeachLogic VoiceLink I Sapphire Transmitter/Microphone System is an excellent addition to an existing sound system to extend its use for voice reinforcement. Voicelink I includes a single channel receiver for use with one infrared wireless microphone and provides one auxiliary input for a line level program input. The output is line level; balanced or unbalanced. Compact size, wall or shelf mountable and low in cost.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

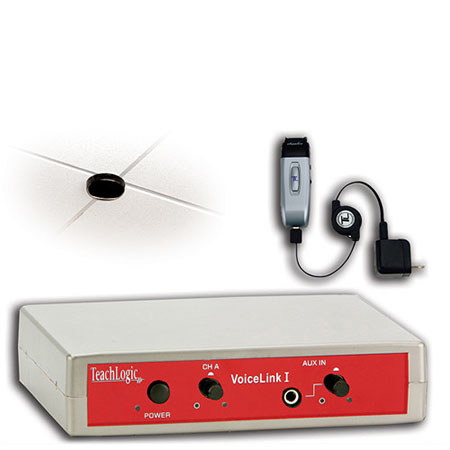

What's in the box:

  • TeachLogic IR-100 Single Channel Infrared Wireless Receiver
  • IRT-55 Sapphire Transmitter/Microphone with Lithium Battery
  • BRC-15 Battery Charger
  • IWS-35 Corner/Wall Mount Sensor with 30 Plenum-Rated Cable
  • TeachLogic 5 Year Limited Warranty
