TeachLogic LS2 VoiceLink Plus Handheld System
See all TeachLogic items

TeachLogic LS2 VoiceLink Plus Handheld System, Includes 2 Lay-in Panel Speakers, IMA-100 Receiver, Infrared Transmitter/Microphone, BRC-101 Drop-In Charger

SKU: TLIRV3350LS2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TeachLogic LS2 Specifications

  • IMA-100: Input

    Infrared FM

  • IMA-100: Modulation

    FM wide-band

  • IMA-100: Frequencies

    Reception (Channel A): 2.08 MHz

  • IMA-100: Infra-red Wavelength

    850 nm

  • IMA-100: Tone Signal

    Channel A: 32.768 kHz

  • IMA-100: De-Emphasis

    50 us

  • IMA-100: Frequency Response

    50 Hz, -13 kHz, +/- 3 dB

  • IMA-100: S/N Ratio

    >65 dB

  • IMA-100: THD

    <1% at 1 kHz

  • IMA-100: Nominal Deviation

    +/-10 kHz

  • IMA-100: Maximum Deviation

    +/-25 kHz

  • IMA-100: Sensor Input

    2 x RCA

  • IMA-100: AUX Input

    3.5 mm with gain control, front panel

  • IMA-100: Output Power

    Two Amplifiers:
    Each: 10 W RMS
    Total: 20 W RMS

  • IMA-100: Output Impedance

    4 Ohms

  • IMA-100: Output Connection

    1 x 4-pin Phoenix

  • IMA-100: Power Supply

    12 VDC / 0.6 A / 7.2 W

  • IMA-100: Enclosure

    ABS

  • Speaker: Frequency Response

    80 Hz to 15 kHz, +/- 6dB

  • Speaker: Power

    30 Watts Continuous

  • Speaker: Sensitivity

    89dB SPL (1W/1M)

  • Speaker: Impedance

    8 Ohms

  • Speaker: Crossover Frequency

    6 kHz

  • Speaker: Nominal Coverage Angle

    90 x 90degree

  • Speaker: Driver

    6.5" / 16.51cm Polymica/rubber
    1" / 2.54cm high efficient domed tweeter, neodymium

  • Speaker: Enclosure Material

    Air sealed metal back can with infinite baffle

  • Speaker: Termination

    Screw terminals for secure speaker wire connection

  • Speaker: Mounting

    12 x 24" / 30.48 x 60.96cm lay-in speaker assembly

  • Speaker: Thickness

    Panel: 0.62" / 1.57cm

  • Transmitter

    Carrier: Infrared

  • Transmission Frequency

    2.08 MHz and 2.54 MHz

  • Transmitter: Channel Switching

    A and B, 2-Channel Field Switchable

  • Transmitting Diodes

    10

  • Transmitter: Modulation

    FM Wide-Band

  • Transmitter: Frequency

    Pilot Tone: 32.768 kHz

  • Transmitter: Peak Deviation

    +/- 25kHz

  • Transmitter: Operating Range

    60' / 18.28m line of sight, 1500 Square Feet / 139.35 Square Meter

  • Power Switch

    On/Off Slide

  • Battery Charge Display

    Green (Useable Charge)
    Red (Needs Charging)

  • Transmitter: Battery Life

    Approximately 7 Hours

  • Transmitter: Diameter

    Head: 2.12" / 5.38cm
    Body: 1.43" / 3.63cm

  • BRC-15: Compatibility

    Compatible with TeachLogic IRH-35/40 Microphone/Transmitter

  • BRC-15: Power

    110V

  • BRC-15: Charging Time

    10-12 Hours

  • Sensor: Operating Frequencies

    2.3 mHz to 2.8 mHz

  • Sensor: IR Receiver

    6 large lens diodes

  • Sensor: Coverage

    360degrees

  • Sensor: Range

    40-50' / 12.19-15.24m line of sight, 2500 Square Feet / 232.25 Square Meter

  • Sensor: Mounting

    Clip-on "T" bar bracket

  • Sensor: Connector

    Female RCA

  • Sensor: Indicator Lights

    Green LED for Power On

  • Sensor: Cable

    75 Ohms
    Dual-shielded
    Plenum-rated

  • Sensor: Cable Length

    50' / 15.24m

  • Dimensions

    IMA-100 (W x H x D): 5.0 x 1.0 x 4.5" / 12.7 x 2.54 x 11.43cm
    Ceiling Speaker: 12.25 x 23.75 x 6.25" / 31.11 x 60.32 x 15.87cm
    Ceiling Speaker with T-Bar Support: 13 x 23.75 x 6.25" / 33.02 x 60.32 x 15.87cm
    Transmitter: 9.62" / 24.43cm
    Sensor: 4.62 x 1.37" / 11.73 x 3.47cm

  • Weight

    IMA-100: 1lbs / 0.45kg
    Ceiling Speaker: 8lbs / 3.62kg
    Transmitter: 0.64lbs / 0.29kg
    Sensor: 0.46lbs / 0.20kg

About TeachLogic LS2

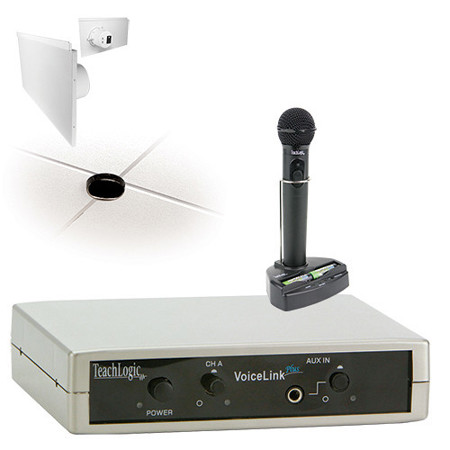

The TeachLogic LS2 VoiceLink Plus Handheld System consists of an infrared wireless microphone receiver, a handheld infrared transmitter microphone, 2 lay-in panel speakers and a ceiling sensor. VoiceLink Plus systems are designed to reinforce the teacher's voice and amplify media sources in classrooms. The IMA-100 wireless microphone receiver features a 20W amplifier, which powers the two SP-628L lay-in panel speakers. TeachLogic's IRH-35 infrared transmitter/microphone transmits the presenter's voice while granting freedom of movement throughout the classroom via the ICS-55 infrared dome sensor receiver. A Duracell NiMH battery and a drop-in battery charger for the microphone are provided. Connection to a computer DVD or iPod is facilitated by an auxiliary input on the receiver's front panel.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TeachLogic IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier
  • Mounting Brackets & Hardware
  • Power Supply
  • 2 x Lay-In Ceiling Speaker
  • Handheld Infrared Transmitter/Microphone
  • 2 x NiMH Batteries
  • BRC-101 Drop-In Charger
  • Infrared Dome Sensor
  • 50' 75 Ohms Dual-Shielded Plenum-Rated Cable
  • TeachLogic 5 Year Limited Warranty
