Review Summary
Black
Black
Metal
Cat5/5e; Cat6; Cat6a; Multimode; PoE; Singlemode
Multimode; Singlemode
Input: 100-240V, 50/60Hz, 1.5A
Output: 48V/1.25A
RJ45 (FEMALE); SFP (FEMALE)
100-240V / 50/60Hz / 1.5A
NEMA 5-15P North America
48V / 1.25A
3.6' (1.1m)
AC Adapter with detachable power cord
Input: 100-240V, 50/60Hz, 1.5A; Output: 48V, 1.25A
OD: 0.22 x 0.08 x 0.39" (5.5 x 2.1 x 10mm), Positive Pin, Negative Sleeve
RJ45 (FEMALE)
SFP (FEMALE)
Type 2 PoE+ (30W, IEEE 802.3at)
PWR (Power LED), 1000M (UTP port speed LED), PoE (PoE status LED), SD (Fiber signal LED), L/A TP (UTP Port link status LED), L/A FP (Fiber port link status LED)
-4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
-4 Degree to 158 Degree F (-20 Degree to 70 Degree C)
5% to 90% RH, Non-Condensing
10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
10 Mbps; 100 Mbps; 1000 Mbps
Depends on transceiver used
802.3; 802.3u; 802.3ab; 802.3z; 802.3at; 802.3af
Yes
1 Gbps; 10 Mbps; 100 Mbps
Full/Half Duplex
Yes
10/100/1000 Mbps Gigabit Ethernet network
Singlemode or multimode transceiver (such as N286-01GSX-MDLC or N286-01GLX-SLX)
N785-Series media converter (without PoE)
CCC, FCC, PSE, UL, cUL
RoHS, FCC (USA)
0.98 x 3.7 x 2.7" (2.49 x 9.40 x 6.86cm)
7.04 oz (199.5g)
037332236937
Models | SKU: TLN785P01SFP MFR: N785-P01-SFP $174.99 $199.99 Save:$25.00 (13%) Ships from Manufacturer Usually ships within 1-2 Days | SKU: AJHDBNCCABS5 MFR: HD-BNC-CABLES-5 $125.00 Special Order Generally ships in 7-14 days, subject to availability | SKU: AJADA4 MFR: ADA4 $585.00 Special Order Generally ships in 7-14 days, subject to availability |
---|---|---|---|
Accessory Type | Audio Interface | Audio Interface | Audio Interface |
Converts From | Fiber | BNC | Audio, BNC |
Converts to | Ethernet | - | Analog, Audio |

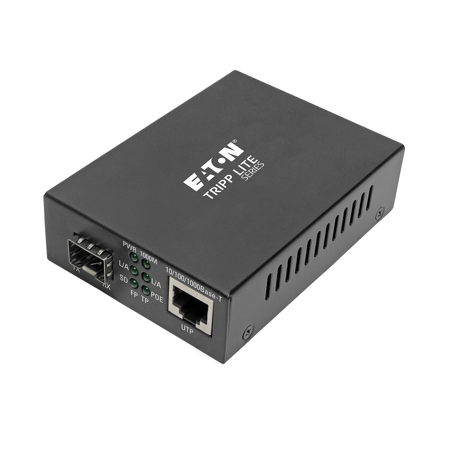

This Ethernet extender lets you send Gigabit Ethernet data and power up to 550m (1804 ft.), well beyond the 100m (328-ft.) limit of conventional copper cable.
Customizable Media Converter Extends Power and Data to a PoE+ Device via Fiber Cable
This Ethernet extender converts a single mode or multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SFP with fiber cable to reach greater distances.
This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.
Works in Tandem with N785-Series (Non-PoE) Media Converters
The N785-P01-SFP lets you choose a transceiver that suits your system, while also delivering power to your PoE+ device (N286-01GSX-MDLC and N286-01GLX-SLX transceivers sold separately). It connects to a N785-Series non-PoE media converter using your choice of single mode or multimode cabling. It also delivers data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) away using Cat5e/6 cabling (such as N001- or N201-Series cables).
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-P01-SFP's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors all ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.
