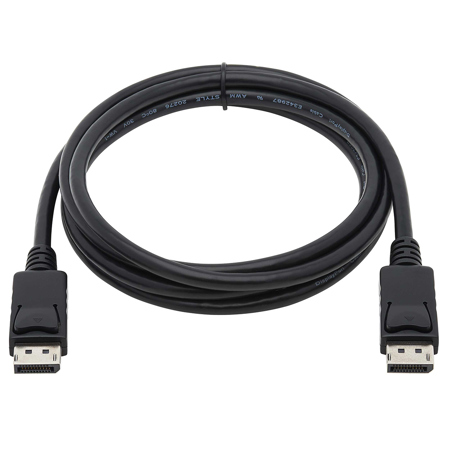

Tripp Lite 10' 30 AWG 4K DisplayPort 1.2 Cable with Latches, Black
Tripp Lite DisplayPort 1.2 Cable: Picture 1 thumbnail
Tripp Lite DisplayPort 1.2 Cable: Picture 2 thumbnail
Tripp Lite DisplayPort 1.2 Cable: Picture 3 thumbnail
Tripp Lite DisplayPort 1.2 Cable: Picture 4 thumbnail
Tripp Lite DisplayPort 1.2 Cable: Picture 5 thumbnail
See all Tripp Lite items
New Arrival

Tripp Lite 10' 30 AWG 4K DisplayPort 1.2 Cable with Latches, Black

SKU: TLP580010 MFR: P580-010
(1)Ask a Question
$24.99
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 4K video at 60Hz with this 10-foot DisplayPort 1.2 cable.
  • Enjoy secure connections with latching DisplayPort connectors, preventing accidental disconnections.
  • Perfect for extending your display, this 30 AWG cable ensures reliable signal transmission.
  • Connect your devices with confidence, backed by Tripp Lite's lifetime limited warranty.
  • Achieve optimal visual performance for gaming or professional tasks with this high-quality cable.
  • This versatile DisplayPort cable supports MST for multi-monitor setups, enhancing your productivity.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$2.59
2-Year Adorama Protect$4.29
3-Year Adorama Protect$6.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-06-17T20:00:00

Rated 5 out of 5

I should have purchased Tripp-Lite First!

After buying from -8elkin, Rosewill, SiiG and Anphenol I should have purchased this brand first! It would have saved me lots of time and bumps on my head replacing all of those other garbage brands! For some reason I believe G.Sync stresses the cable when used often which caused the cables from the other brands to fail over a short amount of time! So far this cable is humming after a year of use! I just ordered three more to swap out my aphenol brand cables as I know they are sure to fail once again! Bravo Tripp Lite for making a cable that actually lasts!

Jim H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Tripp Lite DisplayPort 1.2 Cable Specifications

General

General

Jump to...

  • Technology

    DisplayPort

  • Cable Type

    Passive

  • Cable Jacket Rating

    VW-1

  • Wire Gauge

    30 AWG

Video

Jump to...

  • Max Supported Video Resolution

    3840 x 2160 (4K) @ 60Hz

  • Max Supported Color Depth

    24-bit True Color

  • HDR Support

    No

  • 3D Video Supported

    Yes

  • Chroma Sub Sampling

    4:2:0; 4:2:2

  • Signal Transmission

    Bidirectional

Connections

Jump to...

  • Side A - Connector 1

    DisplayPort (Male)

  • Side B - Connector 1

    DisplayPort (Male)

  • Connector Plating

    Nickel

  • Contact Plating

    Gold

  • Connector Style

    Straight

  • Latching or Gripping Connector

    Yes

Environmental

Jump to...

  • Operating Temperature Range

    32 Degree to 113 Degree F (0 Degree to 45 Degree C)

  • Storage Temperature Range

    -40 Degree to 158 Degree F (-40 Degree to 70 Degree C)

  • Operating Humidity Range

    10% to 85% RH, Non-Condensing

  • Storage Humidity Range

    5% to 90% RH, Non-Condensing

Communications

Jump to...

  • EDID Compatible

    Yes

Features

Jump to...

  • MST Support

    Yes

  • DisplayPort

    1.2

  • HDCP

    2.2

Standards & Compliance

Jump to...

  • Compliance

    RoHS; REACH; WEEE

Physical

Jump to...

  • Color

    Black

  • Material

    Cable Jacket: PVC

  • Cable Outer Diameter (OD)

    0.23" (6mm)

  • Minimum Bend Radius

    2.36" (60mm)

  • Cable Length

    10' (3.04m)

Other

Jump to...

  • UPC Code

    037332145956

About Tripp Lite DisplayPort 1.2 Cable

FEATURED REVIEWS

I should have purchased Tripp-Lite First!

By Jim H.

After buying from -8elkin, Rosewill, SiiG and Anphenol I should have purchased this brand first! It would have saved me lots of time and bumps on my head replacing all of those other garbage brands! For some reason I believe G.Sync stresses the cable when used often which caused the cables from the other brands to fail over a short amount of time! So far this cable is humming after a year of use! I just ordered three more to swap out my aphenol brand cables as I know they are sure to fail onc...

View full Review

High-performance DisplayPort v1.2 cable combining digital video and audio in one compact design. Supports UHD 4K (3840x2160 @ 60Hz), 1080p, HDCP, and offers a smaller footprint than VGA or DVI for efficient connectivity.

Tripp Lite DisplayPort 1.2 Cable Features

  • Digital Video and Audio in one cable
  • Small footprint compared to VGA or DVI
  • Supports Ultra High Definition (UHD) 4K x 2K video resolutions up to 3840 x 2160 @ 60Hz, including 1080p
  • Supports High Definition Content Protection (HDCP)
  • Supports DisplayPort v1.2

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear 4K video at 60Hz with this 10-foot DisplayPort 1.2 cable.
  • Enjoy secure connections with latching DisplayPort connectors, preventing accidental disconnections.
  • Perfect for extending your display, this 30 AWG cable ensures reliable signal transmission.
  • Connect your devices with confidence, backed by Tripp Lite's lifetime limited warranty.
  • Achieve optimal visual performance for gaming or professional tasks with this high-quality cable.
  • This versatile DisplayPort cable supports MST for multi-monitor setups, enhancing your productivity.

What's in the box:

  • Tripp Lite 10' 30 AWG 4K DisplayPort 1.2 Cable with Latches (Black)
  • Tripp Lite Lifetime Limited Warranty
