TeachLogic IRP-1620R Wireless Classroom Mic System, Includes Matrix Amplifier/Receiver, 2x IRH-35 Handheld Transmitter, 4x Ceiling-Mount Speakers, CPR-125 Control Panel and 2x BRC-101 Charger
SKU: TLRP1620RCS4
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About TeachLogic IRP-1620R
- Matrix Amplifier/Receiver -
The Matrix is ideal for plenum applications of the Sound Field amplifier/receiver. With a simple CAT5 cable, the TeachLogic CPS-120 (or CPR-125) wall mount controller manages audio sources connected to the amplifier.
The controller has an intuitive touch interface with the additional benefit of Bluetooth pairing of an extra audio device (such as a amartphone). And with two infrared wireless microphone channels, the Matrix is sure to be the low profile, high feature Sound Field solution you've been looking for.
- IRH-35 Handheld Microphone Transmitter -
For All Infrared Sound Systems
The handheld microphone/transmitter is primarily used by students for interactive class participation. The ergonomic design renders user comfort and very low handling noise. The unidirectional condenser microphone reproduces excellent vocal quality and the windscreen prevents breath pops. The emitting diodes are located around the top and bottom end of the handle for 360 Degree transmission and assured connectivity throughout the classroom.
- ICS-55 Infrared Dome Sensor -
The ceiling sensor is the preferred infrared sensor for optimum performance. It comes standard with Forum, Maxim III, Spectrum II, VoiceLink I, VoiceLink Plus, VoiceLink III and VoiceLink IV packages. This unit needs to be installed on the ceiling at least 3'-0" from the video projector. It comes with a mounting/support bracket and 50 feet of plenum rated cable with RCA connector on each end.
The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360 Degree coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor.
- SP-628 Ceiling Speaker -
SP-628 is a 6.5" two-way full range compact coaxial ceiling speaker, providing low distortion and a smooth natural frequency response ideal for articulate vocal clarity. The SP-628 has integrated steel backcan along with 24" tile bridge which allows for quick and easy installation.ETL PLENUM RATED CONFORMS TO UL2043 STANDARD
Intended use
Indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile.
The TeachLogic CS-4 Ceiling Speaker Package consists of four SP-628 ceiling speakers.
- BRC-101 Handheld Microphone Charger -
Drop-in Charger for Handheld (IRH-35 or IRH-40) transmitter
• Convenient drop-in insertion
• Optimum charging rate for NiMH battery
TeachLogic IRP-1620R Features
- Matrix Amplifier/Receiver Features
- 2x infrared wireless microphone receivers with volume control
- 2x stereo, line level, or aux inputs (3.5mm)
- 1x dual mono line level output for Assistive Listening System with gain control (3.5mm)
- 2x Power Amplifiers: Total 50 W RMS (Class D amplifier, 25 W ea channel)
- Security Alert, contact closure, N/O, N/C
- Page override (muting) with Page Pass-through to classroom speakers | Input level 100V, 70V, 25V
- RS-232 wall panel control, RJ-45
- RS-232 on/off switch
- Teacher Priority instantly attenuates all line inputs
- Bass/Treble control equalizer +/- 12 dB
- 2x external microphone sensor inputs, single RCA
- IRH-35 Handheld Microphone Features
- Condenser microphone element
- Power "on/off" switch
- Battery level indicator-LED
- Channel "A" or "B" selectable
- 10 high-power emitting diodes
- Diodes at top and bottom of handle for increased Coverage (2 Top aimed out, 6 Bottom 360 deg. , 2 Bottom aimed down)
- 360 deg. IR radiation for assured connectivity
- Two "AA", Duracell, rechargeable NiMH batteries
- SP-628 Ceiling Speaker Features
- Air Sealed Metal Back Can for an infinite baffle
- 6" Cone Driver with a 1" Mylar Dome Tweeter
- BRC-101 Handheld Microphone Charger Features
- Convenient drop-in insertion
- Optimum charging rate for NiMH battery
- Auto charge/maintenance
- Charging mode indicator-Red LED
- Full charge indicator-Green LED
- Recycle function: periodic battery rejuvenation to maintain and extend battery service life
- Non-rechargeable battery prevention

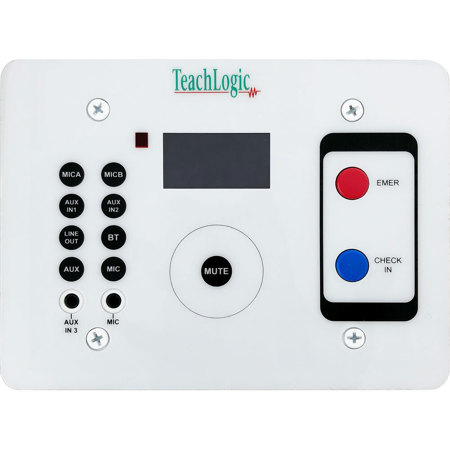

- CPR-125 Wall Panel Controller Features
- Fits into a standard 2-Gang low voltage trim ring for flush mounting
