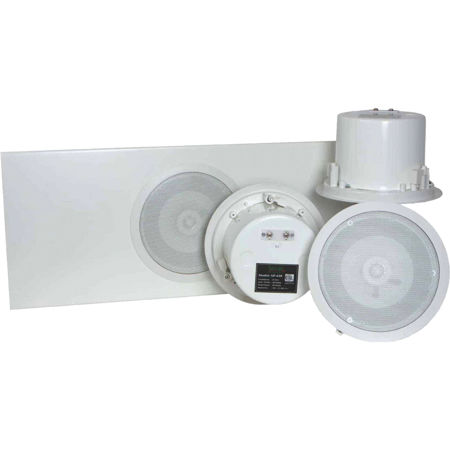

TeachLogic SP-628 6.5" 2-Way Coaxial Ceiling Speaker, Integrated Metal Back Can
See all TeachLogic items

TeachLogic SP-628 6.5" 2-Way Coaxial Ceiling Speaker with Integrated Metal Back Can

SKU: TLSPKR628
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TeachLogic SP-628 Specifications

  • Frequency Range

    120 Hz to 23 kHz, +/- 10 dB

  • Power

    30 Watts Continuous

  • Sensitivity

    87dB SPL (1W/1M)

  • Impedance

    8 Ohms

  • Crossover Frequency

    6 kHz

  • Nominal Coverage

    90 x 90 Degrees

  • LF Driver

    6.5" Cone Driver

  • HF Driver

    High efficient 1" (2.54cm) domed tweeter, neodymium

  • Enclosure Material

    Air Sealed Metal Backcan Infinite Baffle

  • Termination

    Screw terminals for secure speaker wire connection

  • Mounting

    Three Quick-Mount Clamps

  • Dimensions (H x Dia)

    5.5 x 8" (13.97 x 20.32cm)

  • Weight

    3.12 lbs (1.41kg)
    Magnet: 10 oz (283.49g)

About TeachLogic SP-628

SP-628 is a 6.5" two-way full range compact coaxial ceiling speaker, providing low distortion and a smooth natural frequency response ideal for articulate vocal clarity. The SP-628 has integrated steel backcan along with 24" tile bridge which allows for quick and easy installation. ETL PLENUM RATED CONFORMS TO UL2043 STANDARD

Intended use
Indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile.

TeachLogic SP-628 Features

  • Air Sealed Metal Back Can for an infinite baffle
  • Mounting: Three Quick-Mount Clamps
  • Perforated steel grill painted 'tile white'
  • Screw terminal
  • Suitable for ceiling or in-wall mounting
  • Optional Accessory: Galvanized Steel Tile Bridge

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Air Sealed Metal Back Can for an infinite baffle
  • Mounting: Three Quick-Mount Clamps
  • Perforated steel grill painted 'tile white'
  • Screw terminal
  • Suitable for ceiling or in-wall mounting
  • Optional Accessory: Galvanized Steel Tile Bridge

What's in the box:

  • SP-628 6.5 " 2-Way Coaxial Ceiling Speaker
  • TeachLogic 5 Year Limited Warranty
