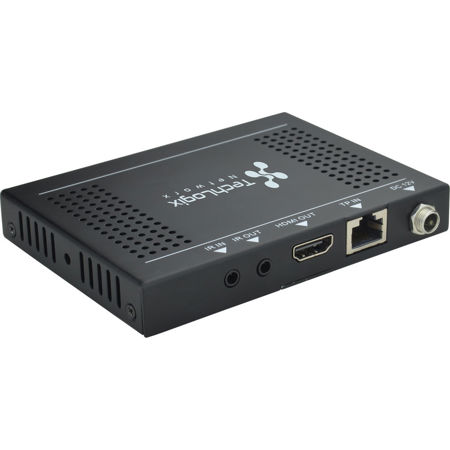

TechLogix TL-TP70-HDIR HDMI & IR Over Twisted Pair Cable Extender, 4K (30) Up to 130'

HDMI cables are great for transmitting audio and video signals short distances, but larger buildings and larger rooms often need electronics inline to ensure signal performance. Simply pulling a long HDMI cable or connecting multiple HDMI cables together can cause signal drop out, interference, pixelization and a host of other signal and performance problems. The TL-TP70-HDIR replaces a traditional HDMI cable with active electronics designed specifically for sending video signals up to 230 feet. Plus, built-in IR control signal embedding allow you to also transmit bi-directional IR commands with the HDMI stream.

In actual practice, this means you can use the TL-TP70-HDIR to send audio and video signals from your source device (often a switcher, cable box or DVD player) to your destination device (often a display or projector) and control the source device remotely all using a single twisted pair cable. In other words, you can install your source device in a remote closet or cabinet and control it with the same remote control used for your display. Now that's a clean installation!

The TL-TP70-HDIR is an ultra thin design extender set consisting of a transmitter and a receiver. Using HDBaseT technology, the set transmits a 1080p signal to the receiver up to 70m via a shieldedCat5e/Cat6 cable. Bi-directional IR communication is included to allow control of an IR source or display. PoC power allows you to connect the power supply at either the transmitter or the receiver to power both units. The set also supports ARC, which enables audio up streaming from display to an audio system using either HDMI or the coax digital output.
