Two Notes Torpedo C.A.B. M+ Speaker Simulator Pedal

Torpedo C.A.B. M+ is a powerful pedal platform providing the foundation to build inspirational tones without your amps or cabinets.

C A B. M+ offers a studio grade, amp-free rig loaded with 32 premium DynIR Virtual Cabinets. Every cabinet includes a choice of 12 room emulations and 8 mics.

Building on the success of the acclaimed Torpedo C.A.B. M, the C.A.B. M+ includes a stunning clean preamp, refined power amps, enhancer, tuner, expanded reverbs and noise gate.

Effortlessly Control the Miking Chain
Pair of C.A.B.M+ with your phone,tablet or compute. Change the cabinet, microphones, room, EQ reverb or edit any parameter via Torpedo Remote or directly from the hardware.

No other pedal platform offers such universal control of the miking chain and with dual miking per cabinet, your rig reaches new heights authenticity and flexibility.

A Beast of a Pedal Platform
Pedals have come a long way in the last 25 years and many of us use them as the foundation of our tone. With a clean preamp and a choice of 8 power amps (EL84, EL34, 6L6, KT88 - Single End or Push Pull, Triode or Pentode), the Torpedo C.A.B. M + is the ultimate pedal platform.

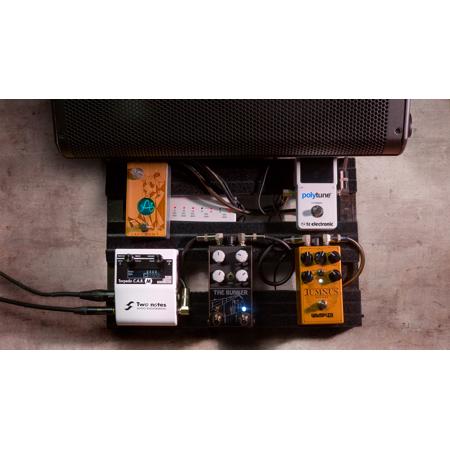

With the Torpedo C.A.B.M+ at the end of your board going direct to your P.A. or interface - the silence in your playing area can be golden but your tone will still be roaring where it matters the most.

MP DI
The preamp and power amp sections can be independently engaged. Therefore, you can place the C.A.B. M+ between your tube amp and a reactive load box to create a 'silent stage' or use the Torpedo C.A.B. M+ with your favourite preamp pedal. This flexibility coupled with DynIR technology and comprehensive I/O, makes Torpedo C.A.B. M+ your secret weapon - no matter how your rig evolves at home, on stage or in the studio.

IR Loader
The Torpedo C A B. M+ not only supports DynIR virtual cabinets but also loads regular (static) IRs. Store hundreds of IRs on the included memory card and effortlessly mix two static IRs files using the C A B. M+ hardware or via Torpedo Remote (phone, tablet or computer). The powerful onboard DSP allows the processing to happen with the minimum of latency - even with the maximum IR length of 200ms, the sound will hit you without any audible delay.

Studio Grade Effects

Clean Preamp
Inspired by an all original 74 Silverface B'man, the preamp is the perfect clean pedal foundation to built stunning tone.

Enhancer
Sometime you need a touch of magic to find the tone for song. Thickness brings the thumps. Brilliance gives you crystal clear highs. Body will fatten your tone.

Power AMPS
4 classic tube types (EL34. EL84. 6L6 and KT88). 2 circuit types (Class A and Class A/13) and 2 tube modes (Pentode and Triode).

Noice Gate
Floor noise problem Remove hiss and hum with the noise gate. Keep your tones tight using the Hard / Soft mode. Learn function adapts to your rig.

Ireveirb
12 rooms to add ambience and life to your tone. From Hall to Cathedral. from Spring through to Plate and Studio, you can find your perfect reverb in moments.

EQ
Refine your tone with instrument voiced 5-band EQ for both guitar and bass, or explore the semi-parametric 6-band custom mode inc. low shelf.

Features

Included DynIR Cabinets & Effects with Torpedo C.A.B. M+

Torpedo C.A.B. M+ ships with a broad selection of 32 DynIR virtual cabinets, a clean preamp (based on an all original '74 SilverFace B'man), tube power amp emulations and a wide range of effects.

Guitar Cabinets
• BDeLuxe: Inspired by Fender Blues Deluxe 1 12
• BigBeast: Inspired by 4 12 Zilla cabinet with Celestion Vintage 30 speakers
• BoGreen: Inspired by Bogner 4 12 Greenbacks G12M25 Reissue in 16 ohms
• Brit 65C: Inspired by Marshall 1965A 4 10 Closed Back with Celestion G10L-35
• Brit Std: Inspired by Marshall 1936 2 12 Celestion G12T
• Brit VintC: Inspired by Marshall 1960A 4 12 closed back Celestion Vintage 30 speakers
• Celestion Ruby Open 1 12: Celestion 1 12 cabinet with Celestion Ruby speaker
• Copperback Closed 4 12 Celestion: Celestion 4 12 cabinet with Celestion Neo 250 Copperback speakers
• DarkPrinz: Inspired by Fender Princeton 1 10 with Oxford 10J4-3 speaker
• Eddie: Inspired by Peavey 5150 2 12 Sheffield 1200
• ENGL E112VB: Engl E112VB with Celestion Vintage 30 speaker
• G12M Greenback Closed 4 12 Celestion: Celestion 4 12 cabinet with Celestion G12M Greenback speakers
• Greatsh: Inspired by Gretsch 6159 amp cabinet with two Jensen C12-PS
• Rand RD112: Inspired by Randall RD112 1 12 angled with Celestion Vintage 30
• Revv 2 12 Open Back V1: Revv 2 12 open back with Warehouse Guitar Speakers Vet 30 and ET 90 drivers
• Revv 4 12 Closed Back V1: Revv 4 12 closed back with Warehouse Guitar Speakers Vet 30 and ET 90 drivers
• Sig H75 LD: Inspired by Two-Rock 2 12 cabinet with Celestion G12-H75 speaker
• Silver77: Inspired by Fender Twin Reverb 2 12 with orange JBL speakers
• Superblue: Inspired by Fender 4 10 Super Reverb
• Tanger Fat: Inspired by PPC412HP 4 12 Orange with Celestion Heritage G12H & G12M Heritage Greenback
• The One: Inspired by Brunetti Neo1512 with 1 12 and 1 15 speakers
• Vibro V30: Inspired by Fender Vibrolux 1 12 Celestion V30 speaker
• Victory Kraken 212V Classic: Victory Kraken 2 12 cabinet with Celestion V30 speakers
• Victory Sheriff 412C Classic: Victory Sheriff 4 12 cabinet with Celestion G12H speakers
• Voice 30: Inspired by Vox AC30 JMI 2 12 Celestion "Silver Bell"
• Watt FanC: Inspired by Hiwatt 2 12 Fane closed back

Bass Cabinets
• BassFlex: Inspired by Ampeg Portaflex B15N with original 15" CTS speaker
• Fridge: Inspired by Ampeg 8 10
• MetalBigBass: Inspired by Hartke 410TP
• OCBass410: Inspired by Form Factor Audio 4 10
• SilverRumble: Inspired by Fender Rumble 500 2 10 with Eminence speakers
• Tio: Inspired by EBS 611 with 1 15 and 1 10 Eminence speakers

Preamp / Power Amp Sim

Clean Preamp
• Inspired by an all original '74 SilverFace B'man
• Unparalleled dynamics and musicality for a warm and responsive pedalboard driven tone
• Transparent clean to warm crunch - bring your pedals to life
• Gain, Volume, Bass, Medium and Treble
• Guitar and bass mode

Power Amp
• Four classic tube types: EL84, EL34, 6L6, KT88
• Two circuit types: Class A (Single Ended) and Class A/B (Push-Pull)
• Two tube modes: Pentode and Triode
• Volume, Contour and Depth

Effects and Tools

Enhancer
• Frequency and dynamic shaping
• Thickness and Brilliance for low-end and high-end emphasis
• Body for shaping the mid-range
• Guitar and bass modes

Reverb (12)
Spring, Plate, Tile, Echo, Studio A, Studio B, Loft, Cathedral, Basement, Hall A, Hall B, Crypt.

EQ
• Post virtual cabinet EQ
• 3 modes: Guitar (5-band), Bass (5-band), Custom
• Custom mode: 5-band semi-parametric (-20dB to +20dB range) plus adjustable low shelf

Noise Gate
• Removes unwanted floor noise
• Noise level "learn" function
• Hard / Soft mode

IR Loader Mode
• Easily switch from DynIR to static IR loader mode
• Store hundreds of static IRs on the included memory card
• Option to blend two standard .wav IRs
• IR lengths up to 200ms
• Adjustable performance mode, ultra-low latency of 2.2ms

Tuner
• Access via hardware or Torpedo Remote
• Customisable "A" frequency from 410Hz to 490Hz

Cabinet Miking

Dynamic IR
• Every DynIR Virtual Cabinet is captured with 8 carefully selected microphones inc. dynamic, condenser and ribbon industry-standard mics.
• DynIRs automatically phase correct as the virtual mics are moved
• Blend two microphones (per cabinet) together
• Have direct access to 400+ Virtual Cabinets via the DynIR Cabinet Collection

Microphone Positioning x 2
• Front and back of cabinet
• Distance: from close miking to room tone
• Axis: from cone center to speaker edge

Wall of Sound Included
This product comes with a lifetime licence for the Torpedo Wall of Sound plug-in.

Load DynIR cabinets directly in your DAW and mix with complete control over your tone.

Torpedo Wall of Sound
The industry standard audio plug-in for virtual miking, power amp simulation and studio grade post effects with Two notes DynIR Technology.

With over 400 DynIR Virtual Cabinets available, each with 8 mics, there is no better way to record your guitar/bass tone and have the tone be consistent, perfect, every time.
