TRENDnet 5-Port 10/100Mbps Switch
See all TRENDnet items

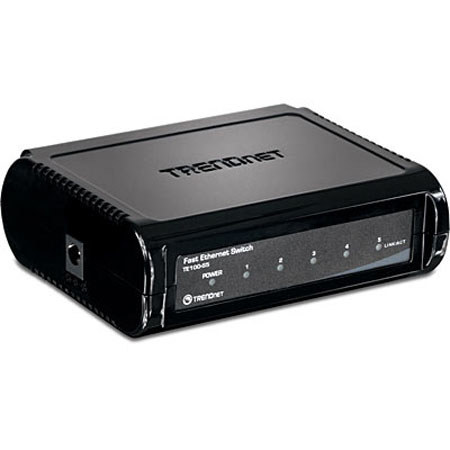

TRENDnet 5-Port 10/100Mbps Switch

SKU: TNE100S5
(1)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular

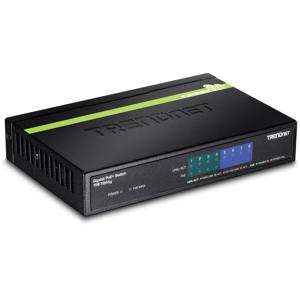

TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2020-06-12T09:45:28

Rated 5 out of 5

Perfect Switch for the Application

Works perfectly for out application. It allows us to connect 3 items to an ethernet connection allowing over the air updates for our equipment.

CHUCK O.

TRENDnet 5-Port 10/100Mbps Switch Specifications

  • Standards

    IEEE 802.3 10Base-T
    IEEE 802.3u 100Base-TX
    IEEE 802.3x Flow Control

  • Network Media

    Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
    Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm

  • Data Rate

    Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
    Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)

  • Switch Fabric

    1Gbps Forwarding Capacity

  • Topology

    Star

  • Interface

    5 10/100Mbps Auto-MDIX RJ-45 Ports

  • Filtering Table

    1K entries per device

  • Buffer Memory

    384Kbits per device

  • Power Consumption

    2.8 watts (max)

  • Diagnostic LED

    Power, Link/ACT, 100Mbps

  • Power Adapter

    Switching Power 5V DC 1.2A or Linear Power 7.5V DC 1A

  • Temperature

    Operating: 0deg. - 50deg. C (32deg. - 122deg. F)

  • Humidity

    10%-90% (Non-Condensing)

  • Dimensions

    100x78x31mm / 3.93x3.07x1.2"

  • Weight

    128g / 4.5oz

  • UPC Code

    710931204179

0 Accessories for TRENDnet 5-Port 10/100Mbps Switch

About TRENDnet 5-Port 10/100Mbps Switch

The TRENDnet 5-Port 10/100Mbps is an Auto-MDIX Switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug and Play provides cost-effective and high performance solutions.

TRENDnet 5-Port 10/100Mbps Switch Features

  • 5 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
  • Compliant with IEEE 802.3 / IEEE 802.3u standards
  • IEEE 802.3x Flow Control support
  • Provide 1K MAC address entries
  • Compliant with Windows, Linux and Mac Operating Systems
  • Store-and-Forward Switching method
  • Non-blocking Architecture
  • Diagnostic LEDs
  • Plug & Play

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 5 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
  • Compliant with IEEE 802.3 / IEEE 802.3u standards
  • IEEE 802.3x Flow Control support
  • Provides 1K MAC address entries
  • Compliant with Windows, Linux and Mac Operating Systems
  • Store-and-Forward Switching method

What's in the box:

  • TRENDnet 5-Port 10/100Mbps Switch
  • Multi-Language Quick Installation Guide
  • Power Adapter
  • TRENDnet 3 Year Limited Warranty
