TRENDnet 24-Port 10/100Mbps Web Smart Switch
See all TRENDnet items

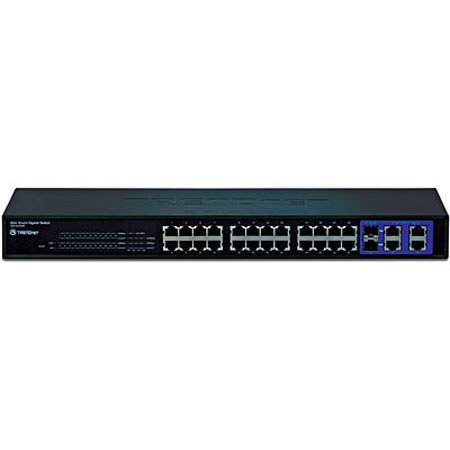

TRENDnet 24-Port 10/100Mbps Web Smart Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots

SKU: TNEG424WS

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 24-Port 10/100Mbps Web Smart Switch Specifications

  • Standards

    IEEE 802.3 10Base-T
    EEE 802.3u 100Base-TX
    IEEE 802.3ab 1000Base-T
    IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
    IEEE 802.3x Flow Control and Back Pressure
    IEEE 802.1D Spanning Tree Protocol
    IEEE 802.1p QoS
    IEEE 802.1Q VLAN Tag
    IEEE 802.1X Authentication
    SNMP v1

  • Network Media

    Ethernet: UTP/STP Cat. 3, 4, 5 up to 100 m
    Fast Ethernet: UTP/STP Cat. 5, 5e up to 100 m
    Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100 m
    Mini-GBIC: LC Type
    Fiber Optic

  • Protocol /Topology

    CSMA/CD, Star

  • Interface

    24 x 10/100 Mbps Auto-MDIX Fast Ethernet Ports
    4 x 10/100/1000 Mbps Auto-MDIX Gigabit Ports
    2 x 1000Base Mini-GBIC slots (shared with Gigabit port 25-26)

  • Data Transfer Rate

    Ethernet: 10 Mbps/20 Mbps (Half/Full-Duplex)
    Fast Ethernet: 100 Mbps/200 Mbps (Half/Full-Duplex)
    Gigabit Ethernet: 2000 Mbps (Full-Duplex)

  • Address Table

    8K Entries

  • Switch Fabric

    12.8 Gbps Forwarding Capacity

  • Data RAM Buffer

    128 KBytes

  • Trunking

    Max 6 Groups Per Device, 8 Ports Per Group

  • Diagnostic LEDs

    Per unit: Power, System
    Per Fast Ethernet port: Link/ACT, 100M
    Per Copper Gigabit port: Link/ACT, 1000M, 100M
    Per Mini-GBIC slot: Link/ACT, Link/ACT, 1000M

  • Power Supply

    100-240V AC, 50/60Hz Internal Power Supply

  • Power Consumption

    19 watts (max)

  • Temperature

    Operating: 0deg.C - 40deg.C (32deg.F - 104deg.F)
    Storage: -10deg.C - 70deg.C (14deg.F - 158deg.F)

  • Humidity

    Operating: 10% - 90% RH (Non-Condensing)
    Storage: 5% - 90% RH (Non-Condensing)

  • Certifications

    CE, FCC

  • Dimensions(W x D x H)

    440x140x44mm / 17.32x5.5x1.73"

  • Weight

    2.1kg / 4.6lbs

  • UPC Code

    710931610116

About TRENDnet 24-Port 10/100Mbps Web Smart Switch

The TRENDnet 24-Port 10/100Mbps Web Smart Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots from TRENDnet is an Ethernet switch, designed for use as part of a Local Area Network (LAN). The switch features 24 10/100Mbps Ethernet ports, 4 Gigabit Ethernet ports and 2 Mini-GBIC slots for uplink expansion module installation. Compatible with all standard Ethernet protocols, the switch can be used to create networks to which computers of any operating system can connect.

TRENDnet 24-Port 10/100Mbps Web Smart Switch Features

  • 24 x 10/100 Mbps Auto-MDIX Fast Ethernet ports
  • 4 x 10/100/1000 Mbps Auto-MDIX Gigabit ports
  • 2 x 1000Base Mini-GBIC slots (shared with Gigabit ports 25-26)
  • 12.8 Gbps switching capacity
  • Store-and-forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Full Duplex Flow Control and Back Pressure
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1X Authentication and SNMP v1 support
  • Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
  • Integrated address look-up engine with an 8K absolute MAC addresses
  • Supports 128 Kbytes data buffering RAM
  • Easy configuration via Web browser
  • Duplex mode and adjustable port speed settings
  • Standard 19" (1U) rackmount design (rackmount kit included)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 24 x 10/100 Mbps Auto-MDIX Fast Ethernet ports
  • 4 x 10/100/1000 Mbps Auto-MDIX Gigabit ports
  • 2 x 1000Base Mini-GBIC slots (shared with Gigabit ports 25-26)
  • 12.8 Gbps switching capacity
  • Store-and-forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Full Duplex Flow Control and Back Pressure

What's in the box:

  • TRENDnet 24-Port 10/100Mbps Web Smart Switch
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power Cord
  • Rackmount kit
  • TRENDnet 3-Years Limited Warranty
