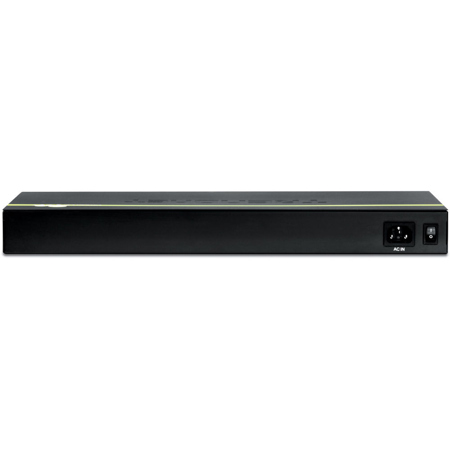

TRENDnet TEG-S24DG 24-Port Gigabit GREENnet Ethernet Switch
See all TRENDnet items

TRENDnet TEG-S24DG 24-Port Gigabit GREENnet Ethernet Switch, 48Gbps Forwarding Capacity, Auto-MDIX Ports

SKU: TNEGS24DG

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TEG-S24DG Specifications

  • Standards

    IEEE 802.3 10Base-T
    IEEE 802.3u 100Base-TX
    IEEE 802.3ab 1000Base-T
    IEEE 802.3x Flow Control
    IEEE 802.3az Energy Efficient Ethernet

  • Network Media

    Ethernet: Cat. 5 up to 100 m
    Fast Ethernet: Cat. 5 and 5e up to 100 m
    Gigabit Ethernet: Cat. 5e and 6 up to 100 m

  • Data Rate

    Ethernet: 10Mbps/20Mbps (half/full-duplex)
    Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
    Gigabit Ethernet: 2000Mbps (full-duplex)

  • Protocol / Topology

    CSMA/CD, Star

  • Power Consumption

    13 Watts (max.)

  • Switch Fabric

    48Gbps

  • Interface

    24 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports

  • Power Button

    On / off Power Button

  • Data RAM Buffer

    3.5 MBits

  • Filtering Table

    8 K Entries

  • Jumbo Frame Support

    Up to 9216Bytes

  • Diagnostic LED

    Power, Link/ACT, 100Mbps, 1000Mbps

  • Power

    100-240VAC, 50/60Hz Internal Universal Switching Power

  • Temperature

    Operating: 0deg. - 40deg. C / 32deg. - 104deg. F
    Storage: -10deg. - 70deg. C / 14deg. - 158deg. F

  • Humidity

    Max. 90% (Non-Condensing)

  • Certifications

    CE, FCC

  • Dimensions

    280x180x44mm / 11x7x1.7"

  • Weight

    1.7kg / 3.74lbs

  • UPC Code

    710931610215

About TRENDnet TEG-S24DG

The TRENDnet TEG-S24DG 24-Port Gigabit GREENnet Ethernet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

TRENDnet TEG-S24DG Features

  • 24 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
  • On / off power switch
  • Features a 48Gbps forwarding capacity
  • Internal power supply reduces clutter
  • GREENnet technology reduces electrical power consumption when: Ethernet port is not in use, Connected device is turned off, Connected device is in power-saving mode, Based on Ethernet cable length
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • Integrated address look-up engine with a 8 K MAC address table and 3.5 MBits RAM data buffer
  • Operates and maximizes packet filtering and forwarding rate
  • Jumbo Frame support up to 9216 Bytes
  • Sturdy metal housing
  • Diagnostic LEDs and Plug & Play support

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 24 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
  • On / off power switch
  • Features a 48Gbps forwarding capacity
  • Internal power supply reduces clutter
  • Reduce power consumption w GREENnet technology
  • IEEE 802.3x Flow Control for full-duplex mode

What's in the box:

  • TRENDnet TEG-S24DG 24-Port Gigabit GREENnet Ethernet Switch
  • Multi-Language Quick Installation Guide
  • 6ft. Power Cord
  • TRENDnet 3 Year Limited Warranty
