TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter
See all TRENDnet items

TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter

SKU: TNFC10MSC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter Specifications

  • Standard

    IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX

  • Supported Frame Size

    Standard Ethernet up to 1518bytes

  • Network Media

    100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
    100Base-FX: Multi-mode fiber optic cable 50/125 um or 62.5/125 um, up to 2km

  • Protocol

    CSMA/CD

  • Ports

    1 x 10/100Base-TX
    1 x 100Base-FX (SC-type)

  • Dip Switch

    FX: duplex mode (half/full)

  • Transfer Rate

    100Mbps (half-duplex)
    200Mbps (full-duplex)

  • Diagnostic LED

    Per Unit: power
    Per Port: link/activity, full-duplex/collision, speed (on fiber port)

  • Power Adapter

    7.5V DC, 1A external power adapter

  • Power Consumption

    1.8 Watts (max)

  • Humidity

    5% - 90%

  • Operating Temperature

    0deg. - 40deg. C (32deg. - 104deg. F)

  • Storage Temperature

    -25deg. - 70deg. C (-13deg. - 158deg. F)

  • Dimensions

    120x88x25mm (4.72x3.46x0.98")

  • Weight

    354g (12.48oz)

  • UPC Code

    710931504163

About TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter

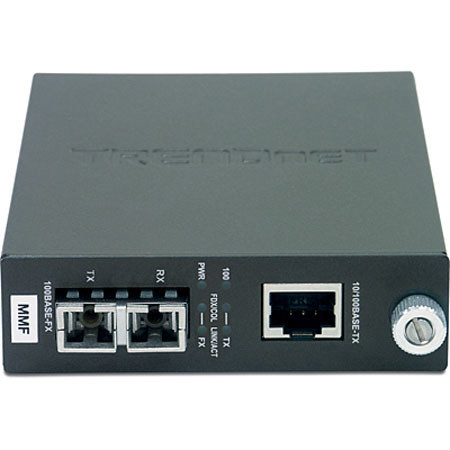

The TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter Features

  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps connection speed and half/full-duplex mode on TX port
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with multi-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex and Speed
  • Dip-switch for full and half duplex selection on fiber port
  • Wall mountable
  • Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps speed and half/full-duplex
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with multi-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex and Speed
  • Dip-switch for full and half duplex selection on fiber port

What's in the box:

  • TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter
  • Multi-Language Quick Installation Guide
  • Power Adapter (7.5V 1A)
  • TRENDnet 3 Year Limited Warranty
