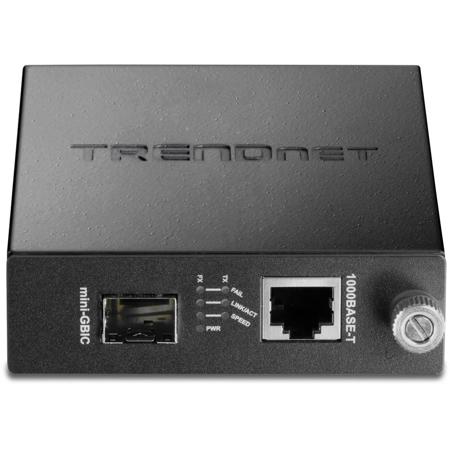

TRENDnet 100/1000BASE-T to SFP Media Converter
See all TRENDnet items

TRENDnet 100/1000BASE-T to SFP Media Converter

SKU: TNFC1MGA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 100/1000BASE-T to SFP Media Converter Specifications

  • Standard

    IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T
    IEEE 802.3u 100Base-FX, IEEE 802.3z 1000Base-SX/LX

  • Supported Frame Size

    Standard Ethernet up to 10Kbytes

  • Network Media

    10/100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UTP/STP, up to 100m
    1000Base-T: Cat. 5E or Cat. 6 EIA/TIA-568 100-ohm UTP/STP, up to 100m
    Multi-mode fiber optic cable 50/125 um, up to 550m
    Multi-mode fiber optic cable 62.5/125 um, up to 220m
    Single-mode fiber optic cable 9/125 um, up to 80km (TEG-MGBS80)

  • Protocol

    CSMA/CD

  • Ports

    1 x 10/100/1000Mbps Gigabit port
    1 x 100/1000Base-SX/LX Mini-GBIC slot for optional Mini-GBIC modules

  • Dip Switch

    Fiber (forced/auto-negotiation), LLCF (enable/disable)

  • Transfer Rate

    200Mbps (full-duplex)
    2000Mbps (full-duplex)

  • Diagnostic LEDs

    Per Unit: Power
    Per Port: Link/Activity/Fail

  • Power Adapter

    5V DC, 1A external power adapter

  • Power Consumption

    3 Watts (max)

  • Operating Temperature

    0deg. - 40deg. C (32deg. - 104deg. F)

  • Storage Temperature

    -25deg. - 70deg. C (-13deg. - 158deg. F)

  • Humidity

    Max. 90% (non-condensing)

  • Dimensions

    120x88x25mm (4.72x3.46x0.98")

  • Weight

    285g (10.05oz)

  • UPC Code

    710931610253

About TRENDnet 100/1000BASE-T to SFP Media Converter

The TRENDnet 100/1000BASE-T to SFP Media Converter is a reliable Plug-and-Play Fiber-to-Ethernet converter in a compact form factor. This versatile fiber converter supports both Multi-Mode (SX) and Single-Mode (LX) fiber standards for transmission distances of up to 80 kilometers (50 miles).The Mini-GBIC slot and Gigabit Ethernet port Auto-Negotiate between 100 and 1000Mbps transmission speeds. Diagnostic LEDs on the front of the converter convey device status. Control Auto-Negotiation (Forced/Auto-Negotiation) and Link Loss Return (Enable/Disable) with an internal dip-switch. This sturdy metal housed converter can be installed as a standalone unit and is compatible with TRENDnet's expandable 16-Bay Fiber Converter Chassis System.

TRENDnet 100/1000BASE-T to SFP Media Converter Features

  • Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
  • 1 x 10/100/1000Base-T RJ-45 port
  • 1 x 100Base-FX/1000Base-SX/LX Mini-GBIC slot
  • Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
  • Support LLCF (Link Loss Carry Forward, Link Pass Through)
  • Monitor and configure Ethernet or Fiber's duplex mode, LLR and receive link down information via management module TFC-1600MM and chassis TFC-1600
  • Status LED indicators for Power, Link/Activity and Fail
  • Compatible with TRENDnet's 16-Bay Fiber Converter Chassis System, model TFC-1600 (holds up to 16 TFC series Media Converters)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compliant with IEEE 802.3ab 1000Base-T & IEEE 802.3z 1000Base-SX/LX standards
  • 1 x 10/100/1000Base-T RJ-45 port
  • 1 x 100Base-FX/1000Base-SX/LX Mini-GBIC slot
  • Provides Dip switch to set
  • Provides Dip switch
  • Support LLCF (Link Loss Carry Forward, Link Pass Through)

What's in the box:

  • TRENDnet 100/1000BASE-T to SFP Media Converter
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V 1A)
  • TRENDnet 3 Year Limited Warranty
