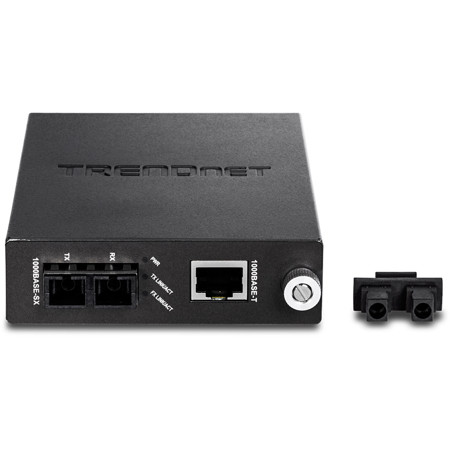

TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter
See all TRENDnet items

TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter

SKU: TNFC1MSC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter Specifications

  • Standard

    IEEE802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX

  • Supported Frame Size

    Standard Ethernet up to 10Kbytes

  • Network Media

    1000Base-T: Cat. 6 EIA/TIA-568 100-ohm UPT/STP, up to 100m
    1000Base-SX: Multi-mode fiber optic cable 50/125 um, up to 550m, 62 5/125um up to 220m

  • Protocol

    CSMA/CD

  • Ports

    1 x 1000Base-T
    1 x 1000Base-SX (SC-type)

  • Dip Switch

    Fiber (forced/auto-negotiation), LLR (enable/disable)

  • Transfer Rate

    2000Mbps (full-duplex)

  • Diagnostic LED

    Per Unit: power
    Per Port: link/activity

  • Power Adapter

    7.5V DC, 1A external power adapter

  • Power Consumption

    2.7 Watts (max)

  • Operating Temperature

    0deg. - 40deg. C (32deg. - 104deg. F)

  • Storage Temperature

    -25deg. - 70deg. C (-13deg. - 158deg. F)

  • Humidity

    Max 90% (non-condensing)

  • Dimensions

    120x88x25mm (4.72x3.46x0.98")

  • Weight

    354g (12.48oz)

  • UPC Code

    710931504156

About TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter

The TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter that supports SNMP and spans distances up to 550m (1,800 ft). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-SX (SC-Type) port.

TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter Features

  • Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX standards
  • 1 x 1000Base-T RJ-45 port
  • 1 x 1000Base-SX multi-mode SC type fiber port
  • Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
  • Support LLCF (Link Loss Carry Forward, Link Pass Through)
  • Support LLR (link Loss Return) for Fiber port
  • Monitor and configure Ethernet or Fiber's duplex mode, LLR and receive link down information via management module TFC-1600MM and chassis TFC-1600
  • Status LED indicators for Power and Link/Activity
  • Wall mountable
  • Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX standards
  • 1 x 1000Base-T RJ-45 port
  • 1 x 1000Base-SX multi-mode SC type fiber port
  • Provides Dip switch to set
  • Provides Dip switch
  • Support LLCF (Link Loss Carry Forward, Link Pass Through)

What's in the box:

  • TRENDnet 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter
  • Multi-Language Quick Installation Guide
  • Power Adapter (7.5V 1A)
  • TRENDnet 3 Year Limited Warranty
