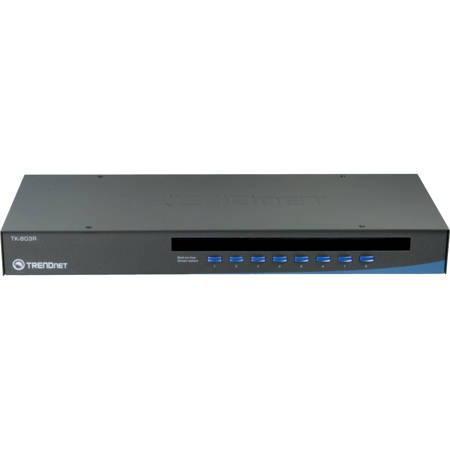

TRENDnet TK-803R 8-Port Rack Mount KVM Switch
See all TRENDnet items

TRENDnet TK-803R 8-Port Rack Mount KVM Switch

SKU: TNK803R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TRENDnet TK-803R Specifications

  • Connections

    8 computers/servers

  • Standard

    USB 1.1 Compliant

  • PC Ports

    8 x VGA HDB 15-pin (female)

  • Console Port

    1 x USB (Type A) / PS/2 (6-pin mini-DIN) mouse
    1 x USB (Type A) / PS/2 (6-pin mini-DIN) keyboard
    1 x VGA HDB 15-pin (female)

  • Cable Interface Sold Separately)

    To KVM:
    1 x VGA HDB 15-pin (male)
    To Computer:
    1 x VGA HDB 15-pin (male)
    1 x USB (Type A)

  • Supported OS

    Windows, Linux, Mac and more

  • PC Selection

    Keyboard hot key command or push button

  • Auto-Scan Interval

    10-99 seconds (Programmable through hot key)

  • LEDs

    On-line (Red), Select (Green)

  • Keyboard Status

    Saved & restored

  • Power Adapter

    Input: 100 - 240V AC 50-60Hz
    Output: 9VDC 1A external power adapter

  • Temperature

    Operating: 0deg.C-40deg.C (32deg.F-104deg.F)
    Storage: -20deg.C-60deg.C (-4deg.F-140deg.F)

  • Humidity

    Max 80% (non-condensing)

  • Dimensions

    407x165x45mm / 16.0x6.5x1.77"

  • Weight

    1.83 kg / 4.03 lbs

  • UPC Code

    710931304305

About TRENDnet TK-803R

The TRENDnet TK-803R 8-Port Rack Mount KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.

TRENDnet TK-803R Features

  • Controls up to 8 computers or servers
  • Supports both USB and PS/2 Interface for console port
  • Supports Windows, Linux, Mac OS and more
  • High video quality, up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via PC port
  • Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
  • Keyboard status restored when switching between computers
  • LEDs display for easy status monitoring
  • Beeping sound for port switching confirmation (enable/disable)
  • Keyboard hot key command or push button switching
  • Plug & Play and Hot-Pluggable
  • Standard 19" (1U) rack mount design

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Controls up to 8 computers or servers
  • Supports both USB and PS/2 Interface for console port
  • Supports Windows, Linux, Mac OS and more
  • High video quality, up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via PC port
  • Auto-scan for monitored PCs

What's in the box:

  • TRENDnet TK-803R 8-Port Rack Mount KVM Switch
  • Quick Installation Guide
  • Power Adapter (9V DC 1A)
  • Rack Mount Kit
  • TRENDnet 2 Years Limited Warranty
