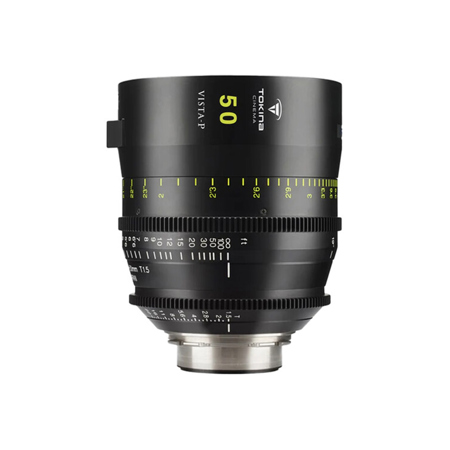

The Vista-P Prime T1.5 lens has an innovative design that increases the spacing between air and glass surfaces, creating a unique bokeh effect and lower contrast look. It's a refinement of the original Vista Prime series.
The fast T1.5 9-blade aperture allows for exceptional bokeh, giving your images a beautiful, soft out-of-focus area. It also performs well in low light conditions.
Nearly zero focus breathing means that the size and position of your subject remain consistent even when you change focus, providing a more seamless viewing experience.
The Vista-P Prime T1.5 lens offers a vintage aesthetic, replicating the reduced contrast and unique bokeh rendering found in vintage lenses but in a modern housing. This gives your images a classic, timeless feel.
The Vista-P Prime T1.5 lens offers coverage up to 65mm for large format sensors, providing versatile shooting options.
Review Summary
18mm, 25mm, 35mm, 40mm, 50mm, 65mm, 85mm, 105mm, 135mm
PL Mount
Full Frame
18mm: 14 Groups 17 Elements
25mm: 15 Groups 16 Elements
35mm/65mm/85mm: 13 Groups 14 Elements
40mm: 14 Groups 15 Elements
50mm: 10 Groups 13 Elements
105mm: 13 Groups 16 Elements
135mm: 14 Groups 16 Elements
46.7mm
18mm/40mm: 17.7" (0.45m)
25mm: 13.8" (0.35m)
35mm: 16" (0.41m)
50mm: 19" (0.48m)
65mm: 27" (0.69m)
85mm: 37.5" (0.95m)
105mm: 45" (1.15m)
135mm: 55" (1.4m)
18mm: 1:14.37
25mm: 1:7.8
35mm: 1:7.81
40mm: 1:7.99
50mm: 1:7.01
65mm: 1:8.59
85mm: 1:9.92
105mm: 1:9.88
135mm: 1:9.75
Imperial/Internal Focus System
300 Degree
9
T1.5
T22
112mm
114mm
18mm/25mm/35mm/40mm/50mm/65mm/85mm/105mm: 4.48" (114mm) (Excluding Tripod Collar)
135mm: 4.88" (124mm) (Excluding Tripod Collar)
Overall:
18mm: 7.16" (182mm)
25mm: 6.1" (155mm)
35mm/50mm/85mm: 5.7" (145mm)
40mm: 6.29" (160mm)
65mm/105mm: 6.33" (161mm)
135mm: 7.36" (187mm)
From Mount Surface:
18mm: 6.61" (168mm)
25mm: 5.55" (141mm)
35mm/50mm/85mm: 5.15" (131mm)
40mm: 5.74" (146mm)
65mm/105mm: 5.78" (147mm)
135mm: 6.81" (173mm)
18mm: 6.19 lbs (2.81kg)
25mm: 5.11 lbs (2.32kg)
35mm: 4.59 lbs (2.08kg)
40mm: 5.22 lbs (2.37kg)
50mm: 4.94 lbs (2.24kg)
65mm: 5.34 lbs (2.42kg)
85mm: 5.05 lbs (2.29kg)
105mm: 5.93 lbs (2.69kg)
135mm: 6.88 lbs (3.12kg)
4968808222191
| Models | SKU: TNKPC310 $7,499.00 Special Order 9 Styles Available Generally ships in 7-14 days, subject to availability | SKU: TNCV40T15PL MFR: KPC-3008PL $7,499.00 Special Order Generally ships in 7-14 days, subject to availability | SKU: TN35T15PL MFR: KPC-3001PL $5,999.00 Special Order Generally ships in 7-14 days, subject to availability |
|---|---|---|---|
| Kit Style | Base | Base | Base |
| Format | Full Frame | Full Frame | Full Frame, VistaVision |
| Lens Type | NA | Standard | Wide Angle |
| Fixed Focal Length | NA | 40mm | 35mm |
| Lens Mount | PL Mount | PL Mount | PL Mount |
| Maximum Aperture | T1.5 | T1.5 | T1.5 |
| Zoom Focal Length | NA | NA | NA |
| Focus Type | Manual Focus | Manual Focus | Manual Focus |
Vista-P Prime T1.5 - Vista Lens Collection
Beyond Full Frame
Featuring High resolution modern optics with free form design for visual acuity matching the human eye.
Fast. Precision. Large Format
Vista Prime Improved
We improved on our popular Vista Prime series with the Vista-P series. This series adds greater spacing between air to glass surfaces creating a lower contrast look with strong spherical distortion for a swirly bokeh Petzval type effect. Available as brand new lenses or as an upgrade service to your existing lenses, this is a one-way modification that allows for increased creative options.
Craft With Control
Create images with complete control using the fast T1.5 9-blade aperture for exceptional bokeh. Provide continuity with nearly zero focus breathing optical design to leave your subject right where you left it.
Vintage Look
Vintage lenses are known for their reduced contrast and imperfect bokeh rendering. The Vista-P gives you similar image characteristics but in a modern housing and an ultra fast T1.5 allowing for more options in low light or shallow depth of field. The modifications in this series make for a vintage style lens with modern features and coverage up to 65mm large format sensors.
