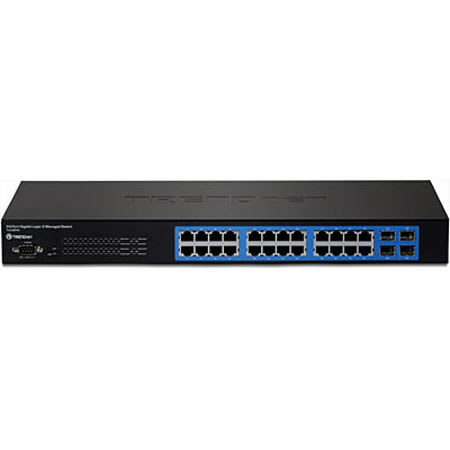

TRENDnet 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots
See all TRENDnet items

TRENDnet 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots

SKU: TNL2G244

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots Specifications

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3z 1000BASE-X SX/LX
    IEEE 802.3x Flow Control and Back Pressure
    IEEE 802.3ad Link Aggregation/Port Trunking (LACP)
    IEEE 802.1d Spanning Tree (STP)
    IEEE 802.1w Rapid Spanning Tree (RSTP)
    IEEE 802.1s Multiple Spanning Tree (MSTP)
    IEEE 802.1p Quality of Service/Class of Service (QoS/CoS)
    IEEE 802.1Q VLAN Tagging and GVRP
    IEEE 802.1X Port-Based Network Access Control

  • Interface

    24 x 10/100/1000Mbps Auto-MDIX Gigabit ports
    4 x shared SFP (Mini-GBIC) slots
    1 x RS-232 console port for switch management

  • Cabling

    Network:
    10Base-T: UTP/STP Cat. 5 cable (100 m)
    100Base-TX: UTP/STP Cat. 5, 5e cable (100 m)
    1000Base-T: UTP/STP Cat 5e, 6 cable (100 m)
    Mini-GBIC:
    LC (Multi-Mode): 50/125um-62.5/125um
    LC (Single Mode): 9/125um-10/125um

  • Switching Method

    Store-and-Forward

  • Protocol/Topology

    (CSMA/CD) / Star

  • Buffer Memory

    4Mbit data buffer

  • Filtering Address Table

    8K MAC address entries

  • Switch Fabric/Capacity

    Up to 48Gbps

  • Forwarding Rate

    35.7Mpps

  • LED Display

    PWR (Green): Power, SYS (Green): System
    10/100M Link/ACT (Amber): 10/100Mbps Link/Activity (per Ethernet port)
    1000M Link/ACT (Green): 1000Mbps Link/Activity (per Ethernet port)
    100M Link/ACT (Amber): 10/100Mbps Link/Activity (per SFP slot)
    1000M Link/ACT (Green): 1000Mbps Link/Activity (per SFP slot)

  • Power

    Input: 100-240VAC, 50/60Hz internal power supply

  • Power Consumption

    21.79 W

  • Temperature

    Operating: 0deg. - 40deg. C (32deg. - 104deg. F)
    Storage: -10deg. - 70deg. C (14deg. - 158deg. F)

  • Humidity

    Max. 90% (non-condensing)

  • Certifications

    CE, FCC

  • Management

    SNMP v1, v2c, v3, HTTP/HTTPS Web, Telnet, SSH, console

  • Spanning Tree

    802.1d STP (Spanning Tree Protocol)
    802.1w RSTP (Rapid Spanning Tree Protocol)
    802.1s MSTP (Multiple Spanning Tree Protocol)

  • Link Aggregation

    Static Link Aggregation
    802.3ad Dynamic LACP

  • Quality of Service

    802.1p Class of Service

  • VLAN

    Asymmetric VLAN
    802.1Q Tagged VLAN and Dynamic GVRP
    Up to 256 static/dynamic groups

  • IGMP

    Support IGMP Snooping v1/2
    Up to 64 multicast entries

  • Port Mirror

    RX, TX, or both

  • Security

    MAC Address learning, ACL L2/L3/L4
    User Authentication: 802.1X Port-Based Network Access Control, Local User Database

  • Frame Size

    10,000 Bytes (max.)

  • Bandwidth Control

    Bandwidth control per port

  • Flow Control

    802.3x Flow Control for Full-Duplex and back pressure for Half-Duplex

  • Firmware Update

    Support TFTP firmware update, TFTP backup and restore, via Web Browser

  • Dimensions

    440x210x44mm / 17.32x8.26x1.73"

  • Weight

    2.9kg / 6.39lbs

  • UPC Code

    710931508024

About TRENDnet 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots

The TRENDnet 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots provides a reliable foundation for a highly scalable managed network. The TL2-G244 features a 48Gbps switch fabric, 802.1x authentication, SNMP v3 and Multiple Spanning Tree (MSTP) support.

Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks to backbone switching or servers. Configure the switch using your choice of Telnet, HyperTerminal, SNMP, or a Browser. View statistics captured for 17 unique switching parameters. Additional management features such as Port Trunking, IGMP snooping, Static and Dynamic VLAN, Load Balancing, RMON, QoS and RSTP allow administrators to effectively manage departmental work groups.

TRENDnet 24-Port Gigabit Layer 2 Switch with 4 Shared Mini-GBIC Slots Features

  • 24 x 10/100/1000Mbps Auto -MDIX Gigabit ports
  • 4 x shared SFP (Mini-GBIC) slots
  • 1 x RS-232 console port
  • 8K MAC address entries
  • 4Mbit data RAM Buffer
  • 802.1Q Tagged VLAN, Dynamic VLAN Learning GVRP and Asymmetric VLAN (Up to 256 VLAN Groups)
  • Spanning Tree Protocols: 802.1d STP, 802.1w RSTP and 802.1s MSTP
  • Quality of Service (QoS): Port-based QoS and bandwidth rate control, IEEE 802.1p and DSCP
  • 802.1X Port-Based Access Control and RADIUS Authentication
  • IGMP snooping v1, v2 (Up to 64 entries)
  • Link Aggregation and Port Trunking: Static and 802.3ad Dynamic LACP
  • Store-and-Forward switching method
  • 802.3x Flow Control for full duplex and backpressure for half duplex operation
  • Broadcast, Multicast and DLF(Destination Lookup Failure) Storm Filtering protection
  • Supports port status control (enable/disable, auto-negotiation, speed, duplex and flow-control)
  • Port Mirroring for network traffic analysis
  • Syslog support for external device logging
  • Switch management with: SNMP v1, v2c, v3, Telnet, SSH, Console (RS-232), HTTP/HTTPS web browser, RMON (4 groups)
  • Front panel diagnostic LED indicators

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Spanning Tree Protocols
  • Quality of Service (QoS)
  • Link Aggregation and Port Trunking
  • 24-Port Gigabit Layer 2 Switch
  • Switch management

What's in the box:

  • TRENDnet 24-Port Gigabit Layer 2 Switch
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Power Cord (1.8 m / 5.9 ft.)
  • RS-232 Cable (3 m / 9.8 ft.)
  • Rack Mounting Kit
  • TRENDnet 3 Year Limited Warranty
