TRENDnet 8-Port 10/100Mbps Fast Ethernet Switch
See all TRENDnet items

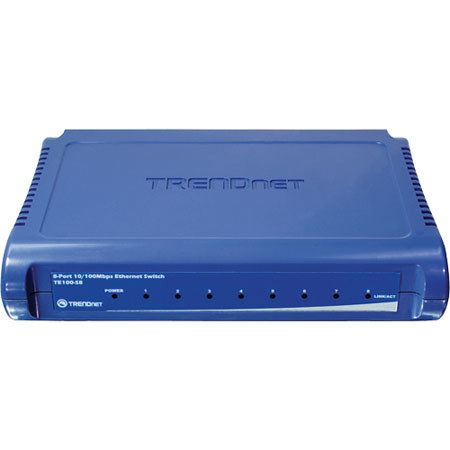

TRENDnet TE100-S8 8-Port 10/100Mbps Fast Ethernet Switch

SKU: TNTE100S8

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TE100-S8 Specifications

  • Hardware Standards

    IEEE 802.3 10Base-T
    IEEE 802.3u 100Base-TX
    IEEE 802.3x Flow Control

  • Network Media

    Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
    Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm

  • Data Rate

    Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast
    Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)

  • Switch Fabric

    1.6Gbps Forwarding Capacity

  • Topology

    Star

  • Interface

    8 10/100Mbps Auto-MDIX RJ-45 Ports

  • Filtering Table

    1K Entries per device

  • Buffer Memory

    512Kbits per device

  • Power Consumption

    2.8 watts (max)

  • Diagnostic LED

    Power, Link/ACT, 100Mbps

  • Power Adapter

    Switching Power 5V DC 800mA
    Linear Power 7.5V DC 1A

  • Temperature

    Operating: 0½ ~ 50½ C (32½ ~ 122½ F)

  • Humidity

    10%~90% (Non-Condensing)

  • Certification

    CE, FCC

  • Dimension

    154 x 110 x 33mm (6 x 4.3 x 1.3 inches)

  • Weight

    225g (8oz.)

  • UPC Code

    710931204186

About TRENDnet TE100-S8

The TRENDnet TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.

TRENDnet TE100-S8 Features

  • 8 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
  • Compliant with IEEE 802.3 / IEEE 802.3u standards
  • IEEE 802.3x Flow Control support
  • Provide 1K MAC address entries
  • Compliant with Windows, Linux and Mac Operating Systems.
  • Store-and-Forward Switching method
  • Non-blocking Architecture
  • Diagnostic LEDs
  • Plug & Play

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 8 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
  • Compliant with IEEE 802.3 / IEEE 802.3u standards
  • IEEE 802.3x Flow Control support
  • Provide 1K MAC address entries
  • Compliant with Windows, Linux and Mac Operating Systems.
  • Store-and-Forward Switching method

What's in the box:

  • TRENDnet TE100-S8 8-Port 10/100Mbps Fast Ethernet Switch Multi-Language QuickInstallation Guide
  • Power Adapter (5V DC 800mA)
  • TRENDnet 5 Years Limited Warranty
