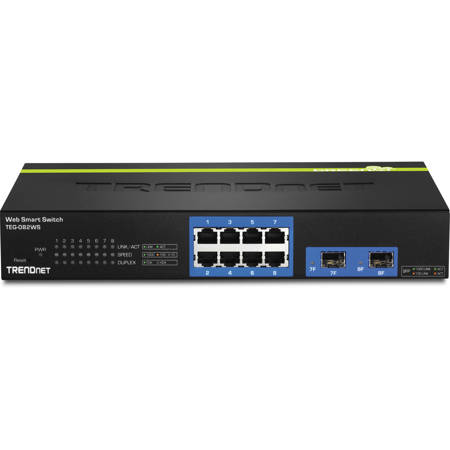

TRENDnet TEG-082WS 8-Port Gigabit Web Smart Switch, Version v1.0R
See all TRENDnet items

TRENDnet TEG-082WS 8-Port Gigabit Web Smart Switch, Version v1.0R

SKU: TNTEG082WS

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TEG-082WS Specifications

  • Standards

    IEEE 802.1D
    IEEE 802.1Q
    IEEE 802.1S
    IEEE 802.1X
    IEEE 802.1p
    IEEE 802.1w
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3z
    IEEE 802.1ab
    IEEE 802.3ab
    IEEE 802.3ad
    IEEE 802.3az

  • Device Interface

    8x Gigabit ports (ports 1-8)
    2x Shared SFP slots (shared with ports 7 - 8)
    LED indicators

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    Gigabit Ethernet: 2000 Mbps (full duplex)

  • Performance

    Switch fabric: 16 Gbps
    RAM buffer: 1 MB
    MAC Address Table: 16K entries
    Jumbo Frames: 10 KB
    HOL Blocking Prevention
    Forwarding rates: 11.9 Mpps (64-byte packet size)

  • Management

    HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
    SNMP v1, v2c, v3
    RMON v1
    Static Unicast MAC Address
    Enable/disable 802.3az Power Saving
    LLDP
    Virtual Cable Test
    IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

  • MIB

    MIB II RFC 1213
    Bridge MIB RFC 1493
    Bridge MIB Extension RFC 2674
    SNMPv2 MIB RFC 1907
    Ethernet Interface MIB RFC 1643
    Ethernet like MIB RFC 2863
    Interface Group MIB RFC2233
    MIB Traps Convention RFC 1215
    RMON MIB RFC 1757, RFC 2819
    802.1p MIB RFC 2674
    RADIUS Client Authentication MIB RFC 2618
    LLDP-MIB IEEE 802.1ab
    Ping MIB RFC 2925, RFC 4560

  • Spanning Tree

    IEEE 802.1D STP (Spanning Tree protocol)
    IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
    IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

  • Link Aggregation

    Static Link Aggregation
    802.3ad Dynamic LACP

  • Quality of Service (QoS)

    802.1p Class of Service (CoS)
    DSCP (Differentiated Services Code Point)
    Bandwidth Control per port
    Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

  • VLAN

    Multiple management VLAN assignment
    Asymmetric VLAN
    802.1Q Tagged VLAN
    Dynamic GVRP
    Up to 256 VLAN groups, ID Range 1-4094
    Private VLAN (Protected Ports)
    Voice VLAN (10 user defined OUIs)

  • Multicast

    IGMP Snooping v1, v2, v3 (per VLAN)
    Static Multicast Address
    Up to 256 multicast entries

  • Port Mirror

    RX, TX, or Both
    One to one
    Many to one

  • Access Control

    802.1X Port-Based Network Access Control, RADIUS, TACACS+
    Local Dial In User Authentication
    DHCP Snooping (per VLAN)
    Loopback Detection
    Duplicated Address Detection
    Trusted Host
    Denial of Service (DoS)

  • ACL IPv4 L2-L4 & IPv6

    MAC Address
    VLAN ID
    Ether Type (IPv4 only)
    IP Protocol 0-255
    TCP/UDP Port 1-65535
    802.1p
    DSCP (IPv4 only)
    IPv6 Address (IPv6 only)

  • Compatibility

    Optional Software Utility: Windows 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server

  • Special Functions

    Fanless design
    IPv6
    802.3az power saving
    Rack mountable

  • Power

    Input: 100 - 240 V AC, 50/60 Hz, internal power supply
    Consumption: 13.8 Watts (Max.)

  • MTBF

    1,054,337 hours

  • Temperature

    Operating: 0 to 45 deg. C / 32 to 113 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC

  • Rack mountable

    1U height

  • Dimensions

    280 x 180 x 44mm / 11.02 x 7.09 x 1.73"

  • Weight

    1.5kg / 3.31lbs

  • UPC Code

    710931140071

About TRENDnet TEG-082WS

TRENDnet's fanless 8-Port Gigabit Web Smart Switch, model TEG-082WS, offers 8 x Gigabit ports, 2 x shared SFP slots, a built-in power supply and a 16 Gbps switching capacity. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet and monitoring features at a reduced cost.

• 8x Gigabit ports
• 2x shared SFP slots
• 16 Gbps switching capacity
• Built-in power supply
• Advanced Web Smart management
• Fanless design reduces energy consumption and operating noise
• Rackmount brackets included

Hardware Design
Provides 8 x Gigabit ports, 2 x shared SFP slots, a 16 Gbps switching capacity, a built-in power supply and rackmount brackets.

Fanless
Fanless design reduces energy consumption and operating noise.

IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP and MSTP) and QoS queue scheduling.

Troubleshooting
Real time traffic comparison charts, error group charts and a convenient cable diagnostic test aid in rapid troubleshooting.

Access Controls
Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+ and RADIUS are compatible with layered network access controls.

Monitoring
RMON, SNMP, SNMP Trap and Port Mirroring support administrator monitoring solutions.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TEG-082WS 8-Port Gigabit Web Smart Switch
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User's Guide)
  • 1.8m/6' Power Cord
  • Rack Mount Hardware
  • TRENDnet Lifetime Limited Warranty
