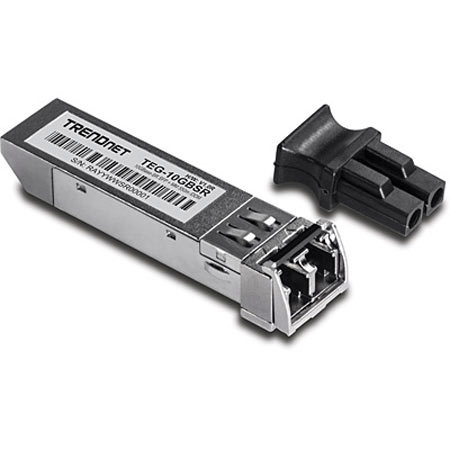

TRENDnet TEG-10GBSR 10GBASE-SR SFP+ 550m Multi Mode LC Module, Version v1.0R
See all TRENDnet items

TRENDnet TEG-10GBSR 10GBASE-SR SFP+ 550m / 1804.44' Multi Mode LC Module with DDM, Version v1.0R

SKU: TNTEG10GBSR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TEG-10GBSR Specifications

  • Standards

    IEEE 802.3ae
    10GBASE-SR

  • Device Interface

    SFP+ MSA Compliant
    LC duplex connector

  • Data Transfer Rate

    8.5-10.5 Gbps

  • Wavelength

    850 nm

  • Optical Output Power

    -1 to -7.5 dBm

  • Distance

    550m / 1804.44' (OM4)
    300m / 984.24' (OM3)
    82m / 269.03' (OM2)
    33m / 108.27' (OM1)

  • Special Functions

    Hot pluggable
    Metal enclosure
    DDM support

  • Sensitivity

    -14 dBm

  • Power Consumption

    439 mW

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Operating Humidity

    Max. 95% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    14.8 x 56.5 x 11.85mm / 0.58 x 2.22 x 0.47"

  • Weight

    22g / 0.78oz

About TRENDnet TEG-10GBSR

TRENDnet's hot-pluggable TEG-10GBSR, 10GBASE-SR SFP+ Multi Mode LC Module, works with a MSA compliant SFP+ slot. This Multi Mode transceiver spans distances up to 550 meters (1,804 feet), comes with a LC duplex connector and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature and voltage.

• Hot-pluggable SFP+ transceiver
• SFP+ MSA compliant
• Supported throughput up to 10.5 Gbps
• Multi Mode fiber for distances up to 550 m (1,804 feet)
• 850 nm wavelength
• Duplex LC connector
• Digital Diagnostics Monitoring (DDM) support
• Single 3.3 V power supply

Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot.

Fiber Wavelength
Compatible with Multi Mode 850 nm transmissions.

Fiber Distance
Supports networking for distances up to 550 meters (1,804 feet) .

Fiber Port
LC-type duplex connector.

DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature and voltage.

Power Supply
Single 3.3 volt power supply.

Operating Temperature
Rated for an operating temperature range of 0 to 70 deg.C (32 to 158 deg.F) .

Standards
Compliant with SFF-8431, SFF-8432, SFF-8472, FC-PI-4,10G FC and IEEE802.3ae 10GBASE-SR

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TEG-10GBSR 10GBASE-SR SFP+ 550m / 1804.44' Multi Mode LC Module with DDM
  • TRENDnet 3 Year Limited Warranty
