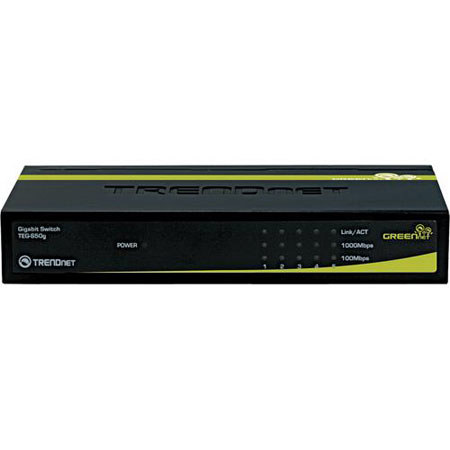

TRENDnet TEG-S50g 5-Port Gigabit GREENnet Switch

SKU: TNTEGS50G

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-08-28T20:00:00

Rated 5 out of 5

Works as advertised

Works as advertised simple connection didn’t even need directions!

pacoucd

2020-07-23T20:00:00

Rated 5 out of 5

Fast & Efficient...

Easy setup (Plug & Play), 5 fast Gigabit ports, and uses up to 70% less power than other devices. It's been in use 24-7 since the day I got it with absolutely no issues. My highest recommendation.

Bob990

2020-04-17T20:00:00

Rated 5 out of 5

a Great Ethernet Connection

I was able to hook two computers up to one Ethernet cable and they worked fine.

Rick

2020-03-22T20:00:00

Rated 5 out of 5

more than enough

it's cheap and works as well as the big boys. had no trouble setting it up and solved all our far end distribution problems. would recommend to anyone.

alph

2011-01-07T19:00:00

Rated 5 out of 5

Plug n Play and works good

Bought it on a Dell Days sales and works great. Attached it to my router to get me more ports. Autodetects and everything is working as a switch should. Solid durable metal. Not a big a green guy but nice bonus power saving features.

Spawn

2010-09-15T20:00:00

Rated 5 out of 5

Fast - and Auto MDIX

This switch will automatically detect connection speed, and doesn't discriminate over cable type (cross/straight thru since it has auto MDIX. I was VERY pleasantly surprised by the quality. This one and the 8 port often go on sale so if it does, scoop it up!

c11gordo2

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TRENDnet TEG-S50g Specifications

  • Hardware Standards

    IEEE 802.3 10Base-T
    IEEE 802.3u 100Base-TX
    IEEE 802.3ab 1000Base-T
    IEEE 802.3x Flow Control

  • Network Media

    Ethernet: Cat. 3,4,5, up to 100m
    Fast Ethernet: Cat. 5, up to 100m
    Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m

  • Data Rate

    Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
    Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
    Gigabit Ethernet: 2000Mbps (Full-Duplex)

  • Protocol / Topology

    CSMA/CD, Star

  • Power Consumption

    3.67w (max)

  • Switch Fabric

    10Gbps Forwarding Capacity

  • Interface

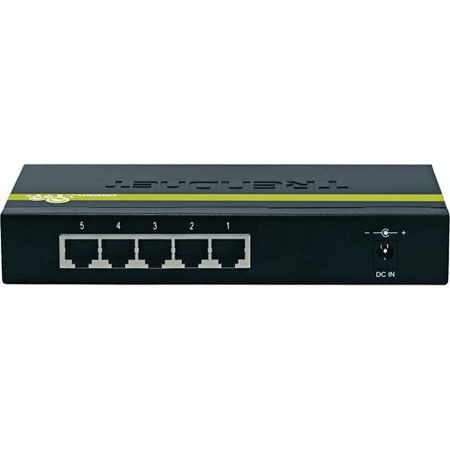

    5 10/100/1000Mbps Auto-MDIX RJ-45 Ports

  • Data RAM Buffer

    104KBytes

  • Filtering Table

    4K entries

  • Diagnostic LED

    Power, Link/ACT, 100Mbps, 1000Mbps

  • Power Adapter

    7.5V DC, 1A external power adapter

  • Temperature

    Operating: 0½ ~ 40½ C (32½ ~ 104½ F)
    Storage: -10½ ~ 70½ C (14½ ~ 158½ F)

  • Humidity

    5%~90% (non-condensing)

  • Certifications

    FCC, CE

  • Dimension

    171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)

  • Weight

    430g (15.2 oz)

  • UPC Code

    710931610147

About TRENDnet TEG-S50g

FEATURED REVIEWS

Plug n Play and works good

By Spawn

Bought it on a Dell Days sales and works great. Attached it to my router to get me more ports. Autodetects and everything is working as a switch should. Solid durable metal. Not a big a green guy but nice bonus power saving features.

Fast - and Auto MDIX

By c11gordo2

This switch will automatically detect connection speed, and doesn't discriminate over cable type (cross/straight thru since it has auto MDIX. I was VERY pleasantly surprised by the quality. This one and the 8 port often go on sale so if it does, scoop it up!

The compact 5-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

TRENDnet TEG-S50g Features

  • 5 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Integrated address look-up engine with 4K absolute MAC address table and 104KBytes RAM data buffering
  • Operates and maximizes packet filtering and forwarding rate

Key Features

  • Integrated address look-up engine

What's in the box:

  • TRENDnet TEG-S50g 5-Port Gigabit GREENnet Switch
  • Multi-Language Quick Installation Guide
  • TRENDnet 5 Years Limited Warranty
