TRENDnet TEW-740APBO Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.1d
    IEEE 802.1p
    IEEE 802.1Q
    IEEE 802.1X
    IEEE 802.11d
    IEEE 802.11e
    IEEE 802.11f
    IEEE 802.11h
    IEEE 802.11i
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (2.4 GHz up to 300 Mbps)

  • Hardware Interface

    1x 10/100 Mbps port (proprietary PoE max. cable length 70 m)
    Reset button
    LED indicators

  • Special Functions

    IP67 weather rated
    802.1Q VLAN assignment per SSID
    DDNS support for dyn.com, no-ip.com
    Schedule radio on/off time policy

  • Access Control

    Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
    Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough
    Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting
    802.1Q VLAN

  • QoS

    WMM
    Diffserv (DSCP)/ToS
    802.1p/CoS

  • Operation Modes

    Access Point (AP)
    Wireless Distribution System (WDS)
    AP + WDS
    Repeater
    CPE + AP

  • SSID

    Up to 8 SSIDs

  • Internet Connection Types (CPE mode)

    Dynamic IP (DHCP)
    Static IP (Fixed)
    PPPoE (Dynamic IP/Static IP)
    PPTP (Dynamic IP/Static IP)

  • Management/Monitoring

    Local/remote web based management (HTTP, HTTPS)
    Local/remote CLI based management (Telnet, SSH)
    SNMP v1/v2c/v3
    SNMP Trap
    MIB II
    Upgrade firmware
    Backup/restore configuration
    Event logging
    Reboot
    Restore to factory defaults
    Ping test
    Ping Watchdog

  • Routing

    Static, Dynamic (RIP v1/2, OSPF)

  • Frequency

    FCC: 2.412 - 2.462 GHz, ETSI: 2.412 - 2.472 GHz, IC: 2.412 - 2.462 GHz

  • Wireless Channels

    FCC: 1-11, ETSI: 1-13

  • Modulation

    802.11b: DBPK, DQPSK, CCK with DSSS
    802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

  • Media Access Protocol

    CSMA/CA with ACK

  • Antenna Gain

    10 dBi internal sector antenna

  • Wireless O/P Power/Receiving Sensitivity

    802.11b: FCC/ETSI: FCC: 28 dBm (max.), ETSI: 10.6 dBm (max.), IC: 28 dBm (max.)/-88 dBm (typical) at 11 Mbps
    802.11g: FCC/ETSI: FCC: 27 dBm (max.), ETSI: 10.7 dBm (max.), IC: 27 dBm (max.)/- 74 dBm (typical) at 54 Mbps
    802.11n: FCC/ETSI: FCC: 28 dBm (max.), ETSI: 10.7 dBm (max.), IC: 28 dBm (max.)/- 69 dBm (typical) at 300 Mbps

  • Power

    Input: 100 - 220 V, 50 - 60 Hz, 0.6 A
    Output: 48v / 0.5A
    Consumption: 22 Watts Max.

  • Operating Temperature

    -30 to 60 deg. C / -22 to 140 deg. F

  • Operating Humidity

    Max. 99% non-condensing

  • Certifications

    CE, FCC

  • Dimensions

    218 x 125 x 54mm / 8.58 x 4.92 x 2.13"

  • Weight

    424g / 14.96oz

  • UPC Code

    710931160819

About TRENDnet TEW-740APBO

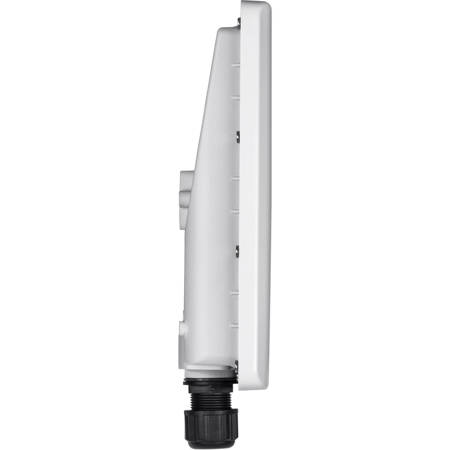

TRENDnet's 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides Wireless N300 building-to-building connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater and CPE + AP modes. The IP67 rated housing comes with wall and pole mounting hardware.

• Wireless N300 building-to-building networking (2.4 GHz)
• Supports Access Point (AP), Wireless Distribution System (WDS), Repeater and Wireless Client modes
• IP67 rated housing
• Built in 10 dBi directional sector antenna

Point-to-Point
Wireless N300 building-to-building networking (2.4 GHz).

Installation Flexibility
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater and Wireless Client modes .

Outdoor Ready
IP67 rated housing .

Multi-Mode Support
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater and Wireless Client modes.

Wireless N300 (2.4 GHz)
Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps.

Outdoor Rated
Durable enclosure with an IP67 outdoor weather rating.

Directional Antenna
Built in 10 dBi directional antenna.

Power over Ethernet (PoE)
Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch.

Logs
Real time logs and statistics help troubleshooting.

Encrypted Wireless
Support for wireless encryption of up to WPA2.

Multiple SSIDs
Create up to eight additional SSIDs.

Compatibility
Compatible with legacy wireless devices.

Mounting Hardware
Pole and wall mount hardware included.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TEW-740APBO 10dBi Wireless N300 Outdoor PoE Access Point
  • CD-ROM (Utility & User's Guide)
  • Quick Installation Guide
  • Power Adapter (48V DC
  • 0.5A)
  • Proprietary PoE Injector
  • Waterproof RJ-45 Kit
  • Grounding Wire
  • Mounting Hardware
  • TRENDnet 3 Year Limited Warranty
