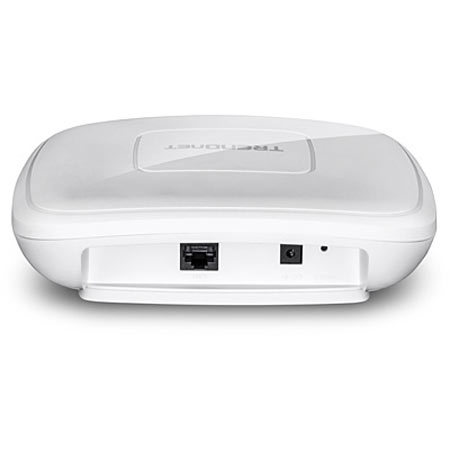

TRENDnet TEW-755AP N300 PoE Access Point with Software Controller, Version v1.0R
See all TRENDnet items

TRENDnet TEW-755AP N300 PoE Access Point with Software Controller, Version v1.0R

SKU: TNTEW755AP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TEW-755AP Specifications

  • Standards

    IEEE 802.1Q
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3at
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (up to 300 Mbps)

  • Hardware Interface

    1x PoE+ Gigabit LAN port
    Power port (optional non-PoE installation)
    Reset button
    LED indicators
    Mounting plate

  • Special Functions

    Software controller
    Concurrent Dual band
    Band Steering
    Wi-Fi traffic shaping
    Beamforming
    802.1Q VLAN assignment per SSID
    IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)
    Multi-Language interface, English, French, Spanish, German, Russian
    LEDs on/off

  • Operation Modes

    Access Point
    Client
    WDS AP
    WDS Bridge
    WDS Station
    Repeater

  • Management/Monitoring

    Web-based management
    Software controller
    SNMP v1/v3
    STP
    Event logging
    Ping test
    Traceroute
    CLI

  • Software Controller

    Central management for multiple devices
    Wireless settings management
    Wireless security settings management
    Firmware upload

  • Software Controller Supported OS

    Windows 8.1, 8, 7, Vista, XP

  • Access Control

    Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
    MAC filter
    Maximum client limit

  • QoS

    WMM
    Traffic shaping per SSID

  • SSID

    Up to 8 SSIDs

  • Frequency

    2.4GHz: 2.412 - 2.472GHz

  • Wireless Channels

    2.4GHz: FCC: 1-11, ETSI: 1 - 13

  • Modulation

    DBPSK/DQPSK/CCK for DSSS technique
    BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique

  • Antenna Gain

    2.4GHz: 2x 4 dBi

  • Wireless O/P Power/Receiving Sensitivity

    802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max.) / -83 dBm (typical) at 11 Mbps
    802.11g: 19 dBm (Max.), CE: 12 dBm (Max.) / -65 dBm (typical) at 54 Mbps
    802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.) / -64 dBm (typical) at 300 Mbps

  • EIRP

    2.4 GHz: FCC: up to 30 dBm, CE: up to 19 dBm

  • Power

    12 V / 1 A consumption: 9.6 Watts Max.

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 95 % non-condensing

  • Certifications

    CE, FCC

  • Dimensions

    187 x 187 x 46mm / 7.36 x 7.36 x 1.81"

  • Weight

    456g / 16.08oz

  • UPC Code

    710931160765

About TRENDnet TEW-755AP

TRENDnet's high performance N300 PoE Access Point, model TEW-755AP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station and Repeater modes. It generates a 300 Mbps Wi-Fi N network and features a Gigabit PoE port. The included Windows-based software controller manages multiple TEW-755APs and reduces Wi-Fi management/troubleshooting time. A low profile housing blends into most environments and a mounting plate eases installation.

• Wi-Fi N300 PoE+ access point
• Access Point, Client, WDS AP, WDS Bridge, WDS Station and Repeater modes
• Included software controller aides Wi-Fi network management
• Gigabit PoE+ LAN port
• Off-white low profile housing blends into the environment
• Mounting plate

Access Point Flexibility
Proven 300 Mbps Wi-Fi N combined with AP, Client, WDS and Repeater modes support multiple applications.

Centralized Management
The included Windows based software controller manages multiple TEW-755APs and reduces Wi-Fi management and troubleshooting time.

Easy Installation
Saves remote location installation time and costs with Gigabit Power over Ethernet (PoE+) support and a convenient mounting plate.

Multi-Language
Multi-Language Interface: English, Spanish, French, German and Russian.

Power over Ethernet (PoE+)
Saves remote location installation time and costs with Gigabit PoE+ support (Optional power port for non-PoE installations)

Wi-Fi N300
Low profile access point delivers proven Wi-Fi N300.

Multi-Mode Support
Supports Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station and Repeater modes.

Software Controller
The included Windows-based Software Controller manages multiple TEW-755APs and reduces Wi-Fi configuration, management and troubleshooting time.

Gigabit Port
Gigabit PoE+ LAN port maintains high performance connections to the wired network.

Wireless Coverage
Extended wireless coverage with MIMO antenna technology.

Encrypted Wireless
Support for wireless encryption of up to WPA2.

Wi-Fi Traffic Shaping
Manage traffic allocation per VLAN.

IPv6
IPv6 network support.

Low Profile
Off white low profile housing blends into most environments.

LED Control
Further reduce product visibility by turning off LED indicators.

Mounting Plate
Mounting plate reduces installation time.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TEW-755AP N300 PoE Access Point with Software Controller
  • 5' Network Cable
  • CD-ROM (Utility and User's Guide)
  • Quick Installation Guide
  • Power Adapter (12V DC
  • 1A)
  • Mounting Bracket
  • TRENDnet 3 Year Limited Warranty
