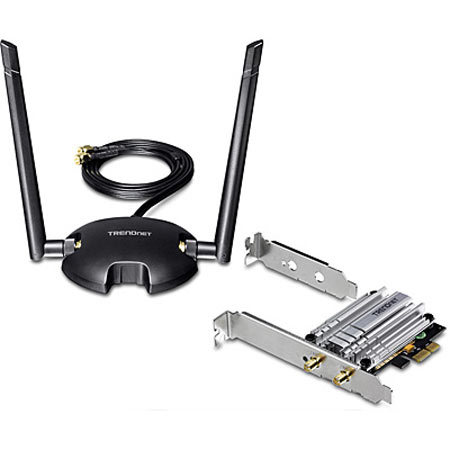

TRENDnet TEW-807ECH AC1200 High Power Wireless Dual Band PCIe Adapter
See all TRENDnet items

TRENDnet TEW-807ECH AC1200 High Power Wireless Dual Band PCIe Adapter, Version v1.0R

SKU: TNTEW807ECH

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TRENDnet TEW-807ECH Specifications

  • Standards

    PCI Express 1.0a
    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (up to 300 Mbps)
    IEEE 802.11ac (up to 867 Mbps)

  • Hardware Interface

    PCI Express x1 (Version 1.0a)
    LED indicator
    2x RP-SMA antenna connectors
    Magnetic Antenna Base with 1 m (3.3 ft) extension cable
    2 High Gain Detachable Dual Band Antennas
    Standard and low profile tower brackets

  • Encryption

    Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS

  • Compatibility

    Windows 8.1, 8, 7, Vista, XP

  • Special Functions

    2 high gain dual band detachable antennas and integrated high powered amplifiers for long range connectivity
    Magnetic Antenna Base for easy mounting and antenna positioning for optimal signal reception
    High-speed 802.11ac connectivity

  • Quality of Service

    WMM, WMM-SA

  • Frequency

    2.4GHz: (FCC) 2.412 - 2.462GHz, (ETSI) 2.412 - 2.472GHz
    5GHz: (FCC) 5.150 - 5.250GHz/5.745 - 5.825GHz, (ETSI) 5.150 - 5.250GHz/5.260 - 5.320GHz/5.500 - 5.700GHz

  • Modulation

    802.11b: CCK, DQPSK, DBPSK
    802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
    802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
    802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

  • Antenna Gain

    2.4 GHz/5 GHz: 2x 5 dBi (max.) dual band external/detachable

  • Wireless Output Power

    FCC: 802.11a: 28 dBm (max.) / ETSI: 22.30 dBm (max.) at 54 Mbps
    FCC: 802.11b: 27 dBm (max.) / ETSI: 19.80 dBm (max.) at 11 Mbps
    FCC: 802.11g: 27 dBm (max.) / ETSI: 19.70 dBm (max.) at 54 Mbps
    FCC: 802.11n (2.4GHz): 27 dBm (max.) / ETSI: 19.70 dBm (max.) at 300 Mbps
    FCC: 802.11n (5GHz): 27 dBm (max.) / ETSI: 22.50 dBm (max.) at 300 Mbps
    FCC: 802.11ac: 27 dBm (max.) / ETSI: 22.30 dBm (max.) at 867 Mbps

  • Receiving Sensitivity

    802.11a: -90 dBm (typical) at 54 Mbps
    802.11b: -91 dBm (typical) at 11 Mbps
    802.11g: -87 dBm (typical) at 54 Mbps
    802.11n (2.4GHz): -85 dBm (typical) at 300 Mbps
    802.11n (5GHz): -90 dBm (typical) at 300 Mbps
    802.11ac: -58 dBm (typical) at 867 Mbps

  • Wireless Channels

    2.4GHz: (FCC) 1-11, (ETSI) 1-13
    5GHz: (FCC) 36, 40, 44, 48, 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

  • Power

    Consumption: Max. 6 W

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE, FCC

  • Dimensions

    84 x 64 x 17mm / 3.31 x 2.52 x 0.67"

  • Weight

    80g / 2.82oz
    Antenna Base: 114g / 4.02oz

  • UPC Code

    710931130614

About TRENDnet TEW-807ECH

TRENDnet's AC1200 High Power Wireless Dual Band PCIe Adapter, model TEW-807ECH, upgrades a standard or low profile Windows computer to Wireless AC1200. Quickly connect to a high performance Wireless AC network at 867 Mbps or to a Wireless N network at 300 Mbps. A high power radio with detachable 5 dBi antennas increase wireless coverage. A convenient 1 m (3.3 ft.) extension cable and a magnetic mounting base provide installation flexibility.

• Easy setup
• AC1200: 867 Mbps Wireless AC or 300 Mbps Wireless N bands
• Convenient 1 m (3.3 ft.) extension cable and magnetic mounting base
• High power radio
• Heat sink for optimal heat dissipation and performance
• Includes standard and low profile brackets
• Compatible with a PCI Express (PCIe) slot
• Supports Windows operating systems

Wi-Fi Performance
Upgrade your desktop computer to 867 Mbps Wi-Fi AC or 300 Mbps Wi-Fi N to surf, game and stream 4K HD video.

Versatility
Interchangeable mounting brackets provide compatibility with both standard and low profile computers.

Increased Coverage
A high power radio with detachable 5 dBi antennas on a magnetic mounting base increase Wi-Fi coverage.

Easy Setup
Get up and running in minutes with the intuitive guided setup.

AC1200 Dual Band
Connect to an extreme performance 867 Mbps Wireless AC or 300 Mbps Wireless N network.

Wireless Coverage
Extended wireless coverage with high power radio and detachable 5 dBi antennas.

PCIe Slot
PCI Express slot (1x) .

Heat Sink
Heat sink minimizes heat loading and optimizes processing performance.

PC Brackets
Includes standard and low profile brackets.

Extension Cable
Convenient 1 m (3.3 ft.) extension cable provides installation flexibility.

Magnetic Base
Adjustable magnetic mounting base attaches to the side of a tower computer or other metal surface.

LED Indicator
LED indicator conveys device status.

Operating Systems
Compatible with Windows operating systems.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

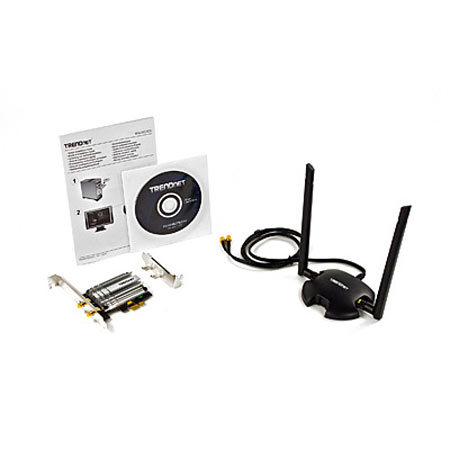

What's in the box:

  • TRENDnet TEW-807ECH AC1200 High Power Wireless Dual Band PCIe Adapter
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & Drivers)
  • 2x High Gain Detachable Dual Band Antennas
  • Magnetic Antenna Base with 3.3' Extension Cable
  • Standard & Low Profile Brackets
  • TRENDnet 3 Year Limited Warranty
