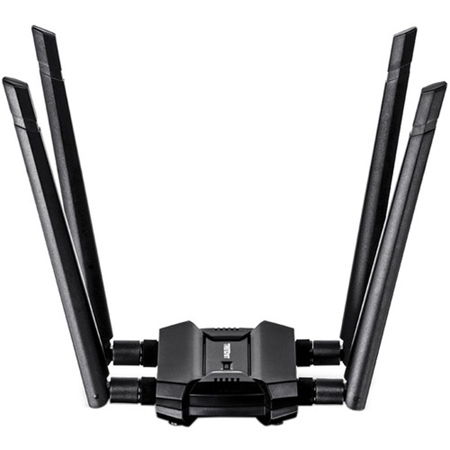

TRENDnet TEW-809UB AC1900 High Power Dual Band Wireless USB Adapter
See all TRENDnet items

TRENDnet TEW-809UB AC1900 High Power Dual Band Wireless USB Adapter, Version v1.0R

SKU: TNTEW809UB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TEW-809UB Specifications

  • Standards

    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (up to 600 Mbps)
    IEEE 802.11ac (up to 1300 Mbps)

  • Hardware Interface

    USB 3.0 Micro-B port
    LED indicator
    WPS Button
    4x RP-SMA female antenna connectors
    4x High gain detachable dual band antennas

  • Encryption

    Wireless encryption: WEP, WPA / WPA2-PSK

  • Compatibility

    Windows 10, 8.1, 8, 7, Vista, XP
    Mac OS 10.6-10.11

  • Special Functions

    4 high gain dual band detachable antennas and integrated high powered amplifiers for long range connectivity
    High-speed 802.11ac connectivity
    Explicit Beamforming

  • Quality of Service

    WMM

  • Frequency

    2.4GHz: (FCC) 2.412 - 2.462GHz, (ETSI) 2.412 - 2.472GHz
    5GHz: (FCC) 5.150 - 5.250GHz / 5.745 - 5.825GHz, (ETSI) 5.150 - 5.250GHz / 5.500 - 5.700GHz

  • Modulation

    802.11b: CCK, DQPSK, DBPSK
    802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
    802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
    802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

  • Antenna Gain

    2.4 GHz / 5 GHz: 4 x 5 dBi (max.) dual band external/detachable

  • Wireless Output Power

    FCC: 802.11a: 21 dBm (max.) / ETSI: 18.5 dBm (max.) at 54 Mbps
    FCC: 802.11b: 23 dBm (max.) / ETSI: 17.5 dBm (max.) at 11 Mbps
    FCC: 802.11g: 20 dBm (max.) / ETSI: 17 dBm (max.) at 54 Mbps
    FCC: 802.11n (2.4GHz): 23 dBm (max.) / ETSI: 17.5 dBm (max.) at 600 Mbps
    FCC: 802.11n (5GHz): 19.5 dBm (max.) / ETSI: 18 dBm (max.) at 600 Mbps
    FCC: 802.11ac: 20.5 dBm (max.) / ETSI: 17.5 dBm (max.) at 1300 Mbps

  • Receiving Sensitivity

    802.11a: -72 dBm (typical) at 54 Mbps
    802.11b: -84 dBm (typical) at 11 Mbps
    802.11g: -70 dBm (typical) at 54 Mbps
    802.11n (2.4GHz): -90 dBm (typical) at 600 Mbps
    802.11n (5GHz): -88 dBm (typical) at 600 Mbps
    802.11ac: -84 dBm (typical) at 1300 Mbps

  • Wireless Channels

    2.4GHz: (FCC) 1-11, (ETSI) 1-13
    5GHz: (FCC) 36, 40, 44, 48, 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48

  • Power

    Consumption: Max. 6.6 W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 80% non-condensing

  • Certifications

    CE, FCC

  • Dimensions

    85 x 75 x 20mm / 3.35 x 2.95 x 0.79"

  • Weight

    48g / 1.69oz

  • UPC Code

    710931160741

About TRENDnet TEW-809UB

TRENDnet's AC1900 High Power Dual Band Wireless USB Adapter, model TEW-809UB, upgrades a computer to Wireless AC1900. Quickly connect to a high performance Wireless AC network at 1300 Mbps or to a Wireless N network at 600 Mbps. A high power radio with detachable high gain antennas increase wireless coverage.

• Easy setup
• AC1900: 1300 Mbps Wireless AC or 600 Mbps Wireless N bands
• High power radio and high gain detachable antennas for increased coverage
• Supports Windows and Mac operating systems

Wi-Fi Performance
Upgrade your computer to 1300 Mbps Wi-Fi AC or 600 Mbps Wi-Fi N to surf, game and stream 4K HD video.

Beamforming
Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

Increased Coverage
A high power radio with detachable antennas increase Wi-Fi coverage.

Easy Setup
Get up and running in minutes with the intuitive guided setup.

AC1900 Dual Band
Connect to an extreme performance 1300 Mbps Wireless AC or 600 Mbps Wireless N network.

Wireless Coverage
Extended wireless coverage with high power radio and detachable high gain antennas.

LED Indicator
LED indicator conveys device status.

Operating Systems
Compatible with Windows and Mac operating systems.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TEW-809UB AC1900 High Power Dual Band Wireless USB Adapter
  • Quick Installation Guide
  • CD-ROM (Drivers & User's Guide)
  • 4x High Gain Detachable Dual Band Antennas
  • 3' USB 3.0 Micro-B to USB Type-A Cable
  • TRENDnet 3 Year Limited Warranty
