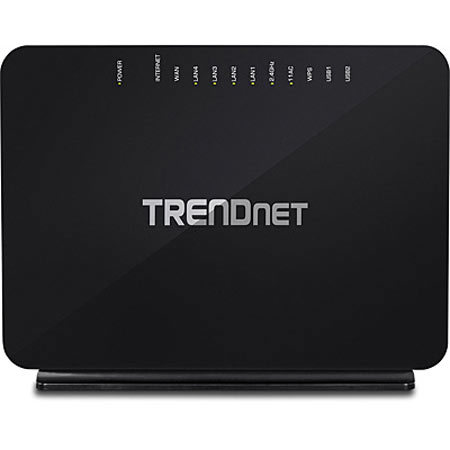

TRENDnet TEW-816DRM AC750 Wireless VDSL2/ADSL2+ Modem Router, Version v1.0R
See all TRENDnet items

TRENDnet TEW-816DRM AC750 Wireless VDSL2/ADSL2+ Modem Router, Version v1.0R

SKU: TNTEW816DRM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

TRENDnet TEW-816DRM Specifications

  • VDSL/ADSL Line Interface

    ADSL: ANSI T1.413 Issue2, G.992.1 (G.dmt, Annex A and Annex B), G.992.2 (G.lite)
    ADSL2: G.992.3 (G.bis/ADSL2)
    ADSL2+: G.992.5 (Annex A, B, I, J, M and L)
    ITU G.994.1 (G.hs)
    ITU-T: G.993.2 VDSL2: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, profile G.vector
    ATM and PTM
    G.INP

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3ab
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (up to 300 Mbps)
    IEEE 802.11ac (up to 433 Mbps)

  • Hardware Interface

    4x 10/100 Mbps LAN ports
    1x Gigabit Mbps WAN port
    1x RJ-11 WAN port
    2x USB 2.0 port
    WPS/Wireless 2.4 GHz on/off button
    WPS/Wireless 5 GHz on/off button
    Power on/off button
    Reset button
    LED indicators

  • Special Functions

    TR-069 remote management support
    Pre-encrypted wireless network
    Port mapping
    3G WAN backup
    IPv6
    Wireless WDS support
    SAMBA server
    Dyn DNS support for: DynDNS.org and NO-IP.com
    Diagnostics: DSL test, Traceroute test and Ping test

  • Access Control

    Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
    Firewall: NAT, ALG, Port Trigger, SPI, Virtual Server, Special Applications, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough, Multicast Passthrough, IGMP, MLD, allow/deny ping request from internet
    SNMP v1 and v2c
    Guest Networks: Create up to 3 guest networks per band
    Parental (Access) Controls: MAC, URL, IP Filter
    DoS protection
    Packet filter

  • Quality of Service

    DCSP, 802.1p

  • Internet Connection Types

    Dynamic IP (DHCP)
    Static IP (Fixed)
    ATM/PTM
    PPPoE (Dynamic IP/Static IP)
    PPPoA (Dynamic IP/Static IP)
    IPoA
    MAC Encapsulation Routing (IPoEoA/MER)
    Bridge (RFC-1483)

  • Management/Monitoring

    Local/remote web based management
    Remote management (FTP, HTTP, ICMP, SNMP, SSH, Telnet, TFTP)
    TR-069 remote management
    Upgrade firmware
    Backup/restore configuration
    Logging - internal/remote
    Reboot
    Restore to factory defaults
    Ping test
    Traceroute

  • Routing

    Static, Dynamic (RIP v1/2)

  • Frequency

    5 GHz: FCC 5.180 - 5.240 + 5.745 - 5.825; ETSI: 5.180 - 5.240 GHz, 2.4 GHz: FCC 2.412 - 2.472; ETSI: 2.412 - 2.462 GHz

  • Modulation

    802.11b: CCK, DQPSK, DBPSK
    802.11a/g/n: BPSK, QPSK, 16 QAM, 64 QAM sub carrier with OFDM
    802.11ac: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM with OFDM

  • Antenna Gain

    5 GHz: 3 dBi (max.) internal
    2.4 GHz: 2 dBi (max.) internal

  • Wireless O/P Power/Receiving Sensitivity

    802.11a: FCC: 20 dBm, CE: 22 dBm (max.)/-73 dBm (typical) at 54 Mbps
    802.11b: FCC: 24 dBm, CE: 13 dBm (max.)/-84 dBm (typical) at 11 Mbps
    802.11g: FCC: 22 dBm, CE: 14 dBm (max.)/-70 dBm (typical) at 54 Mbps
    802.11n (2.4 GHz): FCC: 22 dBm, CE: 14 dBm (max.)/-66 dBm (typical) at 300 Mbps
    802.11n (5 GHz): FCC: 20 dBm, CE: 22 dBm (max.)/-66 dBm (typical) at 300 Mbps
    802.11ac: FCC: 18 dBm, CE: 21 dBm (max.)/-56 dBm (typical) at 433 Mbps

  • Wireless Channel

    5 GHz: FCC: 36, 40, 44, 48, 149, 159, 157, 161 and 165; CE: 36, 40, 44, 48
    2.4 GHz: FCC: 1 - 11; CE: 1 - 13

  • Power

    Input: 100 - 240 V AC, 50 - 60 Hz, 0.5 A
    Output: 12 V DC, 1.5 A external power adapter
    Consumption: 14 Watts (max.)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 95 % non-condensing

  • Certifications

    CE, FCC

  • Dimensions

    190 x 146 x 55mm / 7.48 x 5.75 x 2.17"

  • Weight

    323g / 11.39oz

  • UPC Code

    710931160628

About TRENDnet TEW-816DRM

TRENDnet's AC750 Wireless VDSL2/ADSL2+ Modem Router, model TEW-816DRM, offers a combination high performance modem for internet access and a powerful wireless AC750 router. The built-in modem supports the latest ADSL2+ and VDSL2 standards for downstream speeds of up to 200 Mbps. Wireless AC750 produces concurrent high speed 433 Mbps Wireless AC and 300 Mbps Wireless N networks. Use the two USB and four Ethernet ports to share content and devices across the network.

• Combination high performance modem and wireless router
• Compatible with VDSL2/ADSL2+ ISP networks
• VDSL2: downstream throughput of up to 200 Mbps
• Wireless AC750: 433 Mbps AC + 300 Mbps N bands
• Pre-encrypted wireless for your convenience
• Two USB and four Ethernet ports

High Speed Internet
The built-in extreme performance modem supports internet speeds to your home, from your ISP, of up to 200 Mbps!

Wi-Fi for All
Connect all of your Wi-Fi AC and N devices to the concurrent 433 Mbps Wi-Fi AC and 300 Mbps Wi-Fi N networks.

USB Share Ports
Plug in USB flash or storage drives to the two USB ports to share content across your network.

Easy Setup
Get up and running quickly with the intuitive guided setup.

VDSL Internet Service
Compatible with VDSL2 internet service provider networks (Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a support) for downstream throughput of up to 200 Mbps.

ADSL Internet Service
Compatible with ADSL 2/2+ internet service provider networks (ADSL 2/2+ and Annex A, B, I, J, L and M support) .

Wireless AC750
Concurrent high speed 433 Mbps Wireless AC + 300 Mbps Wireless N bands.

Pre-Encrypted Wireless
For your convenience the wireless network arrives pre-encrypted with its own unique password.

One Touch Connection
Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button.

Ethernet Ports
Four Ethernet ports to connect wired devices.

USB Share Ports
Plug in flash or storage drives to the two high speed USB ports to share content across the network.

Parental Controls
Control access to specific websites and manage which devices can access the router.

Remote Management
Remote management and troubleshooting support with TR-069.

3G WAN Backup
3G WAN backup support.

IPv6
IPv6 network support.

On/Off Power Button
Convenient on/off power button.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TEW-816DRM AC750 Wireless VDSL2/ADSL2+ Modem Router
  • Quick Installation Guide
  • CD-ROM (User's Guide)
  • 5' Network Cable
  • 3' RJ11 Telephone Cable
  • Power Adapter (12V DC
  • 1.5A)
  • TRENDnet 3 Year Limited Warranty
