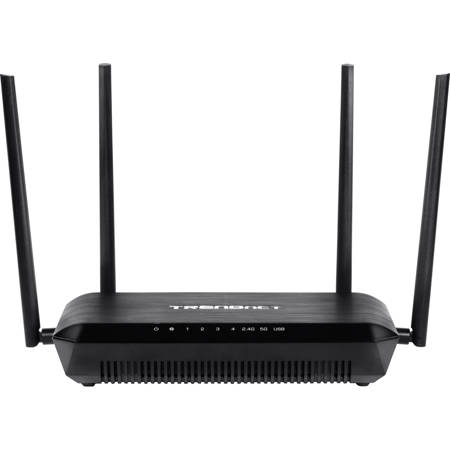

TRENDnet TEW-827DRU AC2600 StreamBoost MU-MIMO Wi-Fi Router, Version v1.0R

SKU: TNTEW827DRU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

TRENDnet TEW-827DRU Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3az
    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (up to 800 Mbps)
    IEEE 802.11ac (up to 1733 Mbps)

  • Hardware Interface

    4x Gigabit LAN ports
    1x Gigabit WAN port
    2x USB 3.0 (Storage FTP, Samba, iTunes Media Server, BitTorrent Client)
    Power switch
    WPS button
    Reset button
    Wi-Fi on/off
    LED on/off
    LED indicators

  • Special Functions

    StreamBoost automatically identifies and classifies network traffic to maximize bandwidth and speed
    Multi-User MIMO for increased bandwidth efficiency and better user experience
    Multi-Language interface: English, French, Spanish, German, Russian
    Pre-encrypted wireless network
    IPv6 support
    1 guest network per band with option for internet access only
    Up to 2 additional SSIDs per band
    Dynamic DNS support for dyn.com, no-ip.com and easydns.com

  • Special Functions (Cont.)

    Samba/FTP server support
    Implicit and Explicit Beamforming

  • Access Control

    Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
    Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet
    ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
    Parental (Access) Controls: MAC, URL, IP Filter

  • Quality of Service

    WMM
    StreamBoost Traffic Shaping

  • Internet Connection Types

    Dynamic IP (DHCP)
    Static IP (Fixed)
    PPPoE (Dynamic IP/Static IP)
    PPTP (Dynamic IP/Static IP)
    L2TP(Dynamic IP/Static IP)
    Russia PPPoE (Dynamic IP/Static IP)
    Russia PPTP (Dynamic IP/Static IP)
    Russia L2TP (Dynamic IP/Static IP)
    IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)

  • Management/Monitoring

    Local/remote web based management
    Upgrade firmware
    Backup/restore configuration
    Internal logging
    Reboot
    Restore to factory defaults
    Ping test

  • Routing

    Static
    Dynamic (RIP v1/2)

  • Frequency

    2.412 - 2.472 GHz
    5.180 - 5.825 GHz

  • Modulation

    802.11b: CCK, DQPSK, DBPSK
    802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
    802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
    802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

  • Media Access Protocol

    CSMA/CA with ACK

  • Antenna Gain

    2.4 GHz: 4 x 3 dBi (max.) detachable/external; 5 GHz: 4 x 5 dBi

  • Wireless Output Power

    802.11a: FCC: 26 dBm (max.) / ETSI: 29 dBm (max.) / IC: 26 dBm (max.) at 54 Mbps
    802.11b: FCC: 27 dBm (max.) / ETSI: 14 dBm (max.) / IC: 27 dBm (max.) at 11 Mbps
    802.11g: FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) at 54 Mbps
    802.11n (2.4 GHz): FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) at 800 Mbps
    802.11n (5 GHz): FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) at 800 Mbps

  • Wireless Output Power (Cont.)

    802.11ac: FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) at 1733 Mbps (max output power without antenna gain)

  • Receiving Sensitivity

    802.11a: -68 dBm (typical) at 54 Mbps
    802.11b: -83 dBm (typical) at 11 Mbps
    802.11g: -70 dBm (typical) at 54 Mbps
    802.11n (2.4 GHz): -64 dBm (typical) at 800 Mbps
    802.11n (5 GHz): -68 dBm (typical) at 800 Mbps
    802.11ac: -55 dBm (typical) at 1733 Mbps

  • Wireless Channels

    2.4 GHz: FCC: 1-11; ETSI: 1-13
    5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)

  • Power

    Input: 100 - 240V AC, 50 - 60Hz, 1A
    Output: 12V DC, 3A external power adapter
    Consumption: 31Watts max

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 95% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    250 x 180 x 45mm / 9.84 x 7.09 x 1.77"

  • Weight

    752g / 26.53oz

  • UPC Code

    710931160727

About TRENDnet TEW-827DRU

TRENDnet's AC2600 StreamBoost MU-MIMO Wi-Fi Router, model TEW-827DRU, is built to perform in a busy connected home. It generates two extreme quad-stream Wi-Fi networks - a 1,733 Mbps Wi-Fi AC and a concurrent 800 Mbps Wi-Fi N network. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time Wi-Fi performance when multiple devices access the network. Qualcomm StreamBoost technology prioritizes low latency gaming and voice streams, shapes network traffic to optimize each connected experience and graphically displays all connected device/app traffic. Use the Gigabit Ethernet ports and USB 3.0 share ports to further extend an extreme performance home network.

• Quad-stream AC2600: 1733 Mbps Wi-Fi AC + 800 Mbps Wi-Fi N bands
• MU-MIMO boosts performance in a busy home
• StreamBoost Low latency gaming/voice prioritization
• High performance 1.4 GHz dual-core processor
• Pre-encrypted Wi-Fi for your convenience
• All Gigabit wired ports
• USB 3.0 share ports
• Detachable high gain antennas

Extreme Wi-Fi
Concurrent quad-stream Wi-Fi networks and all Gigabit ports seamlessly network connected devices and high bandwidth streams such as 4K video.

Built For Busy Homes
MU-MIMO technology processes multiple data streams simultaneously, increasing real-time Wi-Fi performance when multiple devices access the network.

Optimized Gaming
StreamBoost minimizes latency for gaming, video and voice streams to eliminate stutter and lag caused by high bandwidth traffic such as torrents.

Easy Setup
Get up and running in minutes with the intuitive guided setup.

AC2600 Wi-Fi
Concurrent dual band quad-stream 1,733 Mbps Wi-Fi AC + 800 Mbps Wi-Fi N bands.

MU-MIMO Performance
MU-MIMO technology enables the router to processes multiple data streams simultaneously-with so many connected devices in today's home, MU-MIMO increases real-time Wi-Fi performance.

Qualcomm StreamBoost Latency Prioritization
StreamBoost prioritizes latency for gaming and voice streams to eliminate stutter or lag caused by other high bandwidth network traffic such as torrent downloads.

Qualcomm StreamBoost Traffic Shaping
StreamBoost intelligently allocates the optimal amount of bandwidth for each individual device/application and users can manually assign device priority.

Qualcomm StreamBoost Device/Traffic Mapping
See all connected network devices/applications and their respective real-time network usage and review historical usage data.

Pre-Encrypted Wireless
For your convenience the Wi-Fi is pre-encrypted with its own unique password.

Wireless Coverage
High performance amplifiers and detachable external high gain antennas maximize wireless coverage.

Gigabit Ports
Gigabit ports support high performance wired connections.

USB 3.0 Share Ports
Share content across the network with the 5 Gbps USB 3.0 share ports.

Guest Network
Create an isolated network for guest internet access only.

Parental Controls
Control access to specific websites and control connected device access to the network.

One Touch Connection
Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button.

Targeted Beamforming
Beamforming increases real-time performance by directing stronger wireless signals to your specific location.

Backward Compatible
Compatible with legacy wireless devices.

File Sharing Support
Management controls to optimize BitTorrent sharing, iTunes server streams and Samba (SMB) clients.

What's in the box:

  • TRENDnet TEW-827DRU AC2600 StreamBoost MU-MIMO Wi-Fi Router
  • 4x Detachable High Gain Antennas
  • 5' Network Cable
  • Power Adapter (12V DC
  • 3A)
  • CD-ROM (User's Guide)
  • Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty
