TRENDnet TI-F11SFP Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3ab
    IEEE 802.3z
    IEEE 802.3x

  • Device Interface

    1x Gigabit port
    1x Gigabit SFP slot
    4-pin removable terminal block
    LED indicators
    DIP Switch
    DIN-Rail mount
    Wall mount
    Grounding point

  • Data Transfer Rate

    Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    Gigabit: 2000Mbps (full duplex)

  • Performance

    Data RAM Buffer: 1024KB
    Jumbo Frame: 9KB

  • Special Functions

    Hardened components rated for extreme temperatures
    Dual redundant power inputs
    Auto-Negotiation
    Auto store and forward architecture
    Automatic address learning and address aging
    ESD 8 KV and Surge 6 KV protection

  • Power

    Input: 12-56VDC or 18-36VAC
    Consumption: Maximum 3W

  • Terminal Block

    Redundant power inputs, 4 pin
    Wire range: 0.34 mm2 to 2.5 mm2
    Solid wire (AWG): 12-24/14-22
    Stranded wire (AWG): 12-24/14-22
    Torque: 5 lbs. - In / 0.5 Nm / 0.56 Nm
    Wire strip length: 7 - 8mm / 0.28 - 0.31"

  • DIP Switch

    Set SFP speed to 100Mbps or 1000Mbps
    Enable or disable auto-negotiation on SFP port
    Set to switch or pass through mode
    Turns LFP (Link Fault Pass Through) on or off

  • MTBF

    510,304 hours

  • Housing

    IP30 metal case
    DIN-rail mount
    Wall mount
    Grounding point
    8 KV ESD protection
    6 KV surge protection

  • Operating Temperature

    -40 to 75 deg. C / -40 to 167 deg. F

  • Operating Humidity

    Maximum 95% non-condensing

  • Certifications

    CE
    FCC
    Shock (IEC 60068-2-27)
    Freefall (IEC 60068-2-32)
    Vibration (IEC 60068-2-6)

  • Dimensions

    113 x 82 x 31mm / 4.45 x 3.23 x 1.22"

  • Weight

    152g / 5.36oz

  • UPC Code

    710931160369

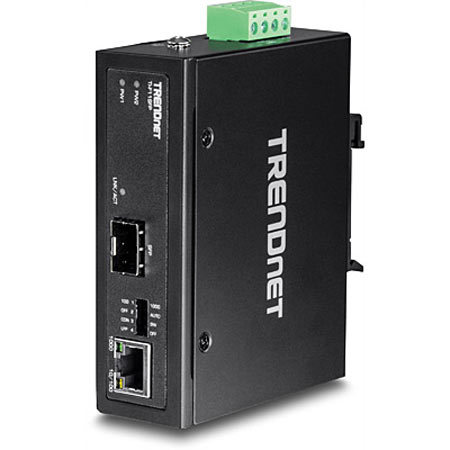

About TRENDnet TI-F11SFP

TRENDnet's TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000Mbps throughput speeds, Auto Negotiation and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs with overload current protection support zero downtime applications.

• Hardened IP30 rated 100/1000 Base-T Ethernet to SFP converter
• SFP port accommodates Multi or Single Mode fiber
• Up to 80 km fiber networking distances with the TEG-MGBS80 SFP module
• Includes DIN-rail and wall mounts
• Extreme -40 to 75 deg.C (-40 to 167 deg.F) operating temperature range
• Dual redundant power inputs with overload current protection

Network Ports
1x Gigabit Ethernet port and 1x SFP slot.

Dip Switches
• Dip Switch 1: 100 or 1,000Mbps throughput speeds
• Dip Switch 2: Enable/disable port Auto-Negotiation
• Dip Switch 3: Converter or Switch mode
• Dip Switch 4: Enable/disable Link Fault PassThrough (LFP) support

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware.

Switching Capacity
2Gbps switching capacity.

Redundant Power
Dual redundant power inputs with overload current protection.

Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB), for increased performance.

Extreme Temperatures
Hardened converter is rated for an operating temperature range of -40 to 75 deg.C (-40 to 167 deg.F).

Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards.

Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific and medical (ISM) Equipment (EN55011).

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).

Grounding Point
Grounding point protects equipment from external electrical surges.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

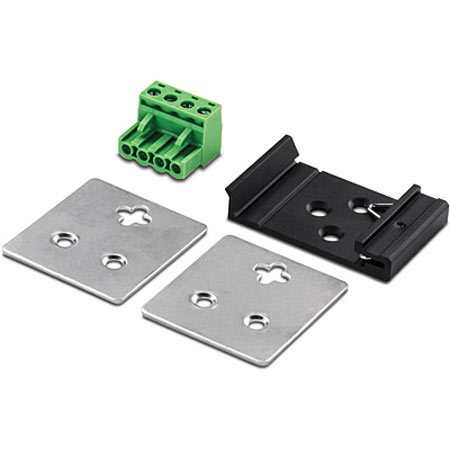

What's in the box:

  • TRENDnet TI-F11SFP 100/1000 Base-T to SFP Media Converter
  • DIN-Rail / Wall Mount Kit
  • Quick Installation Guide
  • Removable Terminal Block
  • TRENDnet 3 Year Limited Warranty
