TRENDnet TI-IG30 30W Hardened Industrial Gigabit PoE+ Injector, Version v1.0R

TRENDnet's TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328') to network a PoE, PoE+ or high power PoE+ device. Dual redundant power inputs with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.

• Hardened IP30 rated Gigabit PoE+ Injector
• High power PoE+
• Network a PoE device located up to 100 meters (328') away
• Extreme -40 to 75 deg.C (-40 to 167 deg.F) operating temperature range
• Dual redundant power inputs with overload current protection
• Includes DIN-rail and wall mounts

Plug and Play
Plug and play PoE network devices.

PoE/PoE+
Supplies power to a PoE (up to 15W) and PoE + (up to 30W) device.

Gigabit Ports
1x Gigabit Ethernet port and 1x PoE+ Gigabit Ethernet port.

Extension Distance
Extends a PoE network connection up to 100 meters (328').

DIN-Rail/Wall Mounts

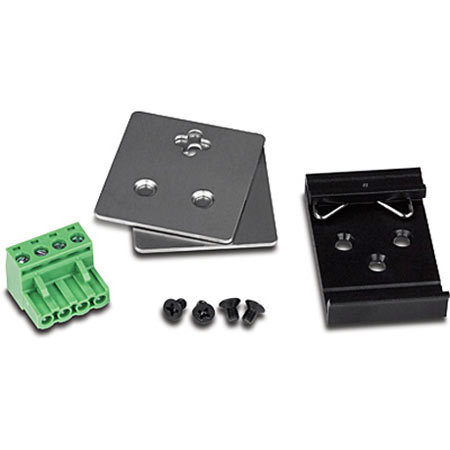

IP30 rated metal enclosure with included DIN-rail and wall mount hardware.

Redundant Power
Dual redundant power inputs with overload current protection.

Extreme Temperatures
Hardened converter is rated for an operating temperature range of -40 to 75 deg.C (-40 to 167 deg.F).

Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards.

Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific and medical (ISM) Equipment (EN55011).

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).

Grounding Point
Grounding point protects equipment from external electrical surges.

LED indicators
LED indicators confirm PoE and network connectivity.
