TRENDnet TI-PG1284i 12-Port Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch
See all TRENDnet items

TRENDnet TI-PG1284i 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, Version v1.0R

SKU: TNTIPG1284I

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

TRENDnet TI-PG1284i Specifications

  • Management (Cont.)

    Auto Provision via FTP / TFTP / HTTP Server
    Xpress Ring
    ERPS (Ethernet Ring Protection Switching) G8032v2
    SFP DDMI (Digital Diagnostic Monitoring Interface)

  • Standards

    IEEE 802.1d
    IEEE 802.1p
    IEEE 802.1Q
    IEEE 802.1s
    IEEE 802.1w
    IEEE 802.1X
    IEEE 802.1ab
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3z
    IEEE 802.3ab
    IEEE 802.3ad
    IEEE 802.3af
    IEEE 802.3at

  • MIB

    MIB II RFC 1213
    Bridge MIB RFC 1493
    Ethernet Interface MIB RFC 1643
    RMON MIB RFC 1757

  • Device Interface

    8x Gigabit PoE+ ports
    4x Gigabit SFP slots
    1x Console port (RJ-45)

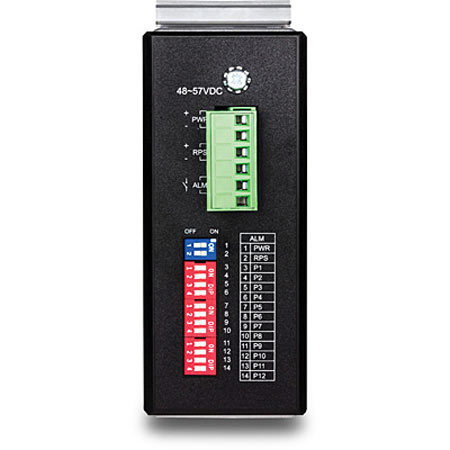

    6-pin removable terminal block (Primary / RPS power inputs & alarm relay output)
    DIP switch (Alarm for primary / RPS power and ports / slots failure)
    LED indicators

  • Spanning Tree

    STP (Spanning Tree protocol)
    RSTP (Rapid Spanning Tree protocol)
    MSTP (Multiple Spanning Tree protocol)

  • Data Transfer Rate

    Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
    Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)
    Gigabit Ethernet: 2000Mbps (full-duplex)
    SX / LX: 2000Mbps (full-duplex)

  • Link Aggregation

    Static link aggregation
    802.3ad dynamic LACP
    Up to 6 link aggregation groups

  • Performance

    Switch fabric: 24Gbps
    RAM buffer: 128MB
    MAC address table: 16K entries
    Jumbo frames: 10KB
    Forwarding rate: 17.86Mpps (64-byte packet size)

  • Quality of Service (QoS)

    802.1p Class of Service (CoS)
    DSCP (Differentiated Services Code Point)
    Bandwidth control per port
    Queue Scheduling: Strict Priority (SP), Weighted Round Robin (WRR)

  • Management

    CLI (Console, Telnet, SSH)
    HTTP / HTTPS (SSL) web based GUI
    SNMP v1, v2c, 3
    SNMP trap
    RMON groups 1, 2, 3, 9
    LLDP
    SNTP
    SMTP alert
    Syslog
    Port statistics / utilization
    Traffic monitor
    Port mirror (Ingress, Egress, Both)
    Storm control (Multicast, DLF, Broadcast)
    Modbus / TCP
    IPv6 static IP address, DHCPv6 client
    Dual Image

  • VLAN

    802.1Q tagged VLAN
    MAC-based VLAN
    Dynamic GVRP
    Protocol-based (Ethernet II, Non-LLC-SNAP, LLC-SNAP)
    Q-in-Q VLAN stacking / double VLAN (port-based, selective)
    Port isolation
    Up to 256 VLAN groups, ID range 1-4094

  • Multicast

    IGMP snooping v1, v2, v3
    MVR
    MLD v1, v2
    IGMP filtering / querier / proxy
    Static multicast address
    Up to 256 multicast entries

  • Access Control

    802.1X port-based network access control RADIUS
    Local dial-in user authentication
    DHCP snooping / screening
    Loopback detection
    ARP inspection
    IP Source Guard
    IP-MAC-Port binding
    Trusted host
    MAC address learning

  • ACL IPv4

    MAC Address
    VLAN ID
    Ethernet Type
    IP Protocol 0-255
    TCP / UDP Port 1-65535
    DSCP

  • Layer 3 Functions

    IPv4 / IPv6 static routing
    IPv4 / IPv6 proxy ARP
    IP interfaces: Up to 16
    Routing table entries: Up to 500 (IPv4: 400 / IPv6: 100)
    DHCP Server / Relay / Option 82

  • Special Functions

    CLI & web based management
    Full power PoE+
    Wide operating temperature range
    Dual redundant power inputs
    Alarm relay triggered by power and ports / slots failure
    Surge / ESD protection
    L2+ management features

  • Power

    PWR (Primary) terminal input: 48-57VDC
    RPS (Redundant) terminal input: 48-57VDC
    Consumption: 18W (maximum), 260W (maximum) with PoE+ fully loaded

  • PoE

    PoE budget: 240W
    Up to 15W per port for PoE
    Up to 30W per port for PoE+
    Mode A: Pins 1, 2 (V+) and pins 3, 6 (V-)
    PoE enable / disable per port setting, priority, scheduling, power delay and PD alive check

  • Enclosure

    IP30 rated metal enclosure
    DIN-Rail mount
    Grounding point
    ESD (Ethernet) Protection: 8KV DC
    Surge (Power) Protection: 6KV DC

  • MTBF

    99,992 hours at 75 deg. C
    322,805 hours at 25 deg. C

  • Operating Temperature

    -40 to 75 deg. C / -40 to 167 deg. F

  • Operating Humidity

    Maximum 95% non-condensing

  • Certifications

    CE
    FCC
    Shock (IEC 60068-2-27)
    Freefall (IEC 60068-2-32)
    Vibration (IEC 60068-2-6)

  • Dimensions

    170 x 132 x 50mm / 6.69 x 5.20 x 1.97"

  • Weight

    920g / 32.45oz

  • UPC Code

    710931160598

About TRENDnet TI-PG1284i

TRENDnet's 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots and a 240W PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge and operate within a wide temperature range (- 40 - 75 deg.C (- 40 - 167 deg.F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4 / IPv6 static routing, ACLs and 802.1X which allow for network integration flexibility.

• Hardened IP30 rated metal enclosure with integrated DIN-Rail mount
• Wide operating temperature range - 40 to 75 deg.C (-40 to 167 deg.F)
• 8x Gigabit PoE+ (802.3at) ports, 4x Gigabit SFP slots and 1x console port
• 240W total power budget
• Dual redundant power inputs and alarm relay output
• CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / 2c / 3 management
• 802.1Q / Q-in-Q VLAN and IGMP Snooping / MLD / MVR support
• 802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support

Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge and operate with a wide temperature range (- 40 - 75 deg.C (- 40 - 167 deg.F)) for harsh environments.

Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.

Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Full PoE+ Power Budget
Supplies up to 30W of PoE / PoE+ power per port with a 240W PoE power budget.

Network Ports and Capacity
8x Gigabit PoE+ ports and 4x Gigabit SFP slots allow for a 24Gbps switching capacity and 1x console (RJ-45 to RS-232) for out-of-band management.

Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-Rail mounting hardware.

Full PoE Control Per Port
PoE control features include enabling/disabling PoE and class, power priority, PD alive check, scheduling and power delay per port using CLI or web management.

Traffic Management
Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation and Xpress Ring + ERPS protection for flexible network integration.

Layer 2+ Management
Offers IPv4 / IPv6 static or DHCPv4 / v6 assignment, IPv4 / IPv6 static routing and proxy ARP, DHCP server / relay / option 82 and DHCP server snooping / screening to filter out unauthorized DHCP servers.

Access Controls
Management via HTTPS and SSH protocols and features such as trusted host, ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, IP Source Guard provide layered network access controls.

System Monitoring
Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, SFP DDMI and ModBus / TCP.

Redundant Power
Dual redundant power inputs (primary and RPS) with overload current protection.

Alarm Output
Alarm relay output triggered by power failure of primary and/or redundant power and failure per port (DIP switch).

Jumbo Frame
Sends larger packets or Jumbo Frames (up to 10 K).

Wide Temperature
Hardened switch is rated for an operating temperature range of - 40 to 75 deg.C (-40 to 167 deg.F).

Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments.

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).

LED Indicators
LED indicators convey power, redundant power, alarm, SFP, PoE and network port status.

Grounding Point
Grounding point protects equipment from external electrical surges.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TI-PG1284i 12-Port Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch
  • RJ-45 to RS-232 Console Cable
  • CD-ROM (User's Guide)
  • Removable Terminal Block
  • Quick Installation Guide
