TRENDnet TI-PG541 5-Port Gigabit PoE+ DIN-Rail Switch, Version v1.0R
See all TRENDnet items

TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, Version v1.0R

SKU: TNTIPG541
Be the first to review this item

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TI-PG541 Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3ab
    IEEE 802.3z
    IEEE 802.3at
    IEEE 802.3af
    IEEE 802.3

  • Device Interface

    4x Gigabit PoE+ ports
    1x Gigabit port
    1x Gigabit SFP slot
    6-pin terminal block (removable)
    DIP switch
    DC power connector
    LED indicators
    Integrated DIN-Rail mount

  • Data Transfer Rate

    Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    Gigabit: 2000Mbps (full duplex)
    SX/LX: 2000Mbps (full duplex)

  • Performance

    Data RAM Buffer: 512KB
    Switching Fabric: 12Gbps
    MAC Address Table: 8 K entries
    Jumbo Frame: 10KB
    Forwarding rate: 8.9Mpps (64-byte packet size)

  • Special Functions

    Full PoE+ power to each PoE+ port
    Hardened components rated for extreme temperatures
    Dual redundant power inputs
    Alarm output triggered by power failure
    Auto-Negotiation
    Auto store and forward architecture
    Automatic address learning and address aging
    ESD 8 KV and Surge 6 KV protection

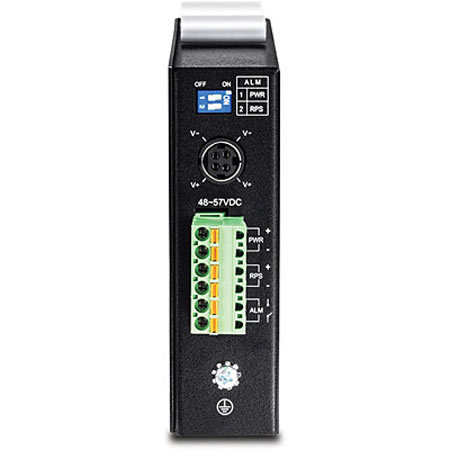

  • Terminal Block: Input

    PWR (Primary): 48-57VDC
    RPS (Redundant): 48-57VDC

  • Power Consumption

    Minimum: 10W (standby)
    Maximum: 130W
    PoE budget: 120W (Maximum)

  • PoE

    Up to 15.4W/port for PoE
    Up to 30W/port for PoE+
    PoE: pin 1, 2 for power + and pin 3, 6 for power - (mode A)

  • Housing

    IP30 metal case
    Integrated DIN-rail mount
    Grounding point
    8 KV ESD protection
    6 KV Surge protection

  • Operating Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Operating Humidity

    Maximum 95 % non-condensing

  • Certifications

    CE
    FCC
    Shock (IEC 60068-2-27)
    Freefall (IEC 60068-2-32)
    Vibration (IEC 60068-2-6)

  • Dimensions

    135 x 100 x 30mm / 5.31 x 3.94 x 1.18"

  • Weight

    500g / 17.64oz

  • UPC Code

    710931160246

About TRENDnet TI-PG541

TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot and a full PoE power budget of 120W. Dual redundant power inputs with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.

• 4x Gigabit PoE+ (802.3at) ports, 1x Gigabit port and 1x Gigabit SFP slot
• 120W full PoE+ power budget
• 12Gbps switching capacity
• Hardened IP30 rated metal switch with integrated DIN-Rail mount
• -40 to 70 deg.C (-40 to 158 deg.F) operating temperature range
• Dual redundant power inputs with overload current protection
• Alarm output triggered by power failure

Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120W PoE power budget.

Network Ports
5x Gigabit Ethernet ports (port 1-4 PoE/PoE+) and 1x SFP slot

Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware.

Switching Capacity
12Gbps switching capacity.

Redundant Power
Dual redundant power inputs with overload current protection.

Alarm Output
Alarm output triggered by power failure of primary and/or redundant power (defined by DIP switch).

Jumbo Frame
Sends larger packets or Jumbo Frames (up to 10KB), for increased performance.

Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 deg.C (-40 to 158 deg.F).

Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments.

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).

LED Indicators
LED indicators convey power, redundant power, alarm, SFP and network port status.

Grounding Point
Grounding point protects equipment from external electrical surges.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
  • Removable Terminal Block
  • DIN-Rail Kit
  • Quick Installation Guide
  • TRENDnet Lifetime Limited Warranty
