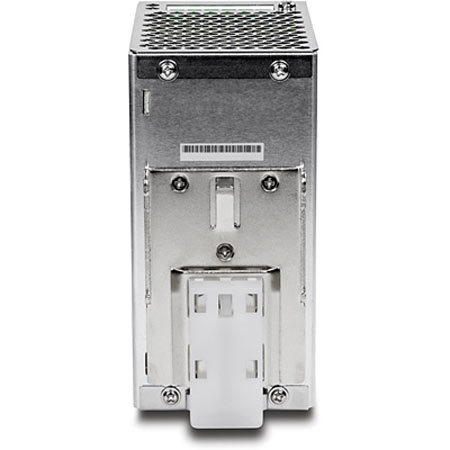

TRENDnet TI-S24048 240W Single Output Industrial DIN-Rail Power Supply, Version v1.0R

TRENDnet's high efficiency 240W Single Output Industrial DIN-Rail Power Supply, model TI-S24048 (Mean Well SDR-240-48), supplies up to 240W (48V, 5A) of power to industrial PoE equipment such as switches, network cameras and Wi-Fi access points. This power supply comes with active PFC, an integrated DIN-rail mount and overload current protection.

• Industrial power supply with integrated DIN-rail mount
• Provides up to 240W of power (48V, 5A)
• Built-in active PFC (PF > 0.93)
• Short circuit/overload/over voltage/over temperature protection
• High efficiency (94%) design
• UL 508 approved
• 100% full load burn-in test
• Extreme -25 to 70 deg.C (-13 to 158 deg.F) operating temperature range

240W Power
Provides up to 240W (48V, 5A) of power for PoE devices such as switches, network cameras and access points.

Active PFC
The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power.

Overload Protection
Overload/short circuit/over voltage/over temperature protection.

Full Load Test
This power supply undergoes a 100% full load burn-in test.

Passive Cooling
Cooling by free air convection.

DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount.

Extreme Temperatures
Rated for an operating temperature range of -25 to 70 deg.C (-13 to 158 deg.F).

Safety Certifications
Certified for UL 508 and TUV EN60950-1.

Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47 and GL approved.

Vibration Resistant
Rated for vibration (IEC 60068-2-6).

LED Indicator
LED indicator confirms power to the unit.
