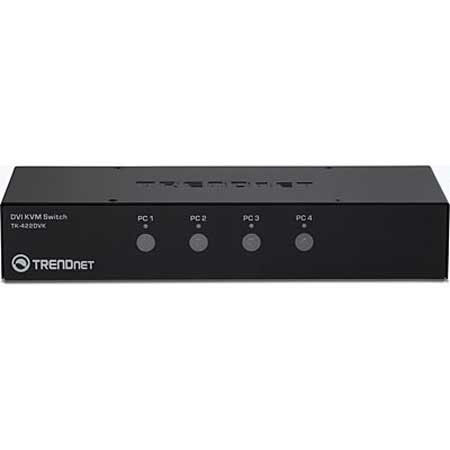

TRENDnet 4-Port DVI KVM Switch Kit
See all TRENDnet items

TRENDnet 4-Port DVI KVM Switch Kit, Includes 4x DVI-D KVM Cables, 4x USB 2.0 Type A to B Cables, 4x Audio Cables, Power Adapter (9 V DC, 1 A)

SKU: TNTK422DVK

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 4-Port DVI KVM Switch Kit Specifications

  • KVM Ports to Console

    Keyboard: USB
    Mouse: USB
    Monitor: DVI-I
    2-portUSB 2.0 hub
    Speaker jack: 3.5 mm
    Microphone jack: 3.5 mm

  • KVM Ports to Computer (up to 4)

    Keyboard/mouse: USB 2.0 type B
    Monitor: DVI-I
    Speaker jack: 3.5 mm
    Microphone jack: 3.5 mm

  • Computer Connections (up to 4)

    Keyboard/mouse: USB 2.0 type A
    Monitor: Single Link/ Dual Link DVI-I/DVI-D
    Speaker jack: 3.5 mm
    Microphone jack: 3.5 mm

  • Monitor Resolution

    Digital: 2560 x 1600 at 60 Hz
    Analog: 2048 x 1536 at 60 Hz

  • Switching Control

    Face panel touch buttons
    Keyboard hot key commands

  • Switching Notification

    Audio

  • Scanning Interval

    10 - 60 seconds (Hot key controls)

  • Special Features

    Support Dual Link DVI-D monitor
    Advance mouse and keyboard support
    All time DDC emulation
    Two bonus USB ports
    Metal housing

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Input Power

    100 - 240 V AC, 50/60 Hz, 0.4 A

  • Output Power

    9 V DC 1 A external power adapter

  • Power Consumption

    0.85 Watts (Max.)

  • Certifications

    CE
    FCC

  • Dimensions

    10 x 4.7 x 1.8" / 254 x 119.38 x 45.72mm

  • Weight

    2.1lbs / 0.95kg

  • UPC Code

    710931170047

About TRENDnet 4-Port DVI KVM Switch Kit

The TRENDnet 4-Port DVI KVM Switch Kit allows you to control four computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-422DVK supports advanced keyboard and mouse designs and offers two bonus USB share ports to connect storage devices or printers.

Computers
Control up to 4 computers.

HD+
Supports resolutions higher that 1080p HD (up to 2560 x 1600 pixels).

2-Way Audio
Full audio support maximizes work station productivity.

Console Connectors
Emulation Technology supports most advanced keyboard and mouse designs.

DVI-D Monitor
Designed to connect to a monitor's DVI port and supports a 60 Hz refresh rate.

Resolution Optimization
Adopts screen resolution from the connected device settings.

Computer Ports
Requires free USB and DVI ports from connected computer.

Housing
Rugged metal enclosure.

USB Share Ports
Two additional USB ports to connect storage drives and printers.

Hot Keys
Hot Key command shortcuts.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet 4-Port DVI KVM Switch
  • Power adapter (9 V DC 1 A)
  • 4x DVI-D KVM cables (1.8m/6')
  • 4x USB 2.0 Type A to B Cables (1.8/6')
  • 4x Audio Cables (1.8m/6')
  • Quick Installation Guide
  • TRENDnet 2 Year Limited Warranty
