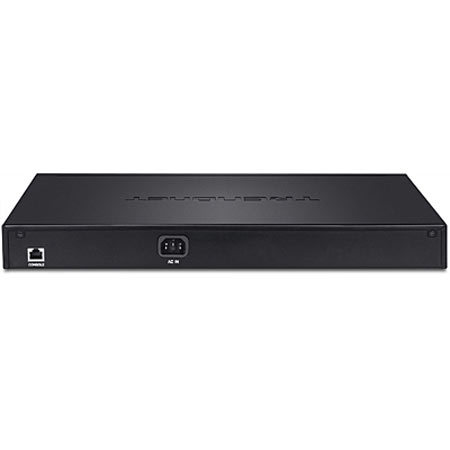

TRENDnet TL2-PG484 48-Port Gigabit PoE+ Managed Layer 2 Switch, Version v1.0R
See all TRENDnet items

TRENDnet TL2-PG484 48-Port Gigabit PoE+ Managed Layer 2 Switch with 4 Shared SFP Slots, Version v1.0R

SKU: TNTL2PG484

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TL2-PG484 Specifications

  • Standards

    IEEE 802.1d
    IEEE 802.1p
    IEEE 802.1Q
    IEEE 802.1s
    IEEE 802.1w
    IEEE 802.1X
    IEEE 802.1ab
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3z
    IEEE 802.3ab
    IEEE 802.3ad
    IEEE 802.3af (15.4 Watts / port)
    IEEE 802.3at (30 Watts / port)
    IEEE 802.3az

  • Device Interface

    24x Gigabit PoE+ ports
    24x Gigabit ports
    4x shared Gigabit SFP slots
    1x RJ-45 console port
    LED indicators
    Reset button

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    Gigabit Ethernet: 2000 Mbps (full duplex)

  • Performance

    Switch fabric: 96 Gbps
    RAM buffer: 1 MB
    MAC Address Table: 16K entries
    Jumbo Frames: 10 KB
    HOL Blocking Prevention
    Forwarding rate: 71.4 Mpps (64-byte packet size)

  • Management

    CLI (Console / Telnet / SSHv2)
    HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI
    SNMP v1, v2c, v3
    RMON v1
    Static Unicast MAC Address
    Enable / disable 802.3az Power Saving
    LLDP
    Virtual Cable Test
    IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

  • MIB

    MIB II RFC 1213
    Bridge MIB RFC 1493
    Bridge MIB Extension RFC 2674
    SNMPv2 MIB RFC 1907
    Ethernet Interface MIB RFC 1643
    Ethernet -like MIB RFC 2863
    Interface Group MIB RFC 2233
    MIB Traps Convention RFC 1215
    RMON MIB RFC 1757, RFC 2819
    802.1p MIB RFC 2674
    RADIUS Client Authentication MIB RFC 2618
    LLDP-MIB IEEE 802.1ab
    Ping MIB RFC 2925, RFC 4560

  • Spanning Tree

    IEEE 802.1D STP (Spanning Tree protocol)
    IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
    IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

  • Link Aggregation

    Static Link Aggregation
    802.3ad Dynamic LACP

  • Quality of Service (QoS)

    802.1p Class of Service (CoS)
    DSCP (Differentiated Services Code Point)
    Bandwidth Control per port
    Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

  • VLAN

    Multiple management VLAN assignment
    Asymmetric VLAN
    802.1Q Tagged VLAN
    Dynamic GVRP
    Up to 256 VLAN groups, ID Range 1-4094
    Private VLAN (Protected Ports)
    Voice VLAN (10 user defined OUIs)

  • Multicast

    IGMP Snooping v1, v2, v3
    Static Multicast Address
    Up to 256 multicast entries
    MLD Snooping v1, v2

  • Port Mirror

    RX, TX, or Both
    One to one
    Many to one

  • Access Control

    802.1X Port-Based Network Access Control, RADIUS, TACACS+
    Local Dial In User Authentication
    DHCP Snooping
    Loopback Detection
    Duplicated Address Detection
    Trusted Host
    Denial of Service (DoS)

  • ACL IPv4 L2-L4 & IPv6

    MAC Address
    VLAN ID
    Ether Type (IPv4 only)
    IP Protocol 0-255
    TCP / UDP Port 1-65535
    802.1p
    DSCP (IPv4 only)
    IPv6 Address (IPv6 only)

  • Management Utility

    Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server

  • Special Features

    PoE+ ports
    Power
    Input: 100 - 240 V AC, 50/60 Hz, internal power supply
    Consumption: 425.6 W (max.)

  • PoE

    PoE budget: 370 W
    802.3at: Up to 30 W per port (ports 1-24)
    Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
    PD auto classification
    Over current / short circuit protection

  • Smart Fan / Acoustics

    Quantity: 4
    Noise Level: 56 dB(A) (max.)

  • MTBF

    318350 hours

  • Operating Temperature

    0 to 45 deg. C / 32 to 113 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC
    UL

  • Dimensions

    440 x 430 x 44.45mm / 17.32 x 16.93 x 1.75"
    Rack mountable 1U height

  • Weight

    6.61kg / 14.57lbs

  • UPC Code

    710931140286

About TRENDnet TL2-PG484

TRENDnet's 48-Port Gigabit PoE+ Managed Layer 2 Switch with 4 shared SFP slots, model TL2-PG484, has 24 x Gigabit PoE+ ports, 24 x Gigabit ports and 4 x shared SFP slots, a console port, a PoE Power budget of 370 Watts and an advanced Layer 2 management feature set. This IPv6 ready switch offers traffic management, troubleshooting, access control and monitoring features.

• Command Line interface management supported
• SNMP (v1, v2c, v3), 802.1X, RSTP and MSTP support
• Supports Port Trunking, Mirroring, IGMP, Static and Dynamic VLAN and RMON
• Private / Voice VLAN, QoS and bandwidth controls
• 24 x Gigabit PoE+ ports
• 24 x Gigabit ports
• 4 x shared SFP slots and a console port
• 96 Gbps switching capacity
• Smart fans reduce energy consumption

Power over Ethernet
The 370 W PoE power budget supplies PoE+ (up to 30 W) to ports 1-24 along with PD (powered device) auto classification and over current/short circuit protection.

Smart Fans
Smart fans save energy and reduce operating noise by varying fan speed and usage based on real-time cooling needs.

Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.

Hardware Design
Provides 24 x Gigabit PoE+ ports, 24 x Gigabit ports, 4 x shared SFP slots, a console port and includes rack mount brackets.

Smart Fan
Smart fan saves energy by varying fan speed and use based on cooling needs

IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP and MSTP) and QoS queue scheduling.

Troubleshooting
Real time traffic comparison charts, error group charts and a convenient cable diagnostic test aid in rapid troubleshooting.

Access Controls
Features such as ACL, SSL, MAC / port filtering, Denial of Service controls, 802.1X, TACACS+ and RADIUS are compatible with layered network access controls.

Monitoring
RMON, SNMP, SNMP Trap and Port Mirroring support administrator monitoring solutions.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TL2-PG484 48-Port Gigabit PoE+ Managed Layer 2 Switch with 4 Shared SFP Slots
  • CD-ROM (Utility & User's Guide)
  • 6' Power Cord
  • 3.94 " RJ-45 to RS-232 Console Cable
  • Rack Mount Kit
  • Quick Installation Guide
  • TRENDnet Lifetime Limited Warranty
