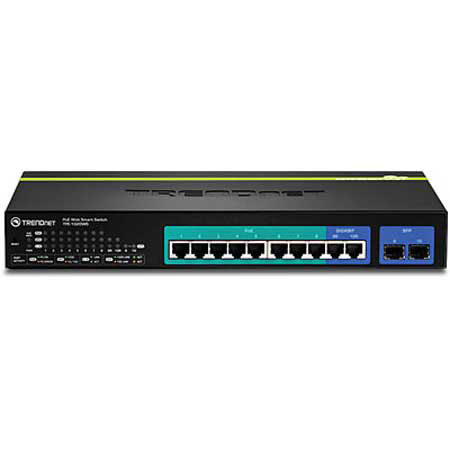

TRENDnet 10-Port Gigabit Web Smart 30w PoE+ Switch, 20 Gbps Switching Capacity
See all TRENDnet items

TRENDnet 10-Port Gigabit Web Smart 30w PoE+ Switch, 20 Gbps Switching Capacity, 8x Gigabit PoE+/2x Gigabit Ethernet/2x Shared SFP Slots

SKU: TNTPE1020WS

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 10-Port Gigabit Web Smart 30w PoE+ Switch, 20 Gbps Switching Capacity Specifications

  • Standards

    IEEE 802.1d
    IEEE 802.1p
    IEEE 802.1Q
    IEEE 802.1s
    IEEE 802.1w
    IEEE 802.1X
    IEEE 802.1ab
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3z
    IEEE 802.3ab
    IEEE 802.3ad
    IEEE 802.3af
    IEEE 802.3at
    IEEE 802.3az

  • Device Interface

    8x Gigabit PoE+ ports (ports 1-8)
    2 x Gigabit Ethernet ports (ports 9-10)2 x Shared SFP slots (shared with ports 9-10)
    LED indicators

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    Gigabit: 2000 Mbps (full duplex)

  • Ram Buffer

    8 Mbits

  • Switch Fabric

    20 Gbps

  • MAC Address Table

    16K entries

  • Jumbo Frames

    10 Kbytes

  • HOL Blocking Prevention

    Yes

  • Forwarding rate

    14.88 Mppst

  • Management

    HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
    SNMP v1, v2c, v3RMON v1
    Static Unicast MAC Address
    Enable/disable 802.3az Power Saving
    LLDP
    Virtual Cable Test
    IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

  • MIB

    MIB II RFC 1213
    Bridge MIB RFC 1493
    Bridge MIB Extension RFC 2674
    SNMPv2 MIB RFC 1907
    Ethernet Interface MIB RFC 1643
    Ethernet: like MIB RFC 2863
    Interface Group MIB RFC2233
    MIB Traps Convention RFC 1215
    RMON MIB RFC 1757, RFC 2819
    802.1p MIB RFC 2674
    RADIUS Client Authentication MIB RFC 2618
    LLDP-MIB IEEE 802.1ab
    Ping MIB RFC 2925, RFC 4560

  • Spanning Tree

    IEEE 802.1D STP (Spanning Tree protocol)
    IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
    IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

  • Link Aggregation

    Static Link Aggregation
    802.3ad Dynamic LACP

  • Quality of Service (QoS

    802.1p Class of Service (CoS)
    DSCP (Differentiated Services Code Point)Bandwidth Control per port
    Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

  • VLAN

    Multiple management VLAN assignment
    Asymmetric VLAN
    802.1Q Tagged VLAN
    Dynamic GVRP
    Up to 256 VLAN groups, ID Range 1-4094
    Private VLAN (Protected Ports)Voice VLAN (10 user defined OUIs)

  • Multicast

    IGMP Snooping v1, v2, v3 (per VLAN)
    Static Multicast Address
    Up to 256 multicast entries

  • Port Mirror

    RX, TX or Both
    One to one
    Many to one

  • Security

    802.1X Port-Based Network Access Control, RADIUS, TACACS+
    Local Dial In User Authentication
    DHCP Snooping (per VLAN)
    Loopback Detection
    Duplicated Address Detection
    Trusted Host
    Denial of Service (DoS)

  • ACL IPv4 L2-L4 & IPv6

    MAC Address
    VLAN IDEther Type (IPv4 only)
    IP Protocol 0-255TCP/UDP Port 1-65535
    802.1p
    DSCP (IPv4 only)
    IPv6 Address (IPv6 only)

  • Functions

    PoE+
    Fanless design
    IPv6802.3az power saving
    Rack mountable

  • Input Power

    100 - 240 V AC, 50/60 Hz, internal power supply

  • Power Consumption

    Max.: 92.3 Watts
    PoE budget: 75 Watts

  • Operating Temperature

    0 - 45 deg. C / 32 - 113 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certification

    CE, FCC

  • Dimensions

    13 x 7.2 x 1.75" / 330.2 x 182.88 x 44.45mm

  • Weight

    4.1lbs / 1.85kg

  • UPC Code

    710931160079

About TRENDnet 10-Port Gigabit Web Smart 30w PoE+ Switch, 20 Gbps Switching Capacity

The TRENDnet 10-Port Gigabit Web Smart 30w PoE+ Switch delivers a 20 Gbps switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet and monitoring features.

Hardware Design
Fanless rack mountable housing features eight Gigabit PoE+ ports (automatically supplies PoE+ (30 Watts) and PoE (15 Watts) and two Gigabit Ethernet uplink ports shared with two SFP slots

IPv6 Ready
This switch supports IPv6 configuration and neighbor IPv6 network support.

Traffic Management
A broad range of network configurations are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS) and QoS queue scheduling

Troubleshooting
Real time traffic comparison charts, error group charts and a convenient cable diagnostic test aides in rapid troubleshooting.

Security
Features such as ACL, SSL, MAC/port filtering, 802.1x, TACACS+ and RADIUS are compatible with layered security controls.

Monitoring
RMON, SNMP, SNMP Trap and Port Mirroring support administrator monitoring solutions.

Energy Savings
Up to 70% energy saving GREENnet technology.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet 10-Port Gigabit Web Smart 30w PoE+ Switch
  • Power cord (1.8 m/6 ft.)
  • Rack Mount Hardware
  • CD-ROM (Utility & User's Guide)
  • Multi Language Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty
