TRENDnet TPE-104GS Gigabit PoE Splitter, Version v2.0R
See all TRENDnet items

TRENDnet TPE-104GS Gigabit PoE Splitter, Version v2.0R

SKU: TNTPE104GS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TPE-104GS Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3af

  • Device Interface

    1x Gigabit data/power in port
    1x Gigabit data out port
    1x Power out port
    LED indicators
    Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    Gigabit: 2000 Mbps (full duplex)

  • Jumper Cable

    2.0 to 2.0 mm
    2.0 to 2.5 mm

  • Power

    PoE network cable input: 48 V DC, 0.38 A
    Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A)
    Consumption: 0.3 Watts (max.)

  • Operating Temperature

    0 to 45 deg. C / 32 to 113 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    70 x 45 x 25mm / 2.76 x 1.77 x 0.98"

  • Weight

    60g / 2.12oz

  • UPC Code

    710931160178

About TRENDnet TPE-104GS

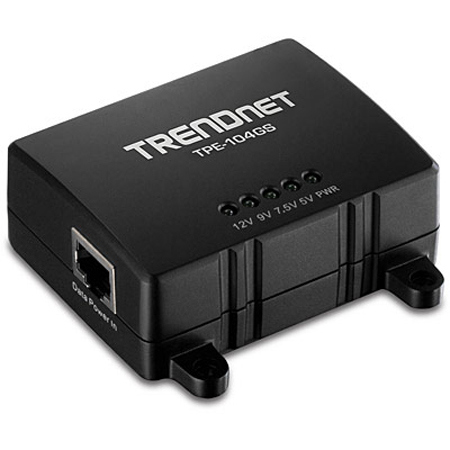

TRENDnet's Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V or 12 V in order to match non-PoE device power requirements. The included 2 and 2.5 mm jumper cables increase power pin device compatibility.

• Install a non-PoE device in a remote location
• Splits a Gigabit PoE signal into separate power and Gigabit data sources
• Set the output power to either 5 V, 7.5 V, 9 V or 12 V
• Use this compact device with TRENDnet PoE switches or injectors
• Save on installation and equipment costs

PoE
Compatible with PoE (802.3af ) network connections

Gigabit Ethernet
Supports Gigabit network speeds

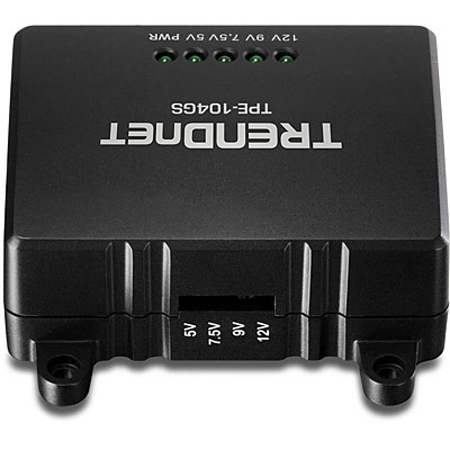

Adjustable Dip Switch
A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V or 12 V in order to match non-PoE device power requirements

Jumper Cables
The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device

No Power Adapter
The TPE-104GS is powered by the PoE connection

Mounting
Built-in mounting points increase installation flexibility

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TPE-104GS Gigabit PoE Splitter
  • 2x Jumper Cables (2.0 to 2.0 mm&2.0 to 2.5mm)
  • Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty
