TRENDnet TPE-3016L 16-Port 10/100 Mbps 220W AV PoE+ Switch, Version v1.0R
See all TRENDnet items

TRENDnet TPE-3016L 16-Port 10/100 Mbps 220W AV PoE+ Switch, Version v1.0R

SKU: TNTPE3016L
Be the first to review this item

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TPE-3016L Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3af
    IEEE 802.3at

  • Device Interface

    16x Gigabit Ethernet ports
    LED indicators
    4-Digit Seven-Segment LED Display

  • Data Transfer Rate

    Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
    Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
    Gigabit Ethernet: 2000 Mbps (full-duplex)

  • Performance

    Broadcast storm control
    Data RAM Buffer: 400 KB
    Switch Fabric: 32 Gbps
    MAC Address Table: 4 K entries
    Forwarding rate: 23.8 Mpps (64-byte packet size)

  • Power

    Input: 110 - 240 V AC, 50/60 Hz
    Consumption: 7 Watts (Max. without PD)

  • PoE

    PoE overall budget: 220 Watts
    PoE budget per port: 30 Watts
    Pin 3,6 for power+ and pin 1,2 for power- (mode A)
    Over current protection
    Short circuit protection

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC
    UL

  • Dimensions

    440 x 280 x 44mm / 17.32 x 11.02 x 1.73"

  • Weight

    3.5kg / 7.72lbs

  • UPC Code

    710931160512

About TRENDnet TPE-3016L

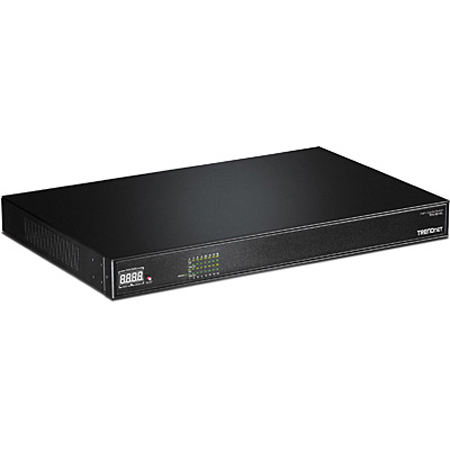

TRENDnet's 16 Port Gigabit Ethernet 220 Watt AV PoE+ Switch, model TPE-3016L, offers 16 x Gigabit PoE+ ports with a total Power budget of 220 Watts. View total power, available power and power-per-port with a convenient front-panel 4-digit seven-segment LED display. Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

• 16 x Gigabit PoE+ ports
• 220 Watt power budget
• 32 Gbps switching capacity
• Rack mount brackets included
• Fanless design reduces energy consumption and operating noise
• Rear panel ports for easy network integration with your AV rack
• Convenient front-panel 4-digit seven-segment LED display

PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 Watts) and PoE+ (30 Watts) cameras (or other PoE devices) and supplies the required amount of power automatically.

PoE Power
A 220 Watt PoE power budget supplies up to sixteen Power over Ethernet devices with PoE power.

Gigabit Networking
All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

Application 1: Restaurants and Bars
In most business environment's, TRENDnet's AV switches will serve a dual purpose. The switches allow business owners to simultaneously manage AV equipment, IP surveillance cameras and wireless access points.

Application 2: Homes with Multi-Room AV
TRENDnet AV Series Switches easily expands a home's existing wired network for high bandwidth devices, especially those devices dedicated to multimedia sharing and home security.

Application 3: NVR and AV Switches Solution
With both sets of ports on the back, TRENDnet AV Series Switches are ideal for use with TRENDnet NVRs. The AV switches are equipped to provide all the power needed to run several TRENDnet surveillance cameras simultaneously.

Hardware Design
Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

7-Segment LED Display
View total power, available power and power-per-port

Power Budget
Up to 220 Watts PoE+

Rack Mountable
Standard 19" 1U design (brackets included )

Fanless
Fanless design reduces energy consumption and operating noise.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TPE-3016L 16-Port 10/100 Mbps 220 Watt AV PoE+ Switch
  • Rack Mount Kit
  • Power Cord
  • Quick Installation Guide
  • TRENDnet Lifetime Limited Warranty
