TRENDnet TPE-E100 Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3af
    IEEE 802.3at

  • Device Interface

    1x Gigabit PoE/PoE+ in port
    1x Gigabit PoE/PoE+ out port
    1x Power port (optional power adapter is not included)
    LED indicators
    Installation mounting points

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    Gigabit: 2000 Mbps (full duplex)

  • Performance

    SRAM buffer: 96 KB
    MAC Address Table: 2 K
    Maximum packet length up to 1.5 KB

  • Special Functions

    Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 200 meters (656')
    Cascade up to 2 repeaters

  • Power

    Powered by PoE/PoE+ Device
    Consumption: 2 Watts (max.)

  • Operating Temperature

    0 to 45 deg. C / 32 to 113 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    75 x 100 x 22mm / 2.95 x 3.94 x 0.87"

  • Weight

    228g / 8.04oz

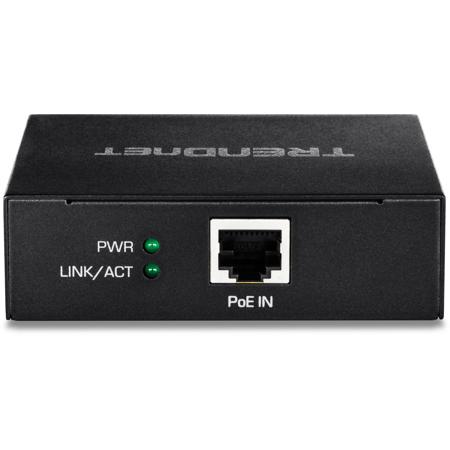

About TRENDnet TPE-E100

TRENDnet's Gigabit PoE+ Repeater, model TPE-E100, extends a Gigabit PoE/PoE+ network connection to a remote location. It auto-detects a PoE (15.4 Watts) or PoE+ (30 Watts) signal and extends it an additional 100 meters (328 ft.) for a total distance of up to 200 meters (656 ft.) from the PoE device. Daisy chain two TPE-E100s for a total PoE network extension of 300 m (980 ft.). Handy mounting points and no external power adapter facilitate remote installations.

• Extends 100 meters for a total distance of up to 200 meters (656 ft.)
• Daisy chain two TPE-E100s for a total PoE+ network extension of 300 m (980 ft.)
• Plug and play installation
• No external power required
• Wall mountable
• LED indicators
• Rugged metal housing

Extension Distance
Extends a PoE/PoE+ network connection an additional 100 (328 ft.) meters for a total distance of up to 200 meters (656 ft.) from the PoE device

PoE/PoE+
Auto detects a 15.4 Watt PoE (IEEE 802.3af class 1-4) or 30 Watt PoE+ (IEEE 802.3at) network connection

Gigabit Ports
Gigabit ports extend a high performance wired connection

Daisy Chain
Daisy chain twoTPE-E100s for a total PoE network extension of 300 m (980 ft.)

Plug and Play
Plug and play PoE/PoE+ network cables

PoE Powered
No external power required-saves installation time and cost

Mounting
Wall mounting points for remote installations

LED indicators
LED indicators confirm PoE and network connectivity

Housing
Rugged metal enclosure

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TPE-E100 Gigabit PoE+ Repeater
  • Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty
