TRENDnet TPE-S50 Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af (15.4 Watts/port)
    IEEE 802.3az

  • Device Interface

    4x 10/100 Mbps PoE ports
    1x 10/100 Mbps port
    LED indicators

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

  • Performance

    Data RAM Buffer: 56 KB
    Switch Fabric: 1 Gbps
    MAC Address Table: 1 K entries
    Forwarding rate: 0.744 Mpps (64-byte packet size)

  • Special Features

    GREENnet energy saving technology

  • Power

    Input: 110 - 240 V AC, 50/60 Hz, 0.75 A
    Output: 48 V DC, 0.75 A
    Consumption: 36 Watts (Max.)

  • PoE

    PoE budget: 31 Watts
    Pin 4, 5 for power+ and pin 7, 8 for power- (mode B)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    141 x 95 x 30mm / 5.55 x 3.74 x 1.18"

  • Weight

    337g / 11.89oz

  • UPC Code

    710931160413

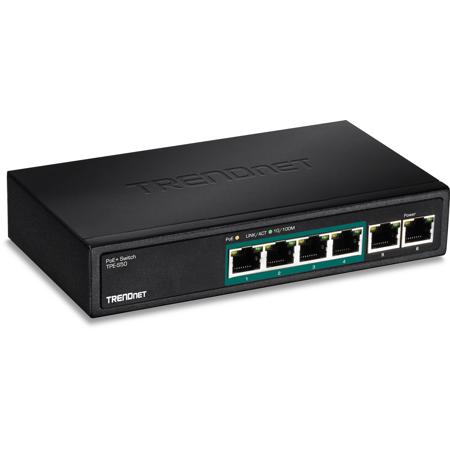

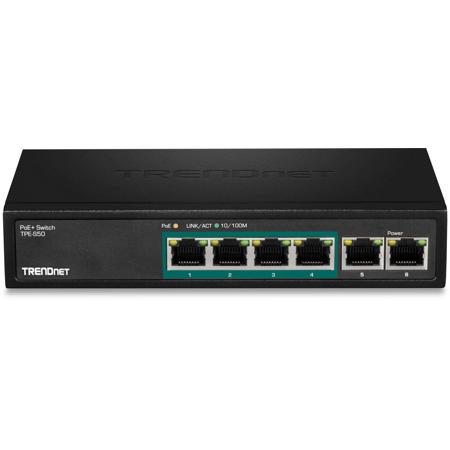

About TRENDnet TPE-S50

The 5-Port 10/100 Mbps PoE Switch, model TPE-S50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. The TPE-S50 offers four 10/100 Mbps PoE Ethernet ports and one 10/100 Mbps Ethernet port. It supports PoE (802.3af) devices with a 31 Watt power budget. Plug and Play this sturdy metal switch for reliable high speed PoE networking.

• 4 x 10/100 Mbps PoE ports and 1 x 10/100 Mbps port
• 31 W total power budget
• 1 Gbps switching capacity
• Sturdy metal switch
• Plug and Play installation
• Use with a TRENDnet PoE Splitter to network and power non-PoE devices

PoE Camera Flexibility
Automatically supply up to 15.4 Watts to standard 802.3af PoE devices.

PoE Power
A 31 Watt PoE power budget supplies up to four Power over Ethernet devices with PoE power.

Ethernet Networking
Five 10/100 Mbps Ethernet ports produce a 1 Gbps switching capacity to support edge network installations.

PoE
Supplies up to 15.4 Watts of PoE power per port with a 31 Watt power budget

Ports
Four 10/100 Mbps PoE ports and one 10/100 Mbps port

Switching Capacity
1 Gbps switching capacity

Housing
Rugged metal enclosure

LED Indicators
LED indicators convey port status

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TPE-S50 5-Port 10/100Mbps PoE Switch
  • Power Adapter (48 V DC&0.75 A)
  • Quick Installation Guide
  • TRENDnet Lifetime Limited Warranty
