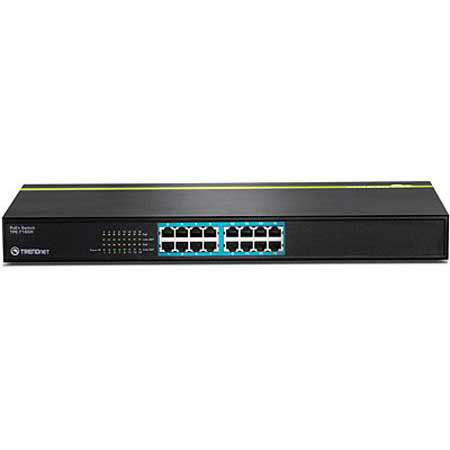

TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch
See all TRENDnet items

TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch

SKU: TNTPET160H

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch Specifications

  • Standards

    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af (15.4 Watts/port)
    IEEE 802.3at (30 Watts/port)
    IEEE 802.3az

  • Device Interface

    16 x 10/100 Mbps PoE/PoE+ Ports

  • LED indicators

    Power switch

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

  • Data Ram Buffer

    1.25mb

  • Switch Fabric

    3.2 Gbps

  • MAC Address Table

    4K entries

  • Forwarding rate

    2.38 Mpps (64-byte packet size)

  • Input Power

    90-260 V AC, 50/60 Hz, 1 A

  • Output Power

    48 V DC, 50/60 Hz, 0.6 A

  • Power Consumption

    Max.: 260 Watts
    PoE budget: 250 Watts

  • Internal Power Supply

    Yes

  • Operating Temperature

    0 - 40 deg. C / 32 - 104 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certification

    CE, FCC

  • Dimensions

    17.32 x 8.66 x 1.73" / 439.92 x 219.96 x 43.94mm

  • Weight

    6.6lbs / 2.99kg

  • UPC Code

    710931160130

About TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch

The TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supplies up to 30 Watts of power per port with a 250 Watt power budget. A convenient on/off button is located on the back of the switch.

TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch Features

  • Up to 30 Watts per port with a 250 Watt total power budget
  • 3.2 Gbps switching capacity
  • Use with TRENDnet's PoE Splitter to network and power non-PoE devices

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Up to 30 Watts per port
  • 3.2 Gbps switching capacity
  • Use with TRENDnet's PoE Splitter to network & power non-PoE devices

What's in the box:

  • TRENDnet 16-Port 30w 10/100 Mbps PoE+ Switch
  • Rack Mount Kit
  • Power Cord
  • Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty
