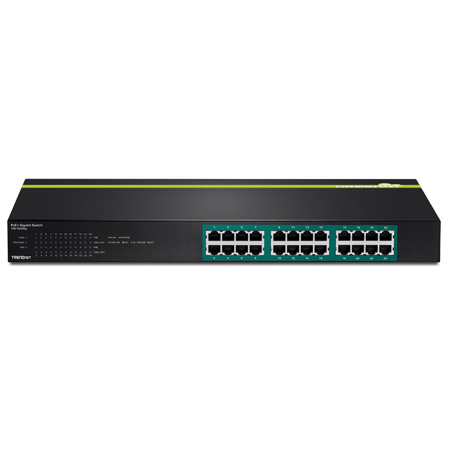

TRENDnet TPE-TG240G 24-Port Gigabit PoE+ Switch, Version v1.0R
See all TRENDnet items

TRENDnet TPE-TG240G 24-Port Gigabit PoE+ Switch, Version v1.0R

SKU: TNTPETG240G

This item is no longer available.

Recommended Alternatives

TRENDnet TPE-TG44G: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TPE-TG240G Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3af
    IEEE 802.3at
    IEEE 802.3az

  • Device Interface

    24x Gigabit PoE/PoE+ ports
    LED indicators

  • Data Transfer Rate

    Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    Gigabit: 2000 Mbps (full duplex)

  • Performance

    Data RAM Buffer: 512 KB
    Switch Fabric: 48 Gbps
    MAC Address Table: 8 K entries
    Forwarding rate: 35.7 Mpps (64-byte packet size)
    Jumbo Frame: 10 KB

  • Power

    Input: 110-240 V AC, 50/60 Hz, 0.75 A
    Consumption: 36 Watts (Max. without PD)

  • PoE

    PoE budget: 370 Watts
    Pin 3,6 for power+ and pin 1,2 for power- (mode A)
    Over current protection
    Circuit sorting protection

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 90% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    440 x 250 x 44mm / 17.32 x 9.84 x 1.73"

  • Weight

    3.6kg / 7.94lbs

  • UPC Code

    710931160291

About TRENDnet TPE-TG240G

TRENDnet's 24-Port Gigabit PoE+ Switch, model TPE-TG240g, offers 24 x Gigabit PoE+ ports, a 48 Gbps switching capacity and a PoE power budget of 370 Watts. This rugged metal switch comes with a rack mount kit.

• 24 x Gigabit PoE+ ports
• 370 Watts total power budget
• 48 Gbps switching capacity
• Sturdy metal switch
• Rack mount brackets included

PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 W) and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.

Full PoE Power
The large 370 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.

Gigabit Networking
All Gigabit ports produce a 48 Gbps switching capacity and support Jumbo Frames up to 10 KB.

PoE+
Supplies up to 30 Watts of PoE power per port with a 370 Watt power budget

Ports
24 x Gigabit PoE+ ports

Switching Capacity
48 Gbps switching capacity

Jumbo Frame
Sends larger packets or Jumbo Frames (up to 10 KB) for increased performance

Rack Mountable
Rack mountable metal enclosure with included mounting kit

LED Indicators
LED indicators convey port status

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TPE-TG240G 24-Port Gigabit PoE+ Switch
  • Rack Mount Kit
  • Power Cord
  • Quick Installation Guide
  • TRENDnet Lifetime Limited Warranty
